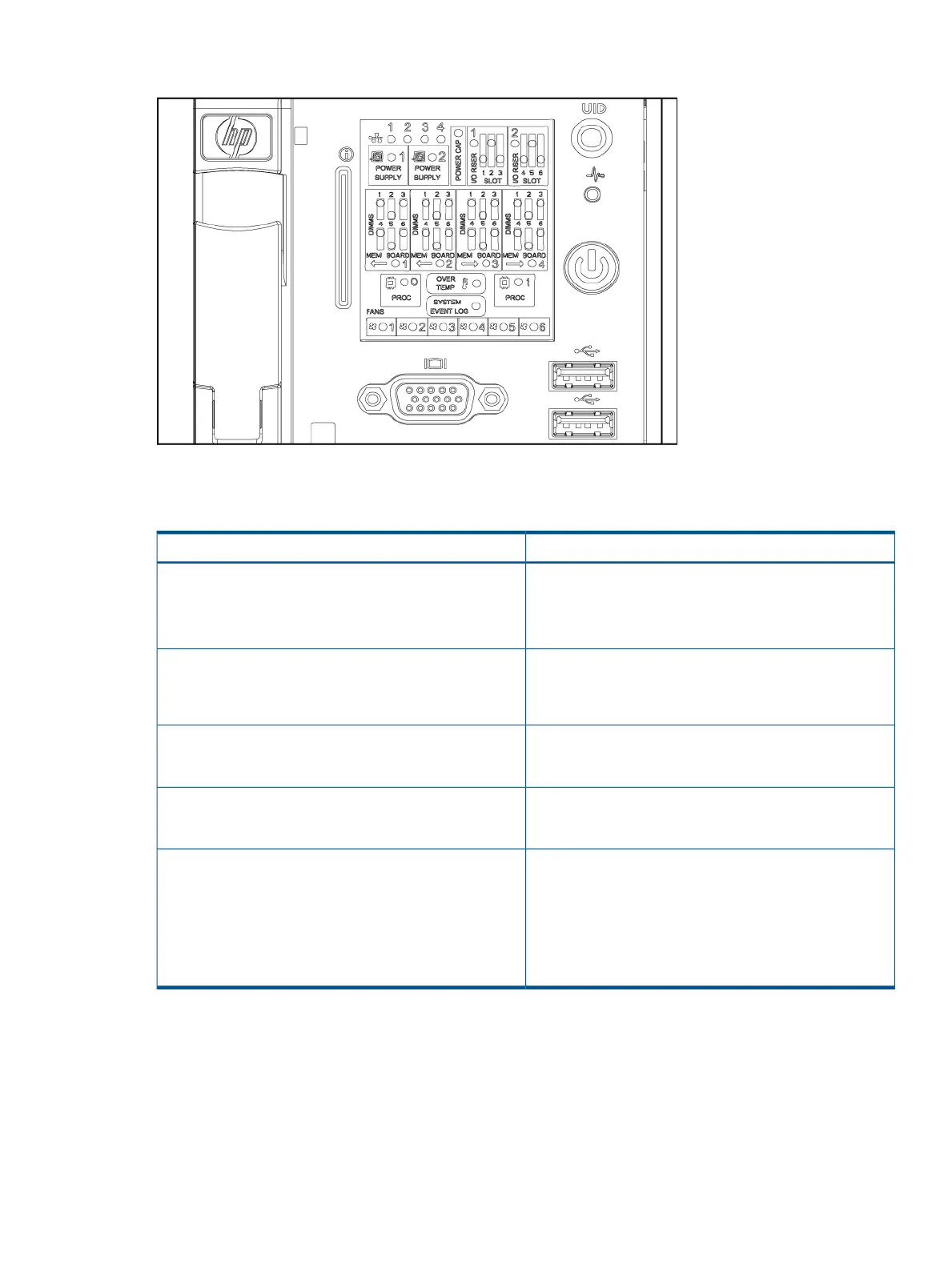

Figure 10 System Insight Display LEDs
Table 14 SID LED states
StateLED
NICs
• Off = No link to network
• Flashing green = Network link and activity
• Green = Network link
NOTE: This LED is not used. Power capping operation
can be observed through iLO 3. For more information, see
the HP Integrity iLO 3 Operations Guide.
Power Capping
Over Temp
• Off = Server temperature good
• Amber = Server temperature too high, attention required
System Event Log
• Green = Normal
• Red = System fatal
Component LEDs
• Off = Component health is assumed good
• Amber = Component health last known to be bad
NOTE: The Power Supply LED is lit only when a failure
or fault is detected in a power supply. Loss of DC power
to a power supply generates a SEL entry, but does not
result in the Power Supply LED illuminating.
The System Insight Display improves serviceability by enabling you to look in a single location for
the LEDs that provide failing CRU locating/mapping information. These amber LEDs are only lit
when a failure occurs; otherwise, they are off. The System Insight Display is located on the front
panel of the server. A diagnostic LED exists for each CRU in the system, including all DIMMs.
Figure 10 shows the System Insight Display LEDs.
Troubleshooting tools 67
