6.6 VGA MONITOR CONNECTOR
The 865G-based system includes a standard VGA connector (Figure 6-3) for attaching an analog
monitor:
9

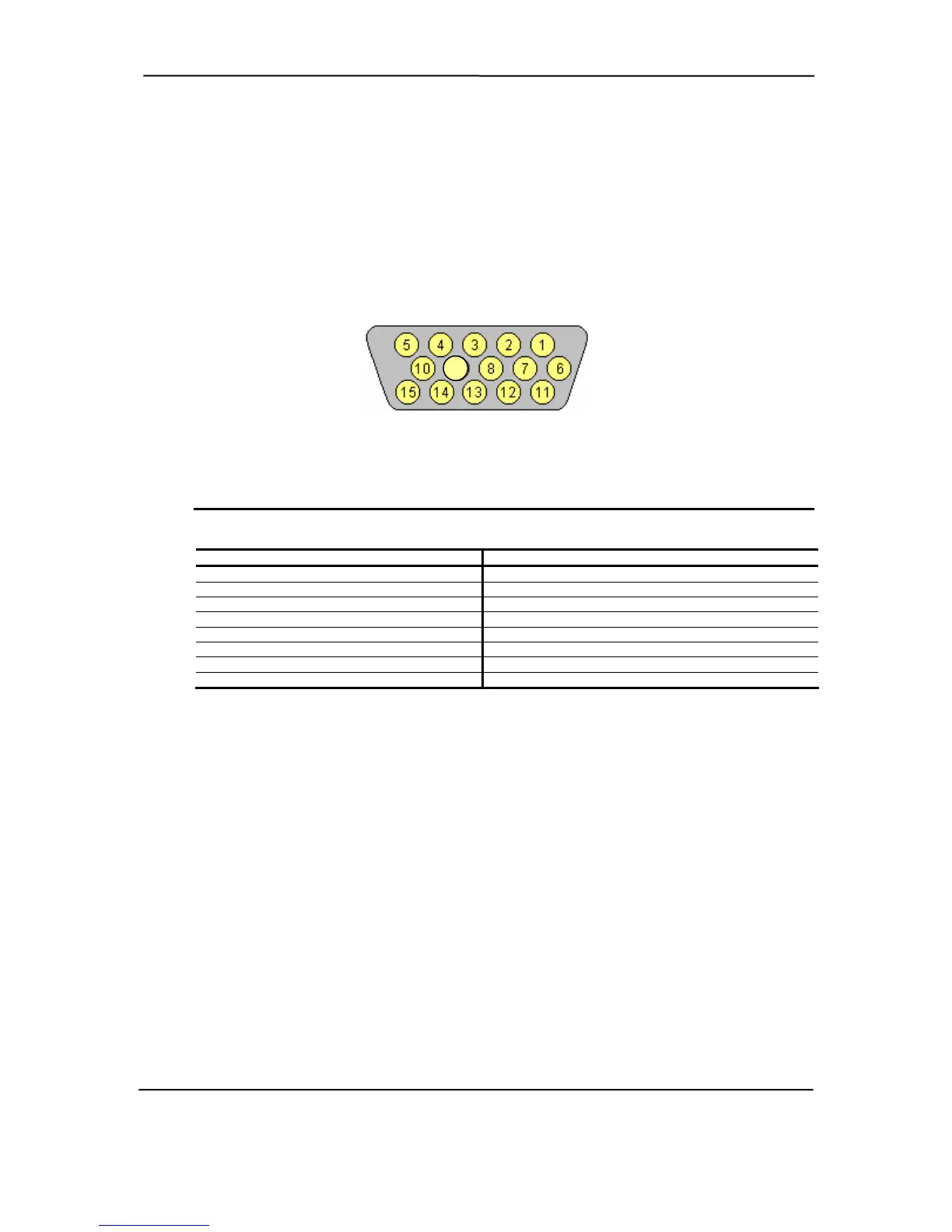

Figure 6-3. VGA Monitor Connector, (Female DB-15, as viewed from rear).
Table 6-3. DB-15 Monitor Connector Pinout
Table 6-3.
DB-15 Monitor Connector Pinout
Pin Signal Description Pin Signal Description
1 R Red Analog 9 PWR +5 VDC (fused) [1]
2 G Blue Analog 10 GND Ground
3 B Green Analog 11 NC Not Connected
4 NC Not Connected 12 SDA DDC2-B Data
5 GND Ground 13 HSync Horizontal Sync
6 R GND Red Analog Ground 14 VSync Vertical Sync
7 G GND Blue Analog Ground 15 SCL DDC2-B Clock
8 B GND Green Analog Ground -- -- --
NOTES:
[1] Fuse automatically resets when excessive load is removed.
hp compaq d330 and d530 Series of Personal Computers
Featuring the Intel Pentium 4 Processor
First Edition - June 2003
6-7
