2.3.3 BOARD LAYOUTS

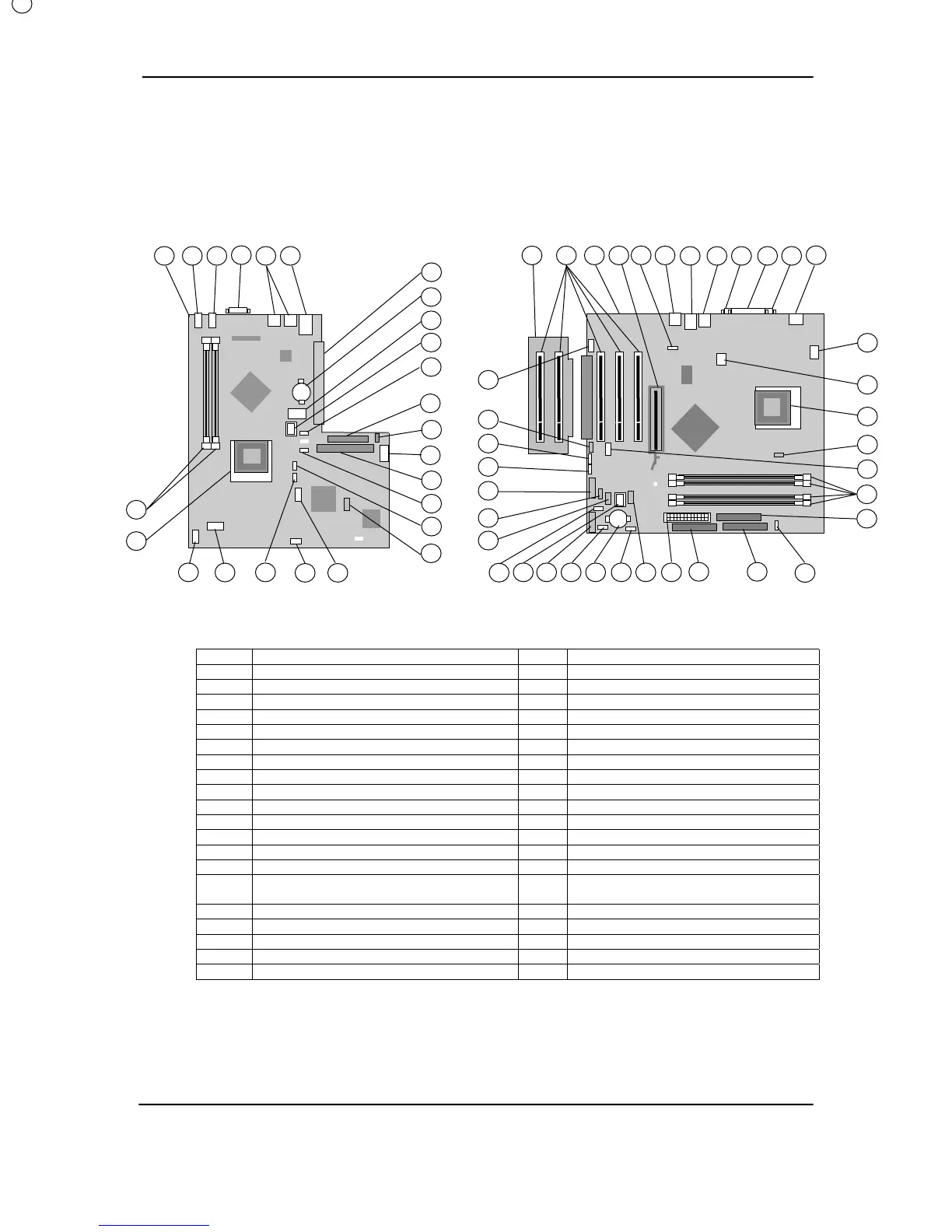

Figure 2-10 shows the system and expansion boards for these systems.
13
5
2
22
21
23
1
11
15
14
18
16
19
3
9
24
8
10
25
4
26
27
30
28
29
31
32
33
35
37
36
38
39
20
40
34
7
6
12
10
25
2
35
22
21
26
5
3
18
11
19
39
32
26
33
29
30
23
20
40
34
17
System Board [3]
PCA# 323091-001
PCI Bus Expansion Board [2]
SP#252609 -001
System Board [1]
PCA# 332935-001
Item
Description
Item Description
1 PCI bus expansion board 21 DIMM sockets
2 PCI slot connector 22 Secondary IDE connector
3 System board 23 Multibay connector
4 AGP slot connector 24 Diskette drive connector
5 Chassis fan connector 25 Primary IDE connector
6 Audio input connector 26 Power supply connector
7 Audio output connector 27 Secondary serial ATA connector
8 Audio input (top), output, Microphone input 28 Hood lock connector
9 NIC connector (top), USB connectors (2) 29 Battery
10 USB connectors (2) 30 Hood sense connector
11 VGA monitor connector 31 Power button/LED, HD LED connector
12 NIC connector 32 CMOS clear switch
13 Parallel connector 33 Clear password jumper
14 Serial port A connector 34 Primary serial ATA connector
15 PS/2 Mouse (top), PS/2 keyboard
connectors
35 Security module header
16 Serial port (B) header connector 36 Speaker connector
17 Processor power connector 37 Auxiliary input connector
18 Processor socket 38 CD audio input connector
19 CPU fan connector 39 Front panel audio connector
20 Front panel USB port connector 40 Boot block jumper
NOTES:
[1] Used in USDT only.
[2] Used in CMT only.
[3] Used in ST, SFF, DT, MT, CMT.
Figure 2-10. System Board Layouts
hp compaq d330 and d530 Series Personal Computers
Featuring the Intel Pentium 4 Processor
First Edition - June 2003
2-13
