Technical Reference Guide
2.3.2.3 Small Form Factor Chassis
The chassis layout for the Small Form Factor (SFF) used for the d530 models is shown in Figure
2-6. Service features include:
♦ Tilting drive cage assembly for easy access to processor and memory sockets
♦ Two full-height,, half-length PCI slots
♦ One low-profile AGP 8X slot
Upper Drive Bays
(Tilting Assembly)
Processor Fan
PCI Conn. 2 (Slot 2)
PCI Conn. 1 (Slot 1)
Slots On Backplane,
Rear View
Speaker Assembly
Hood Lock Solenoid
(Optional)
Card Cage
Assembly
System Board
Power Supply
Back
Front

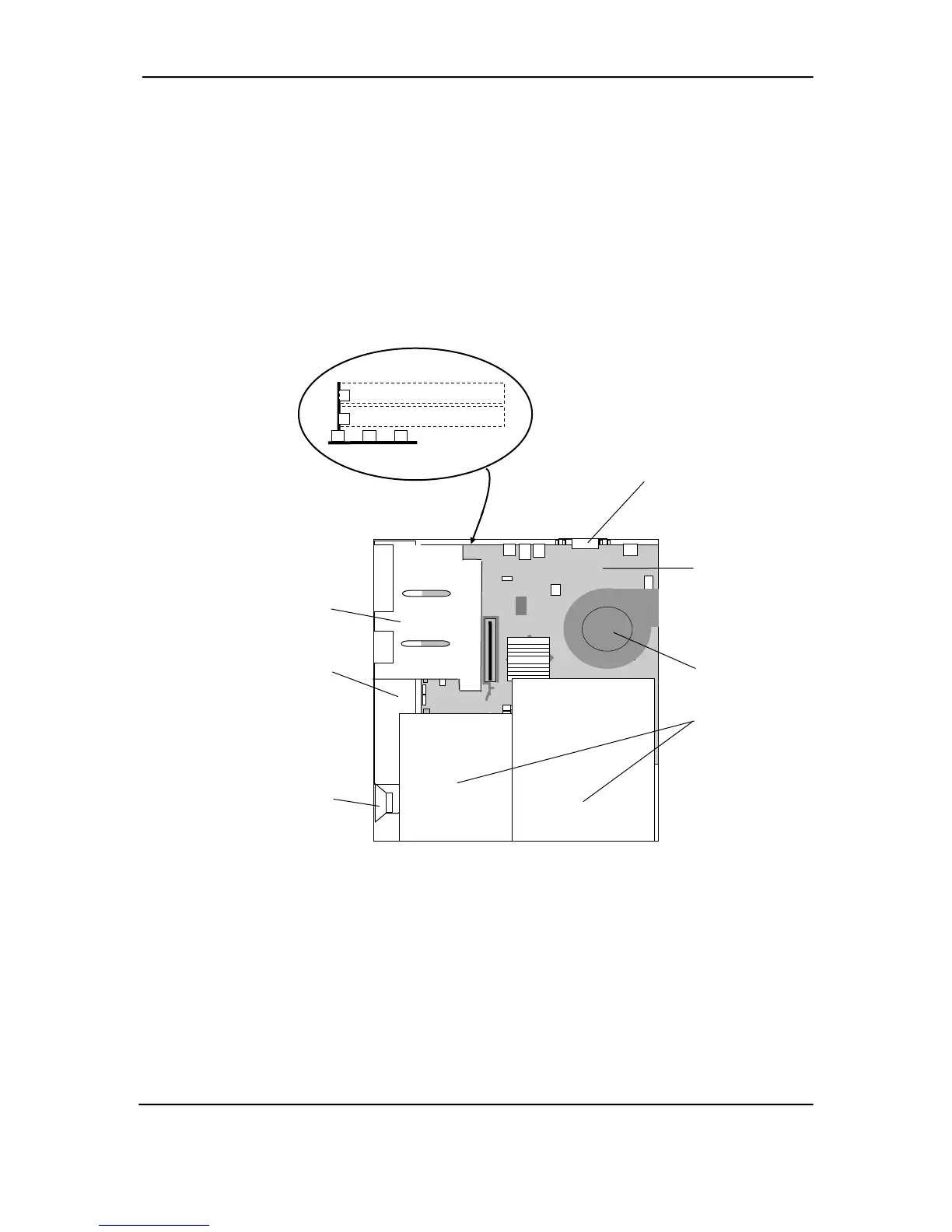

Figure 2-6. Small Form Factor Chassis Layout, Top View
hp compaq d330 and d530 Series Personal Computers
Featuring the Intel Pentium 4 Processor
First Edition - June 2003
2-9
