Technical Reference Guide
4.3.2 AGP CONNECTOR
B94
A94
B46 B41
A46
A41
B1
A1
A66
B66

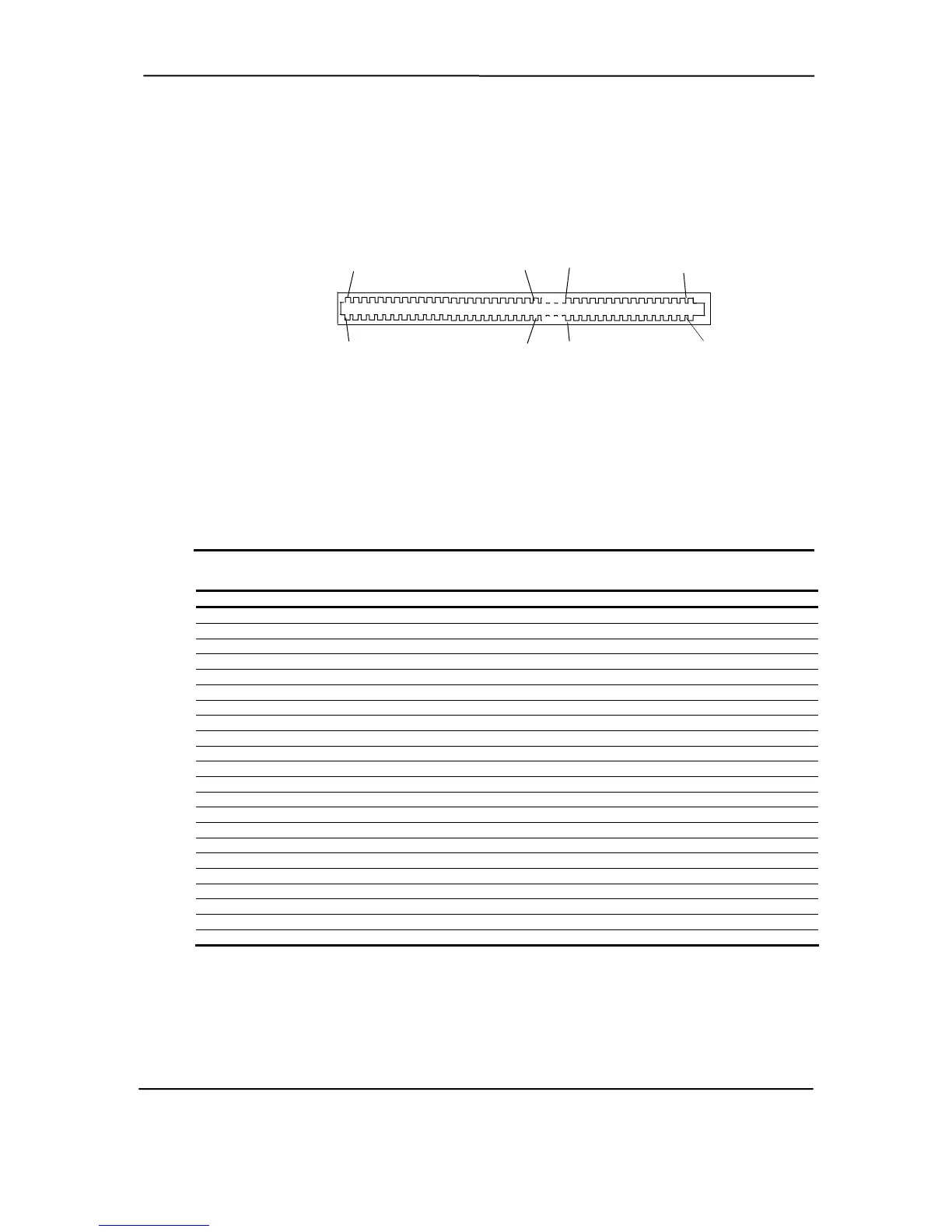

Figure 4-9. 1.5-volt AGP Bus Connector
Table 4-5. AGP Bus Connector Pinout
Table 4-5.
AGP Bus Connector Pinout
Pin A Signal B Signal Pin A Signal B Signal Pin A Signal B Signal
01 +12 VDC OVRCNT- 23 GND GND 45 VDD3 VDD3
02 Type Det- VDD 24 NC VDD3 Aux 46 TRDY- DEVSEL-
03 NC VDD 25 VDD3 VDD3 47 STOP- VDDQ
04 USBN USBP 26 PAD30 PAD31 48 PME- PERR-
05 GND GND 27 PAD28 PAD29 49 GND GND
06 INTA- INTB- 28 VDD3 VDD3 50 PAR SERR-
07 RESET CLK 29 PAD26 PAD27 51 PAD15 CBE1-
08 GNT- REQ- 30 PAD24 PAD25 52 VDDQ VDDQ
09 VDD3 VDD3 31 GND GND 53 PAD13 PAD14
10 ST1 ST0 32 AD_STB1- 1 AD_STB 54 PAD11 PAD12
11 NC ST2 33 CBE3- PAD23 55 GND GND
12 PIPE- RBF- 34 VDDQ VDDQ 56 PAD09 PAD10
13 GND GND 35 PAD22 PAD21 57 CBE0- PAD08
14 WBF- NC 36 PAD20 PAD19 58 VDDQ VDDQ
15 SBA1 SBA0 37 GND GND 59 AD_STB0- 0 AD_STB
16 VDD3 VDD3 38 PAD18 PAD17 60 PAD06 PAD07
17 SBA3 SBA2 39 PAD16 CBE2- 61 GND GND
18 SB_STB- B SB_ST 40 VDDQ VDDQ 62 PAD04 PAD05
19 GND GND 41 FRAME- IRDY- 63 PAD02 PAD03
20 SBA5 SBA4 42 NC VDD3 Aux 64 VDDQ VDDQ
21 SBA7 6 DBA 43 GND GND 65 PAD00 PAD01
22 NC NC 44 NC NC 66 VREFGC VREFCG
NOTES;
.
VDDQ = 1.5 VDC when TYPE DET- is grounded by AGP 4X card.
NC = Not connected
VDDQ = 3.3 VDC when TYPE DET- is left open by AGP 1X/2X card
hp compaq d330 and d530 Series of Personal Computers
Featuring the Intel Pentium 4 Processor
First Edition - June 2003
4-13
