HP Compaq d330 DT User Manual

Technical Reference Guide
hp compaq d330 and d530 Series of Personal Computers
Featuring the Intel Pentium 4 Processor
First Edition - June 2003
7-13
Power Button/LED Header P5
CD ROM Audio Header P7
1 Audio (Left Channel)
3 Ground
4 Audio (right channel)
2 Ground
BIOS Fail 1
Not Connected 5
Ground 7
Not Connected 3
2 Not Connected
6 Thermal
4 Not Connected
AOL/SOS Header P12
Chassis ID2 15
GND 13
NC 11
+5 VDC 9
M Reset 7
GND 5
HD LED Anode 3
18 Chassis ID1
Chassis ID0 17
HD LED Cathode 1
16 +5 VDC
12 GND
10 NC
8 GND
6 PWR Btn
4 PS LED anode
2 PS LED cathode
NOTE:
No polarity consideration required for connection to speaker header P6 or SCSI HD LED heade
[1] Separate cable connection for these two pins (equivalent of header P29 on other systems).
r P29.

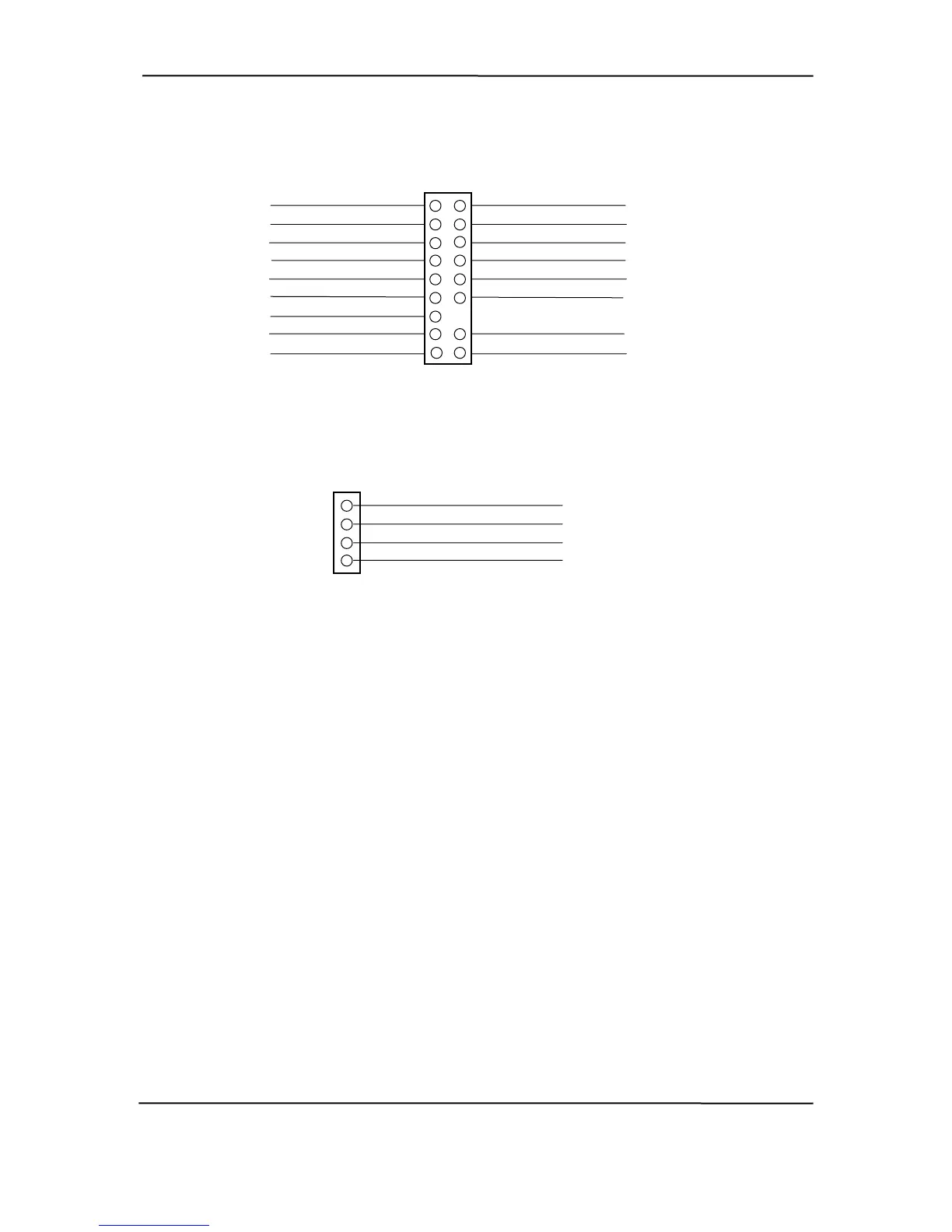

Figure 7-8. Header Pinouts
