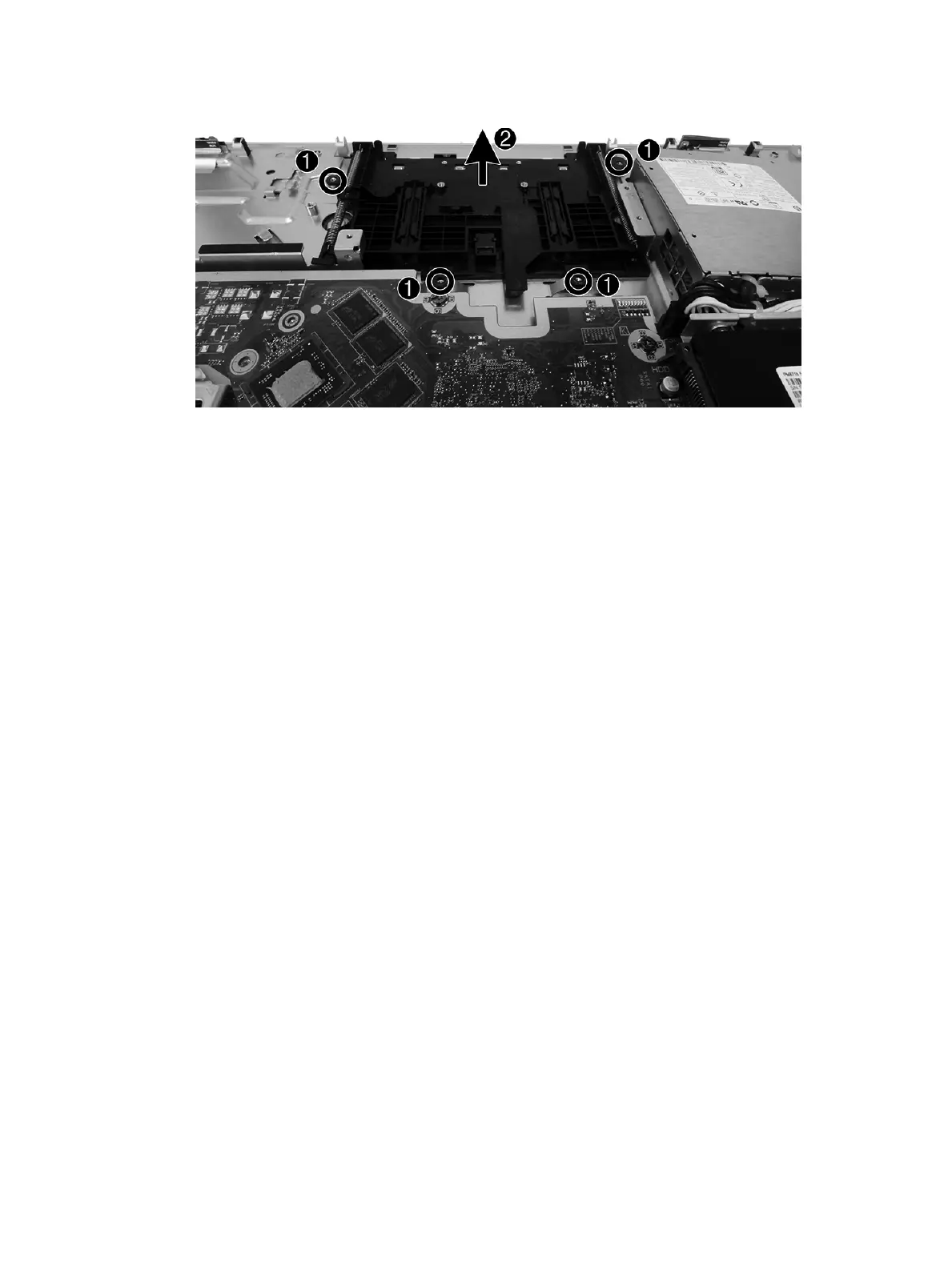

13. Remove the webcam bracket from the computer (2).

To install the webcam assembly and associated parts, reverse the removal procedures.

Webcam module 37
