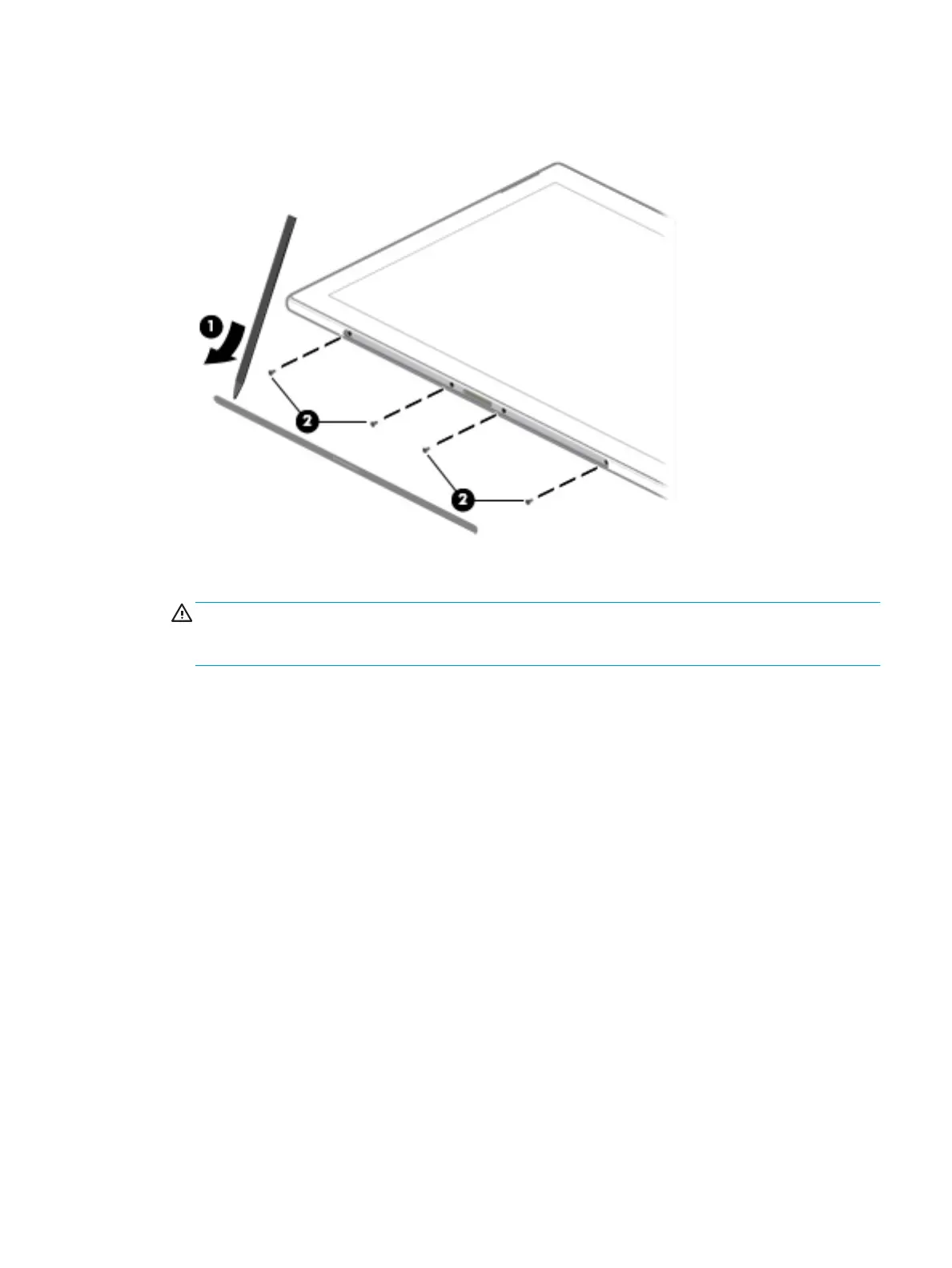

2. Use a thin, plastic tool to remove the Mylar screw/POGO cover (1), and then remove the four Phillips M
1.6×2.5 screws from the bottom of the display (2).
3. Remove the suction cups.
CAUTION: Before releasing the display panel assembly, make sure the work surface is clear of tools,
screws, and any other foreign objects. Failure to follow this caution can result in damage to the display
panel assembly.
4. With the display facing you, starting from the top, right corner, use a non-marking tool to disengage the
display panel from the tablet (1).
5. Separate the top of the display, moving from right to left (2).
6. Separate the right side of the display, moving from top to bottom (3).
7. Separate the left side of the display, moving from top to bottom (4).
Component replacement procedures 33
