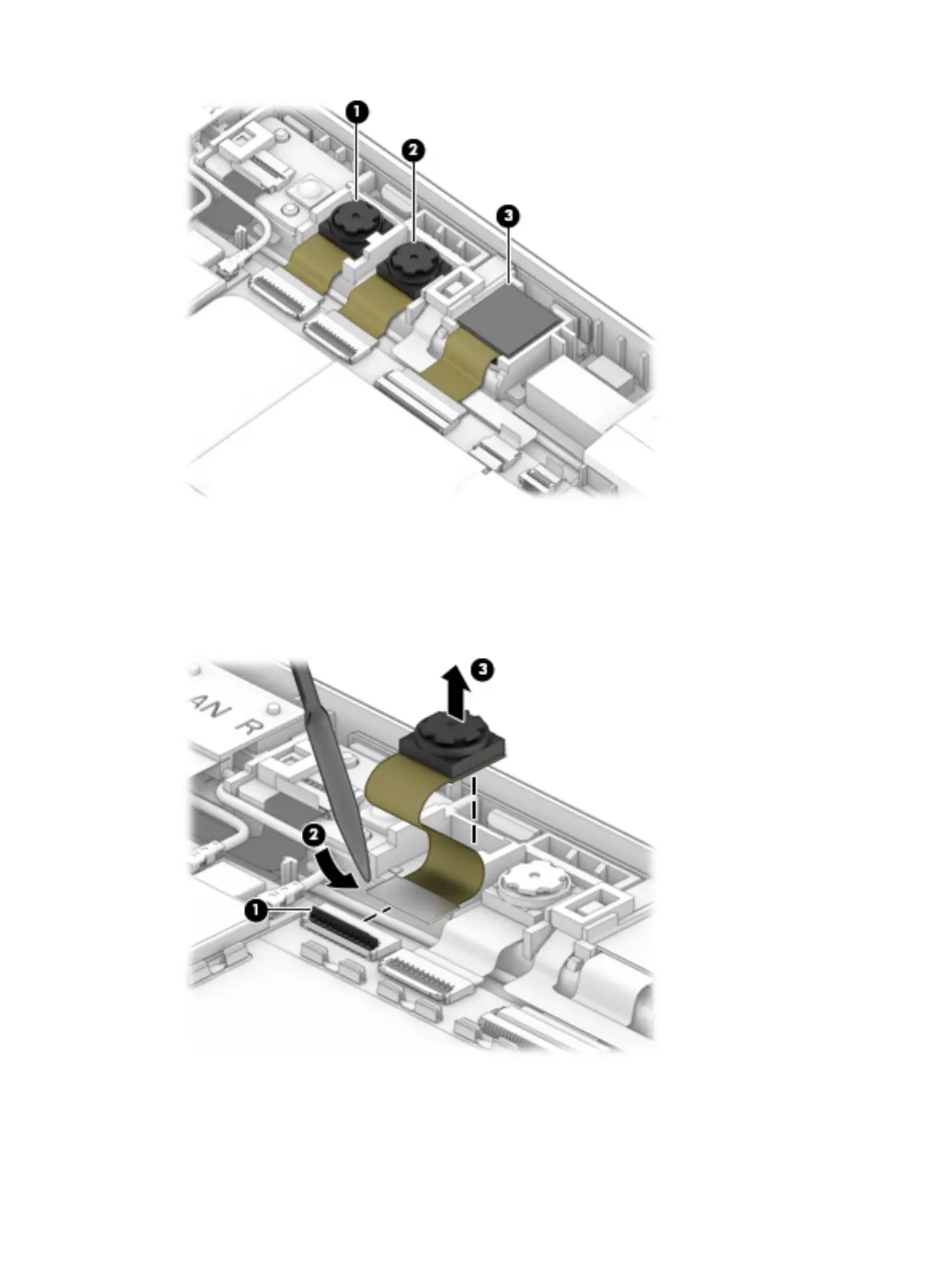

2. Release the ZIF connector (1) to which the infrared camera cable is connected, and then disconnect
the infrared camera cable from the system board.
3. Detach the infrared camera (2) from the tablet. (The infrared camera is attached to the tablet with
double-sided adhesive.)
4. Remove the infrared camera (3).
Remove the front-facing camera:
48 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
