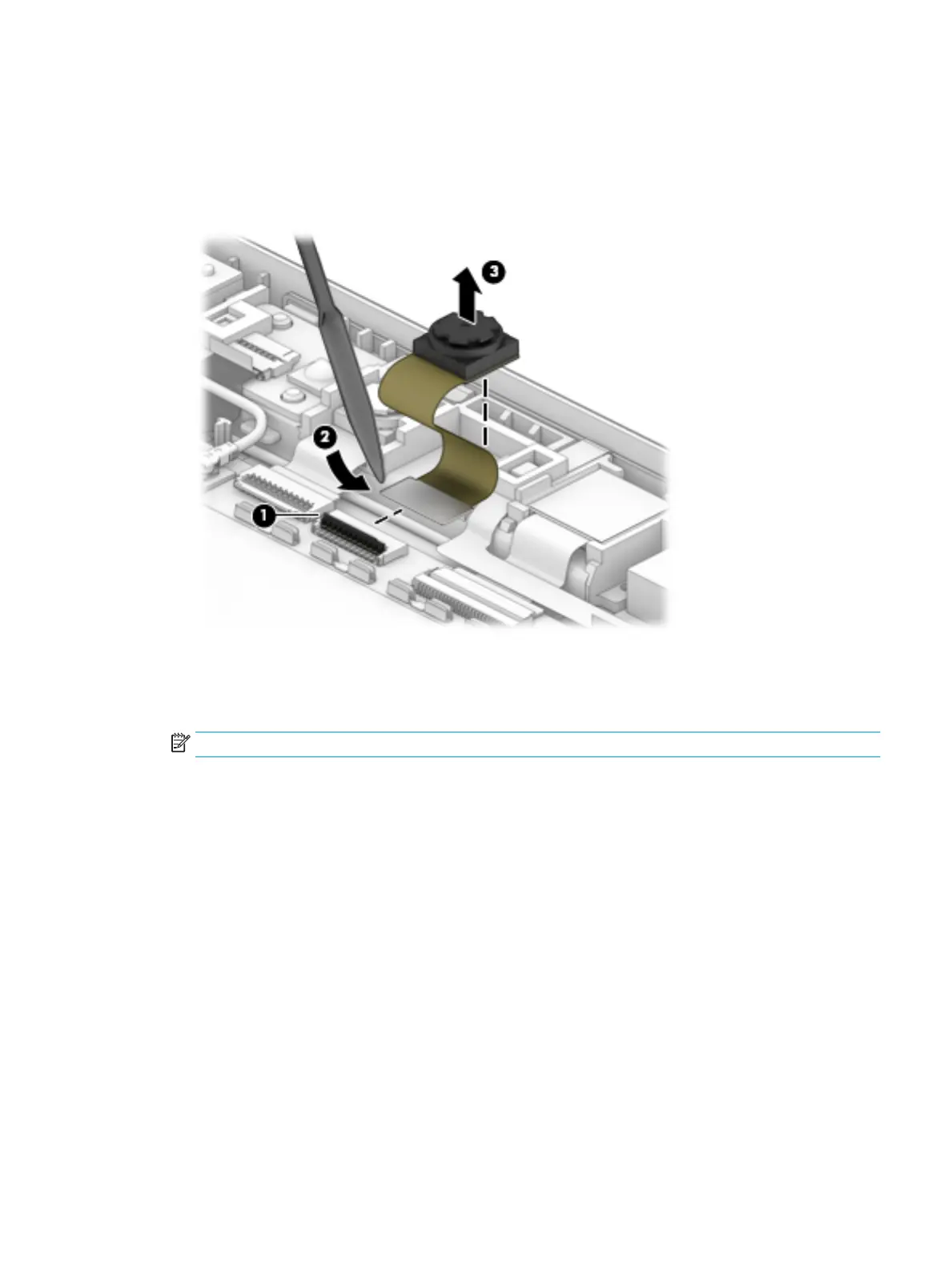

1. Release the ZIF connector (1) to which the front-facing webcam cable is connected, and then disconnect
the front-facing camera cable from the system board.
2. Detach the front-facing camera (2) from the tablet. (The front-facing camera is attached to the tablet
with double-sided adhesive.)
3. Remove the front-facing camera (3).
Remove the rear-facing camera:
1. Disconnect the LED board cable from the system board (1), and then remove it from on top of the rear-
facing camera (2).
NOTE: The cable remains connected to the tablet.
Component replacement procedures 49
