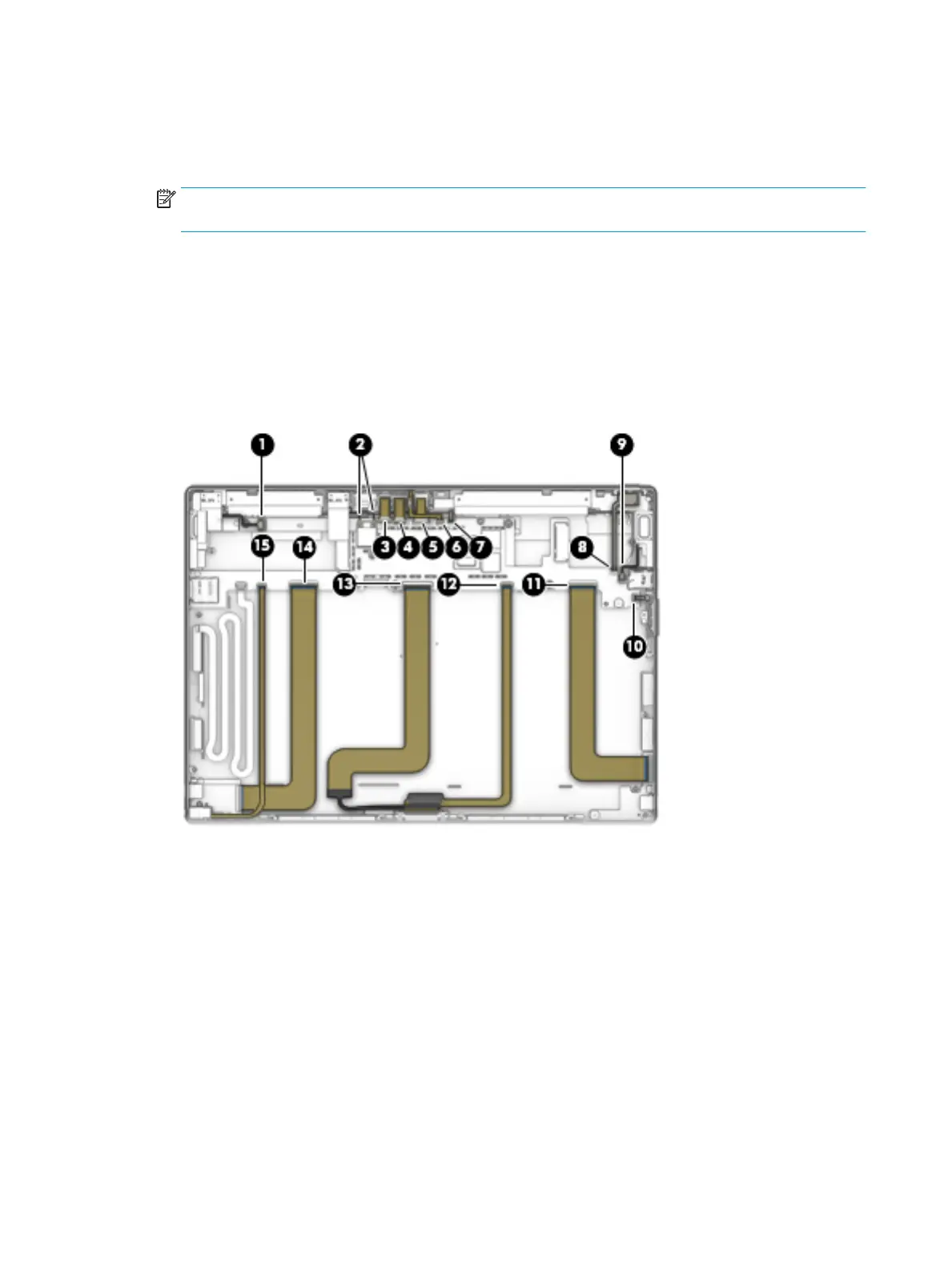

(7) Left speaker cable
(8) IR LED/light sensor board cable
(9) WLAN antenna cables
NOTE: The #1/white WLAN antenna cable connects to the WLAN module "#1/Main" terminal. The #2/
black WLAN antenna cable connects to the WLAN module "#2/Aux" terminal.
(10) Front-facing camera cable
(11) IR camera cable
(12) Rear-facing camera cable
(13) Front-facing camera LED cable
(14) P sensor cable
(15) Right speaker cable
62 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
