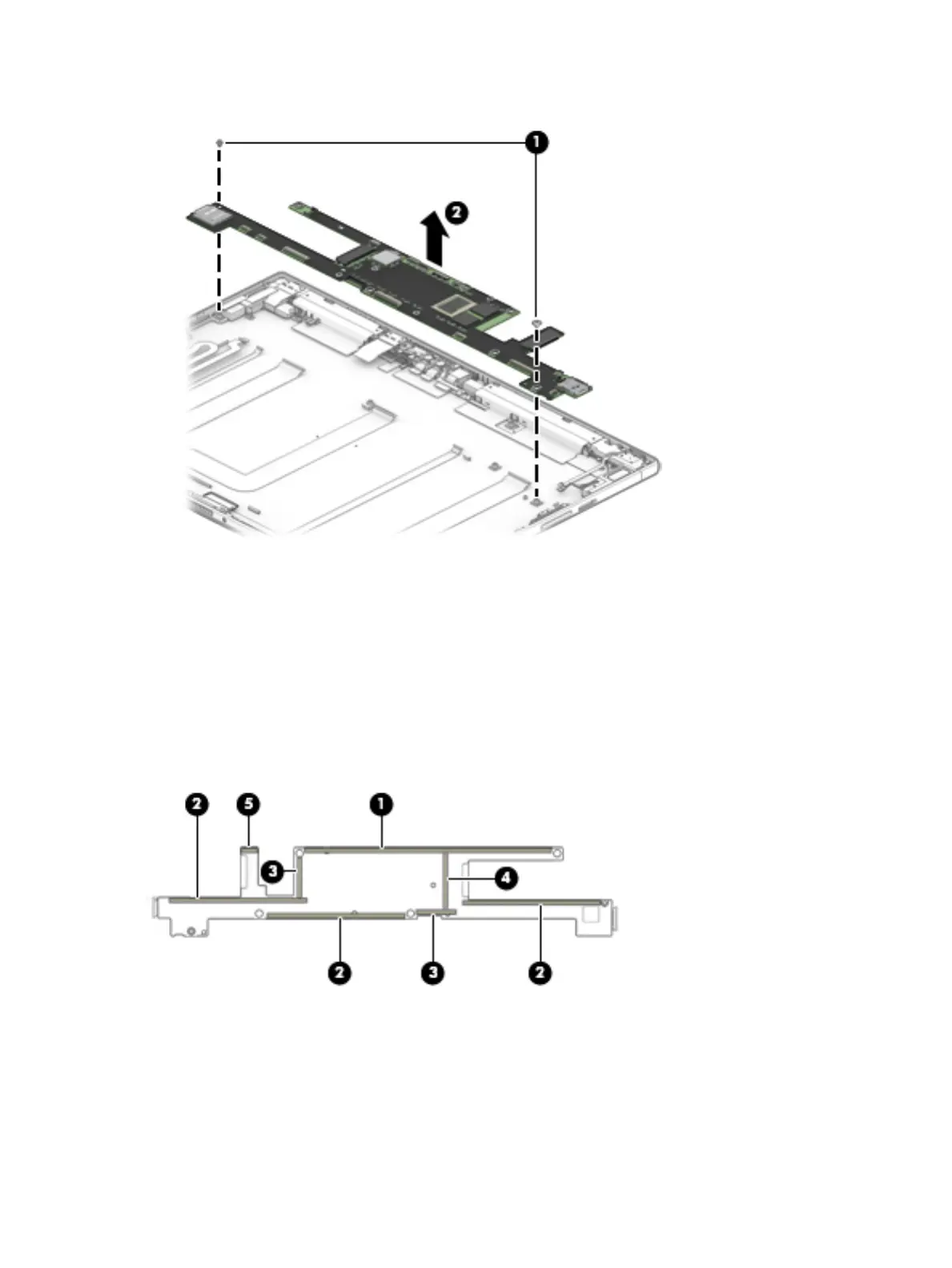

5. Lift the system board up and out of the tablet (2).
Reverse this procedure to install the system board.
When installing a system board on a model with a WWAN module, be sure to install gaskets onto the system
board as shown in the following image.
(1): 156 mm x 3 mm
(2): 87 mm x 3 mm
(3): 22 mm x 3 mm
(4): 36 mm x 3 mm
(5): 11 mm x 2.5 mm
64 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
