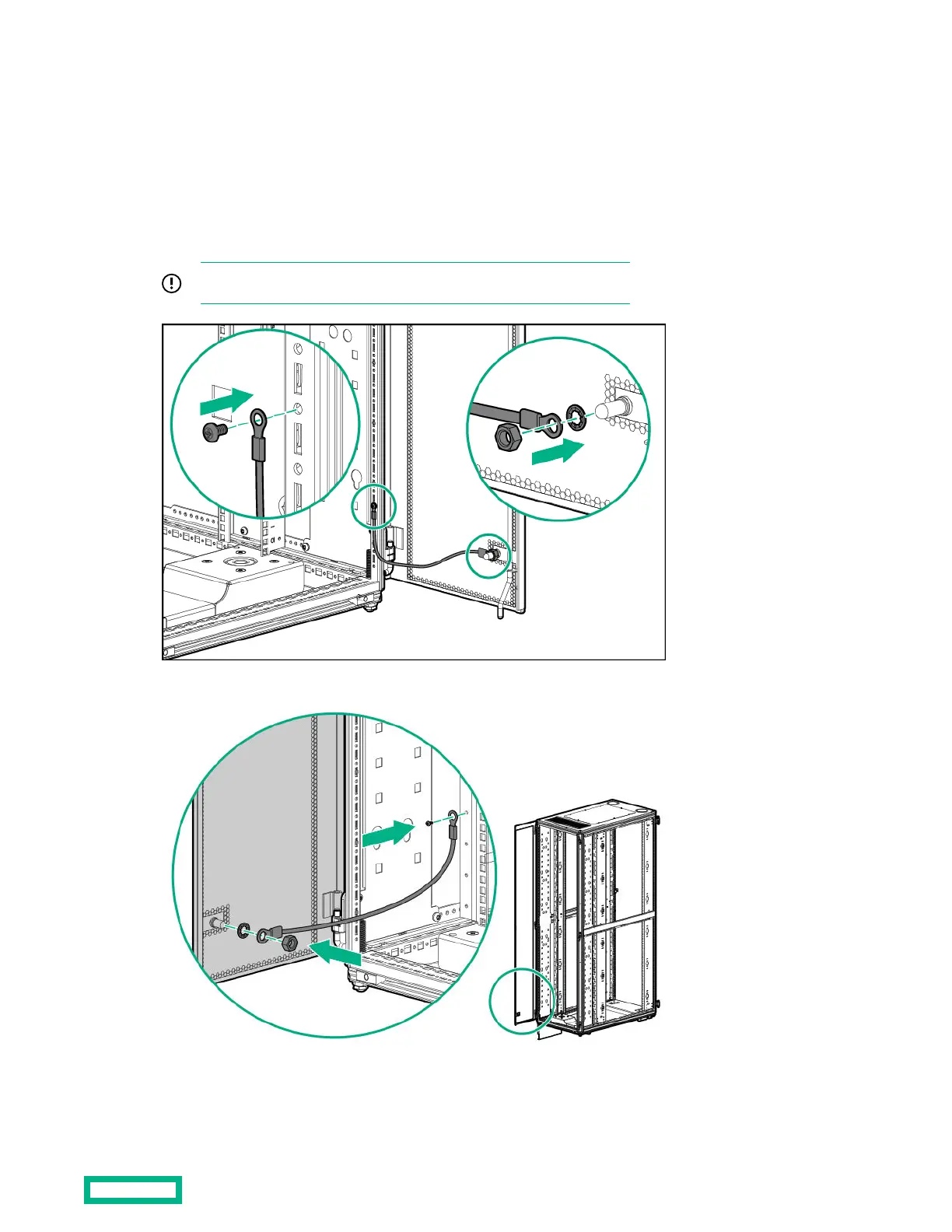

Attaching the grounding straps from the system chassis rail to the rear doors
Procedure
1. Insert a T-25 Torx screw through the end of a 3683-cm (145-inch) grounding strap, and then secure the screw to the
system chassis rail.
2. Place the other end of the same grounding strap over the grounding lug on the right rear door.
3. Place an M8 internal serrated lock washer and an M8 hex nut over the grounding lug on the right rear door, and then
tighten the washer.
IMPORTANT: The location of the welding stud on your model may vary.
4.
Repeat steps 1 through 3 for the left rear door.
