4. Repeat steps 2 and 3 to install the right sliding shelf rail assembly.

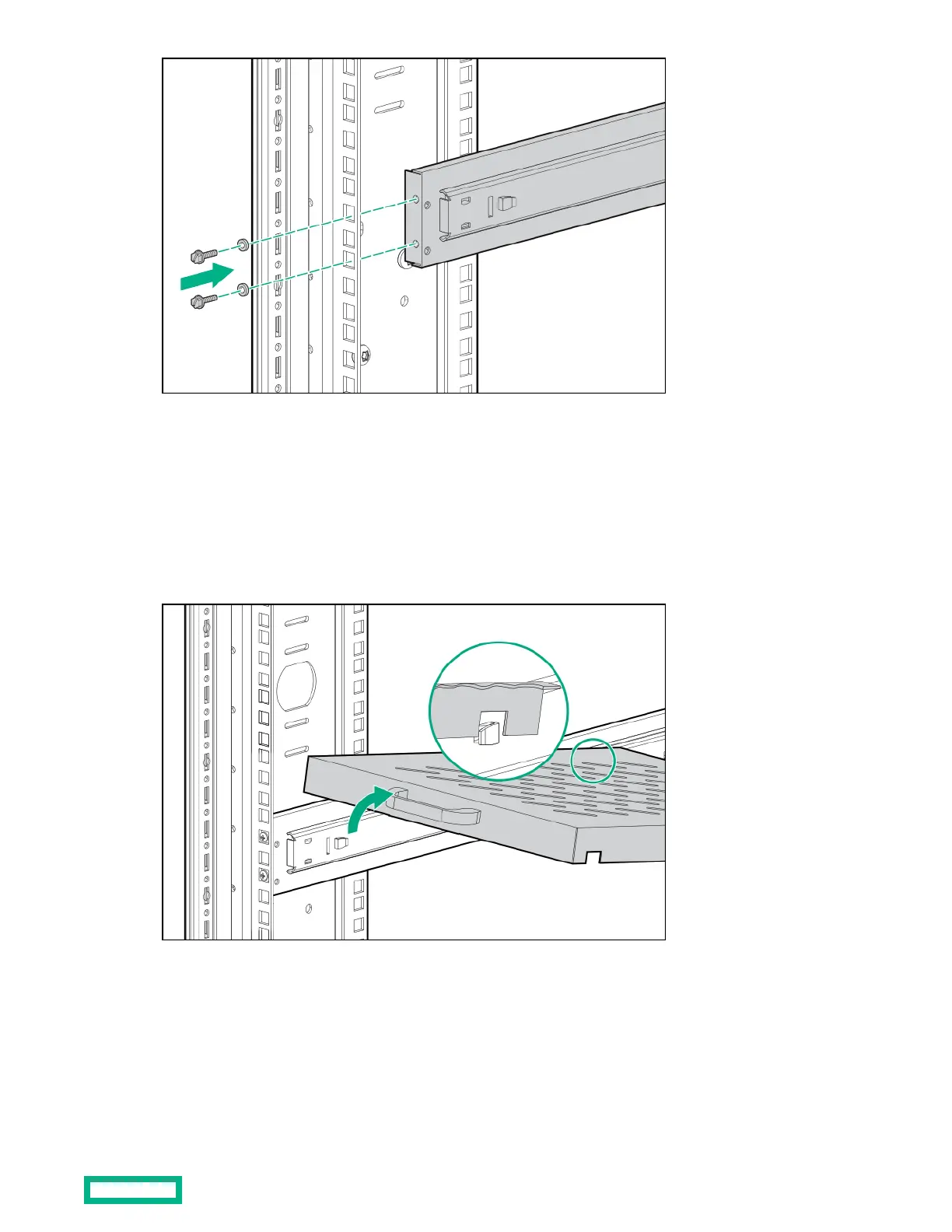

Installing the sliding shelf
Procedure
1.
Move the sliding shelf into the rack while tilting the front of the shelf up. Align the rear notches on the sliding shelf over the
rear tabs on the sliding shelf rail assemblies.
2. Push the sliding shelf down on the rear tabs to align the front notches on the sliding shelf with the front tabs on the sliding
shelf rail assemblies.
3. Lower the front of the sliding shelf over the tabs on the front of the sliding shelf rail assemblies and push down gently to
lock the shelf into place.
4. Secure the sliding shelf to each sliding rail using one M4 x 12 flat HD screw and M4 external washer with one M4 nut on
the inside of the shelf.
100 Kilo Sliding Shelf kit
61
