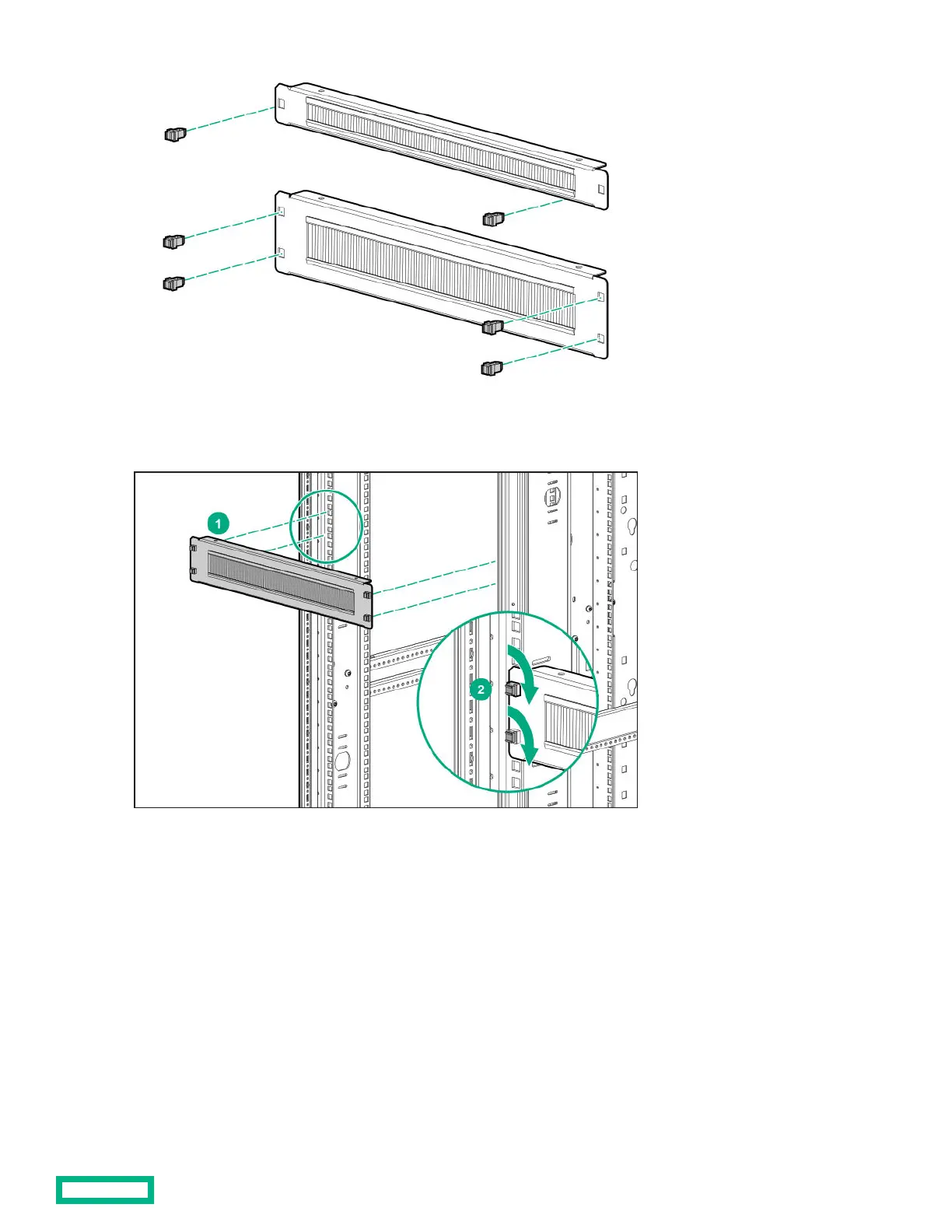

2. Align the 2U cable management bracket to the screw holes in the rack (1).
3. Turn the plastic latches on each side of the 2U cable management bracket clockwise until they lock in place (2).
Installing the cable management D-ring bracket
Depending on your rack configuration, the cable management D-ring bracket can be installed in either a front mount or a side
mount. Before installing the cable management D-ring bracket, complete the following step.
Place a cable management D-ring bracket clip (1) on a cable management D-ring bracket clamp (2).
Cable Management Combo kit
22
