Attaching the grounding straps from the system chassis to the front door
Procedure

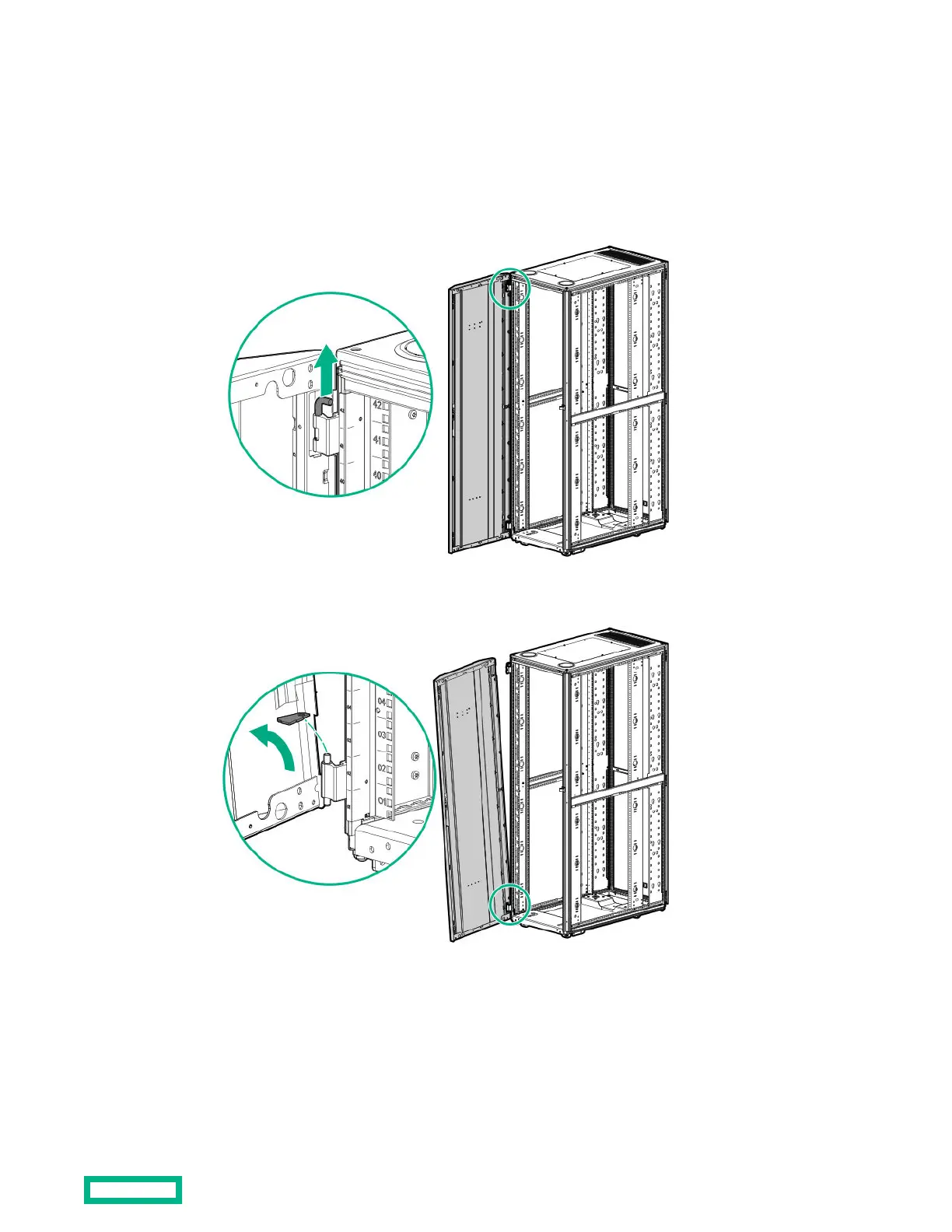

1. Remove the rack front door.
a. Unlock and open the front door.
b. Lift the top hinge pin up, and then tilt the door away from the rack.
c.
Lift the door up and out of the bottom hinge.
2. Insert an M6 T-25 Torx screw through one end of a 1524-cm (6-inch) grounding strap attached to the outside of the
frame.
3. Insert the screw in the second hole below the upper front door hinge and tighten the screw.
Ground Bonding kit
