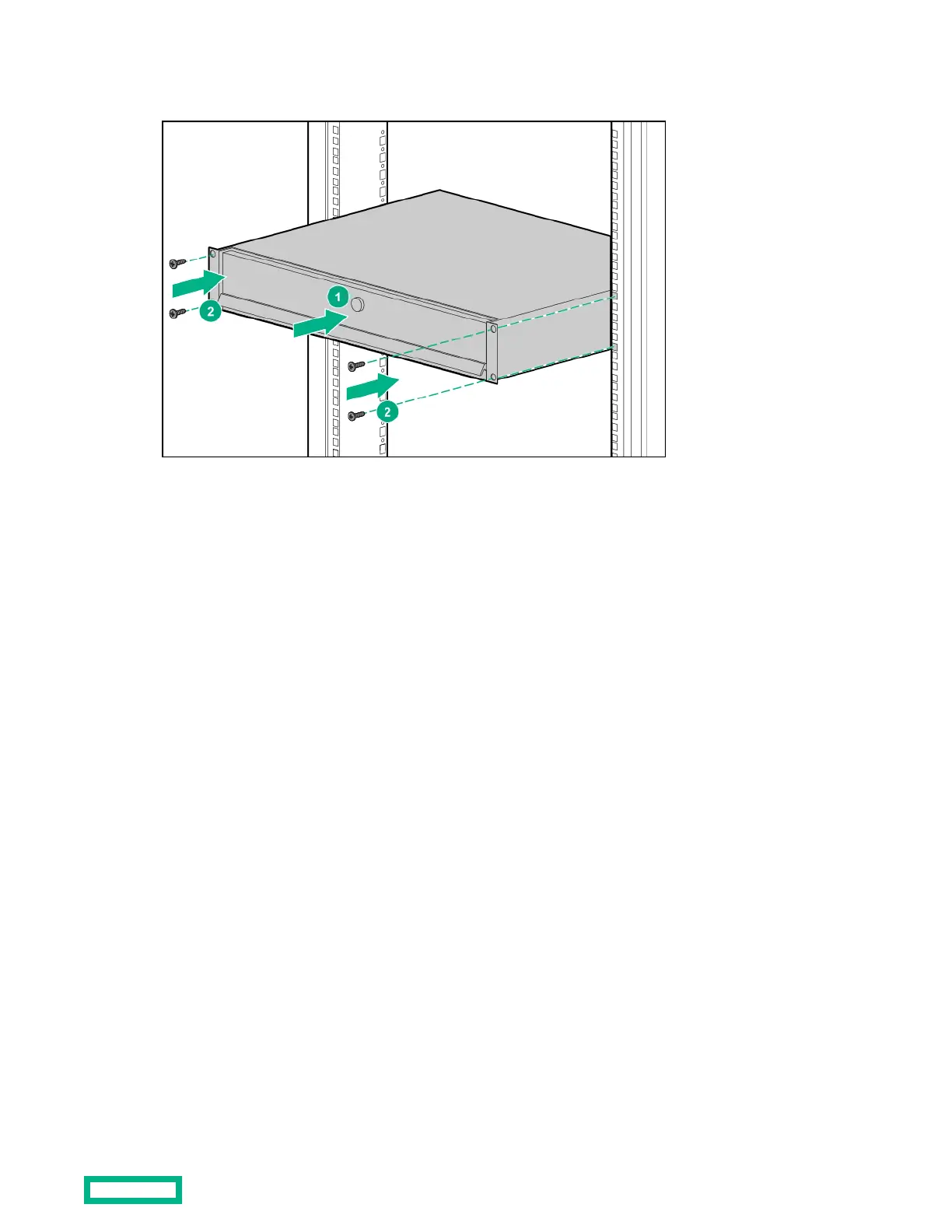

3. Align the 2U drawer kit with the cage nuts.

4. Insert one screw through each bracket hole on the drawer and into each cage nut and tighten.

(Optional) Lock the 2U drawer kit using the key provided.

Locking drawer kit
