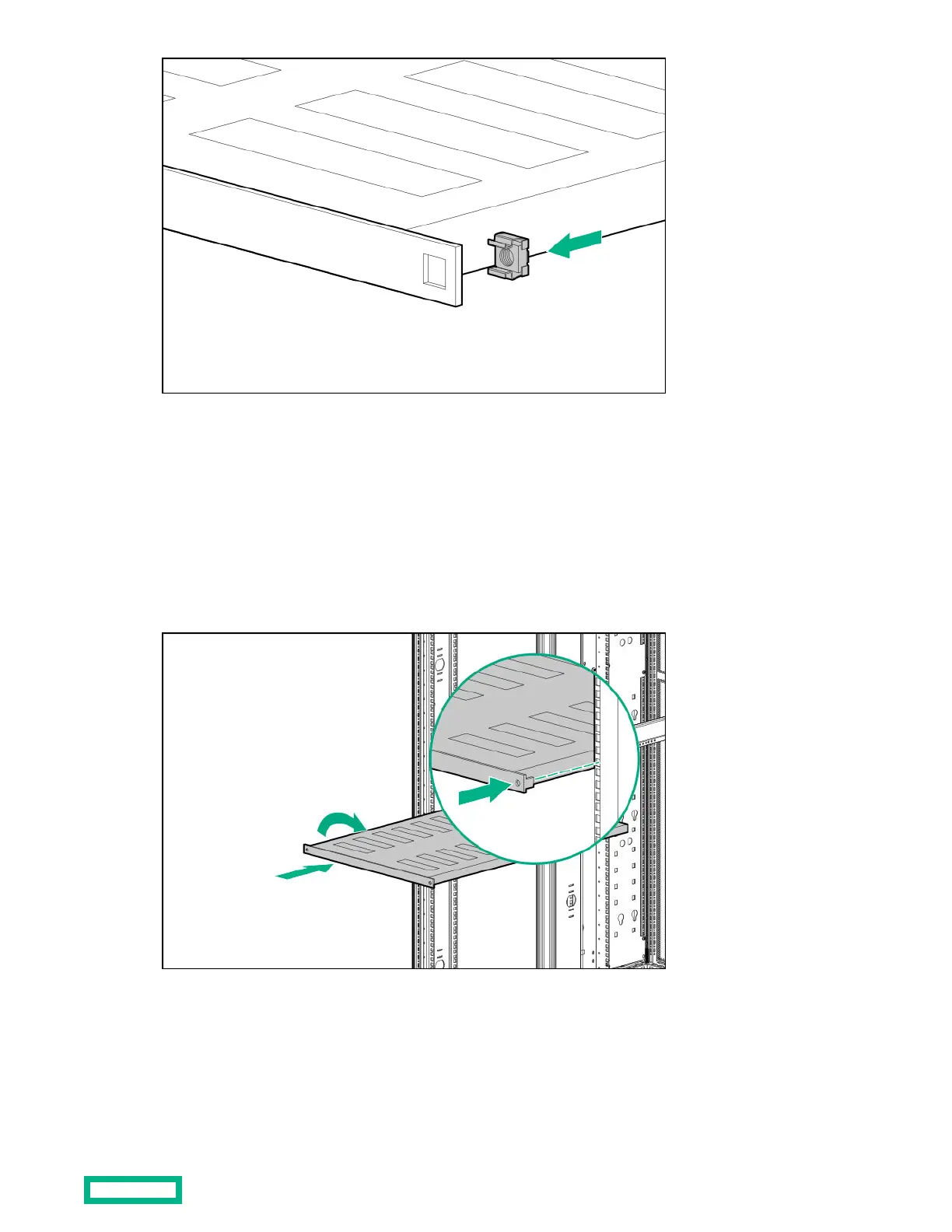

2. Use a cage nut insertion tool to secure each cage nut to the shelf.
a. Hook the bottom lip of the cage nut in the square-rail perforation.
b.
Insert the tip of the insertion tool through the perforation, and then hook the top lip of the cage nut.
c.
Pull the cage nut through the square-rail perforation until the top lip snaps into position.
3.
Hold the shelf firmly and insert the shelf into the rack, tilting the shelf slightly so that the rear teeth on the shelf clear the
rear of the rack.
4.
Straighten the shelf and insert the rear teeth into the mounting holes on the rear of the rack.
5. Align each cage nut assembly with the mounting holes on the inside front of the rack.
Server/Utility Shelf kit
55
