HP J8697A Advanced Traffic Management Guide

4-1
4
Switch Meshing
Introduction
Switch meshing is a load-balancing technology that enhances reliability and
performance in these ways:
■ Provides significantly better bandwidth utilization than either Spanning
Tree Protocol (MSTP) or standard port trunking.
■ Uses redundant links that remain open to carry traffic, removing any
single point of failure for disabling the network, and allowing quick
responses to individual link failures. This also helps to maximize invest-
ments in ports and cabling.
■ Unlike trunked ports, the ports in a switch mesh can be of different types
and speeds (10 and 100 Mbps, gigabit, and 10 gigabit). For example, a
10Base-FL port and a 1GB port can be included in the same switch mesh.

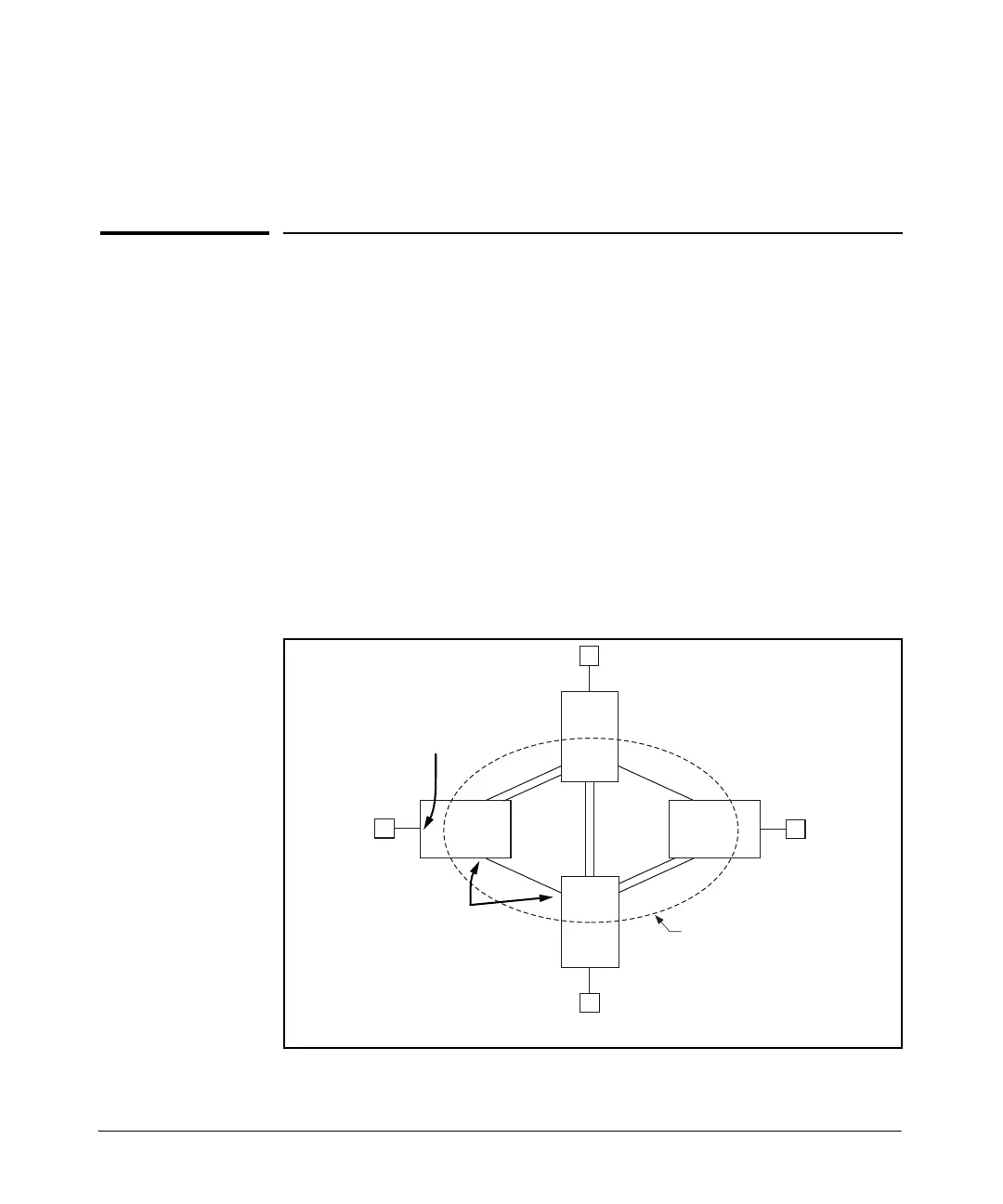

Figure 4-1. Example of Switch Meshing
Switch 1
(Meshed)
Switch 4
(Meshed)
Switch 3
(Meshed)
Switch 2
(Meshed)
W
W
W
W
Switch Mesh Domain
The mesh-configured ports in switches 1-4 form a Switch Mesh Domain
Non-Meshed Port
Meshed Port
Node "A"
Node "B"

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
