HP J8697A Advanced Traffic Management Guide

6-11
Stack Management for the 3500, 3500yl, 6200yl and 6600 Switches
Configuring Stack Management
Using the Menu Interface To View Stack Status
and Configure Stacking
Using the Menu Interface To View and Configure a
Commander Switch
1. Configure an IP address and subnet mask on the Commander switch.
(Refer to the Management and Configuration Guide for your switch.)
2. Display the Stacking Menu by selecting Stacking in the Main Menu.

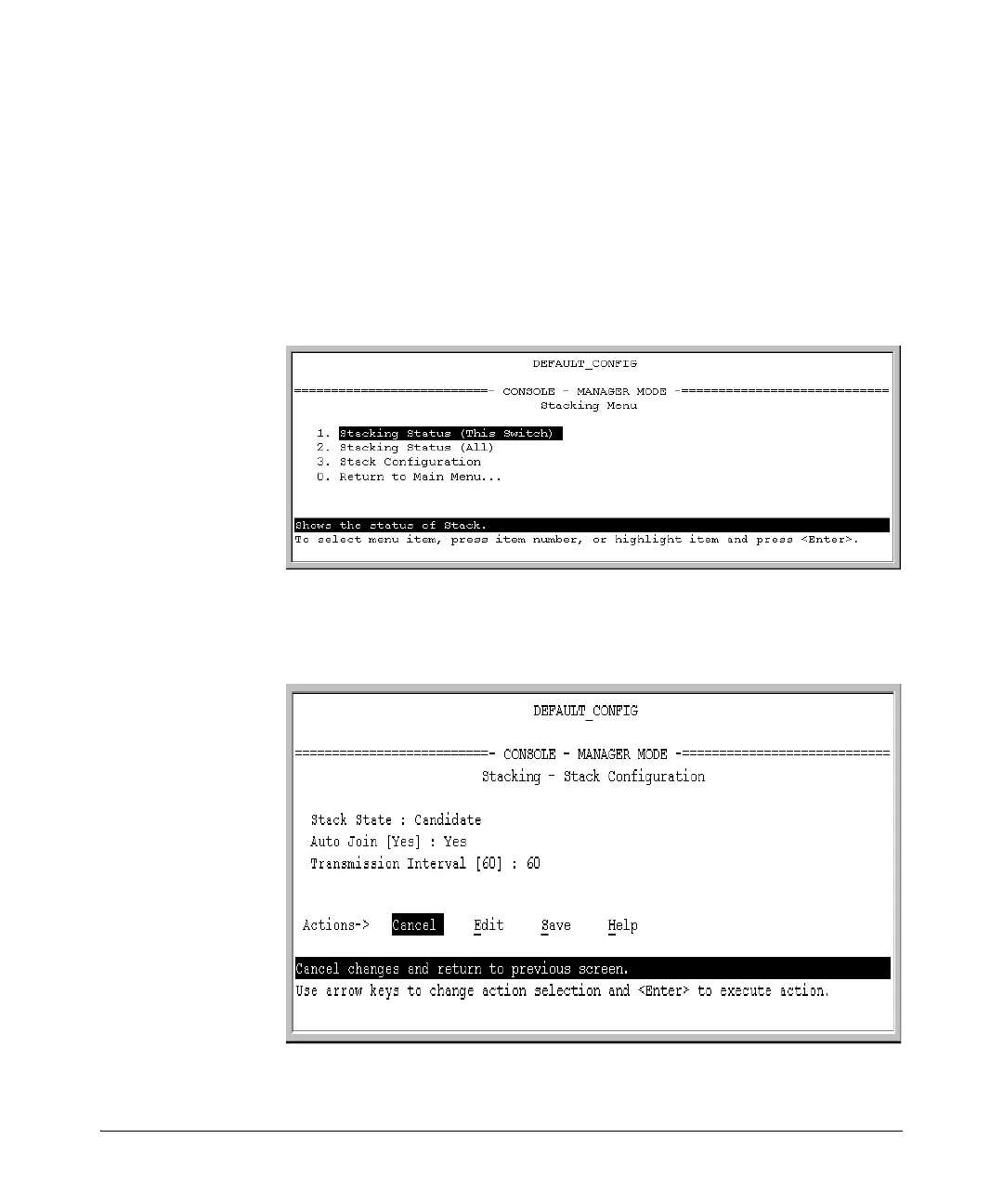

Figure 6-5. The Default Stacking Menu
3. Display the Stack Configuration menu by pressing
[3] to select Stack
Configuration.
Figure 6-6. The Default Stack Configuration Screen

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
