1-11
Static Virtual LANs (VLANs)
Static VLAN Operation
■ “CLI: Configuring VLAN Parameters” (page 1-21)
■ “WebAgent: Viewing and Configuring VLAN Parameters” (page 1-43)
■ “VLAN Tagging Information” (page 1-44)
■ “Effect of VLANs on Other Switch Features” (page 1-60)
■ “VLAN Restrictions” (page 1-62)
Per-Port Static VLAN Configuration Options
The following figure and table show the options you can use to assign
individual ports to a static VLAN. Note that GVRP, if configured, affects these
options and VLAN behavior on the switch. The display below shows the per-
port VLAN configuration options. Table 1-4 briefly describes these options.

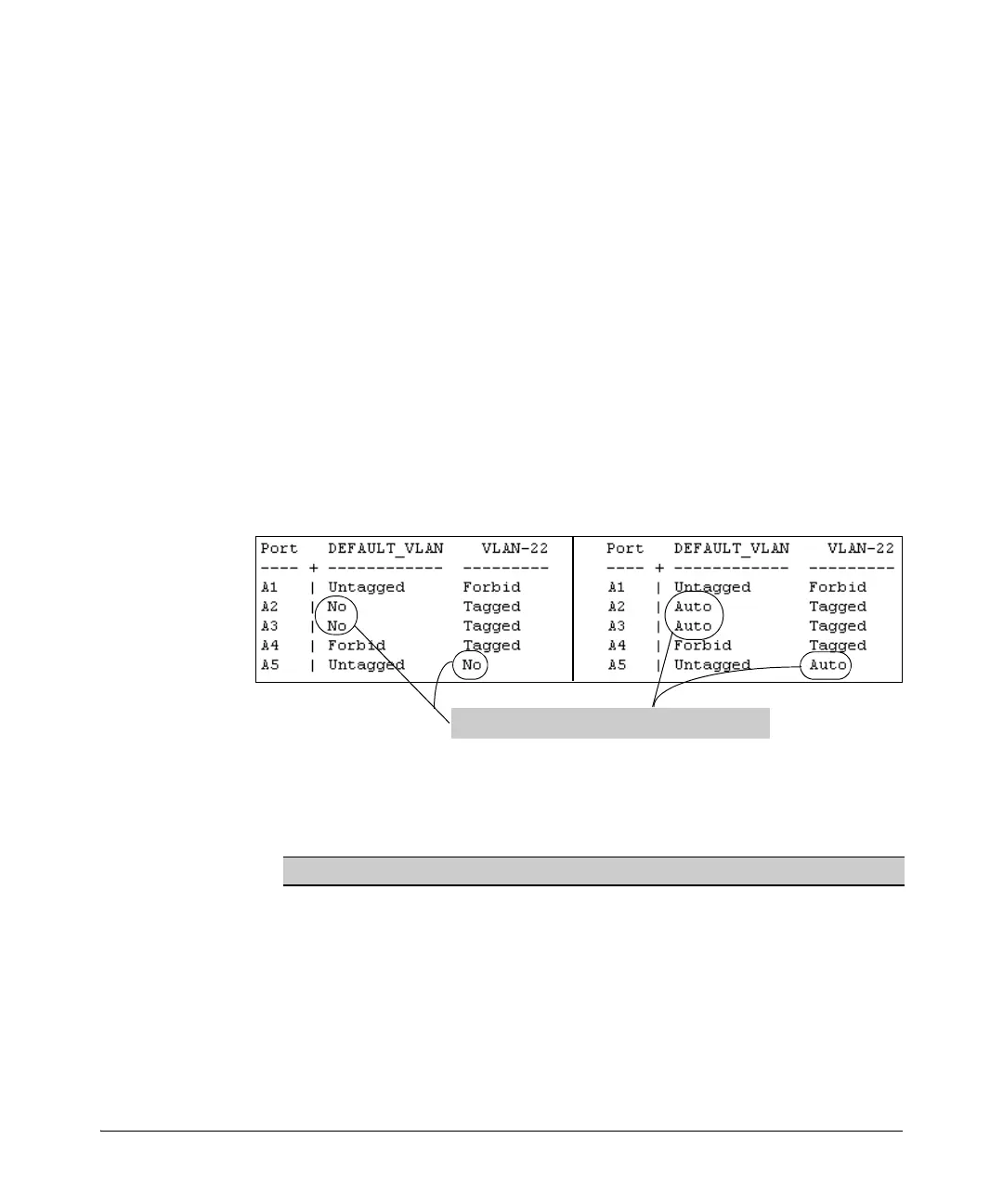

Figure 1-6. Comparing Per-Port VLAN Options With and Without GVRP
Table 1-4. Per-Port VLAN Configuration Options
Example of Per-Port
VLAN Configuration
with GVRP Disabled
(the default)
Example of Per-Port
VLAN Configuration
with GVRP Enabled
Enabling GVRP causes “No” to display as “Auto”.
Parameter Effect on Port Participation in Designated VLAN
Tagged
Allows the port to join multiple VLANs.
Untagged
Allows VLAN connection to a device that is configured for an untagged
VLAN instead of a tagged VLAN. A port can be an untagged member of
only one port-based VLAN. A port can also be an untagged member of only
one protocol-based VLAN for any given protocol type. For example, if the
switch is configured with the default VLAN plus three protocol-based
VLANs that include IPX, then port 1 can be an untagged member of the
default VLAN and one of the protocol-based VLANS.
