Web and MAC Authentication

Setup Procedure for Web/MAC Authentication

For example, to configure the switch to access a RADIUS server at IP address

192.168.32.11 using a server specific shared secret key of ‘1A7rd’

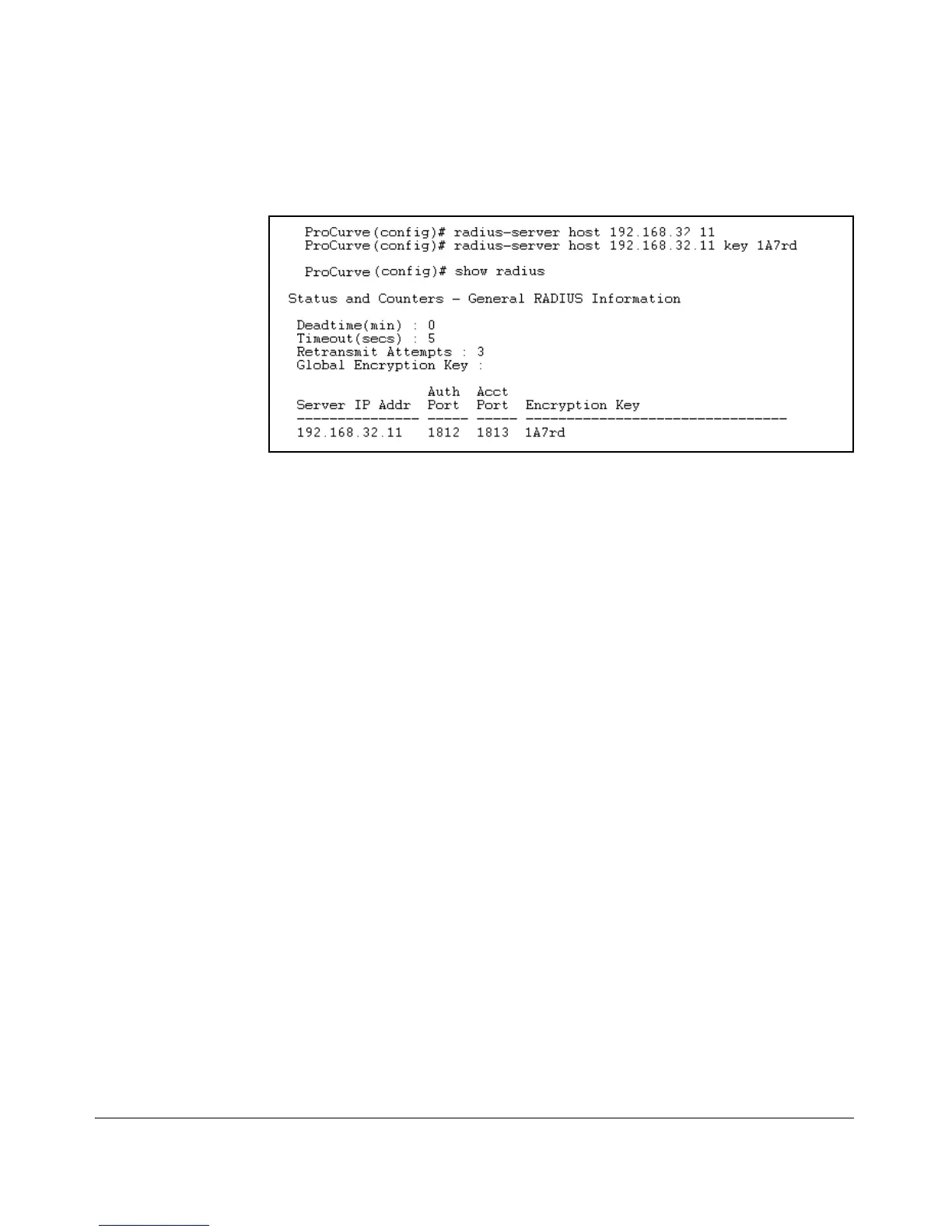

Figure 3-5. Example of Configuring a Switch To Access a RADIUS Server

3-19
