Configuring and Monitoring Port Security
Port Security
Switch A
Port Security
Configured
Switch B
MAC Address
Authorized by
Switch A
PC 1
MAC Address
Authorized by Switch A
PC 2
MAC Address NOT
Authorized by Switch A
PC 3
MAC Address NOT
Authorized by Switch A
Switch C
MAC Address
NOT
Authorized
by Switch A
Switch A
Port Security
Configured
Switch B
MAC Address
Authorized by
Switch A
PC 1
MAC Address
Authorized by Switch A
Logical Topology for Access to Switch A Physical Topology
• PC1 can access Switch A.
• PCs 2 and 3 can access Switch B and Switch C, but are
blocked from accessing switch A by the port security
settings in switch A.
• Switch C is not authorized to access Switch A.

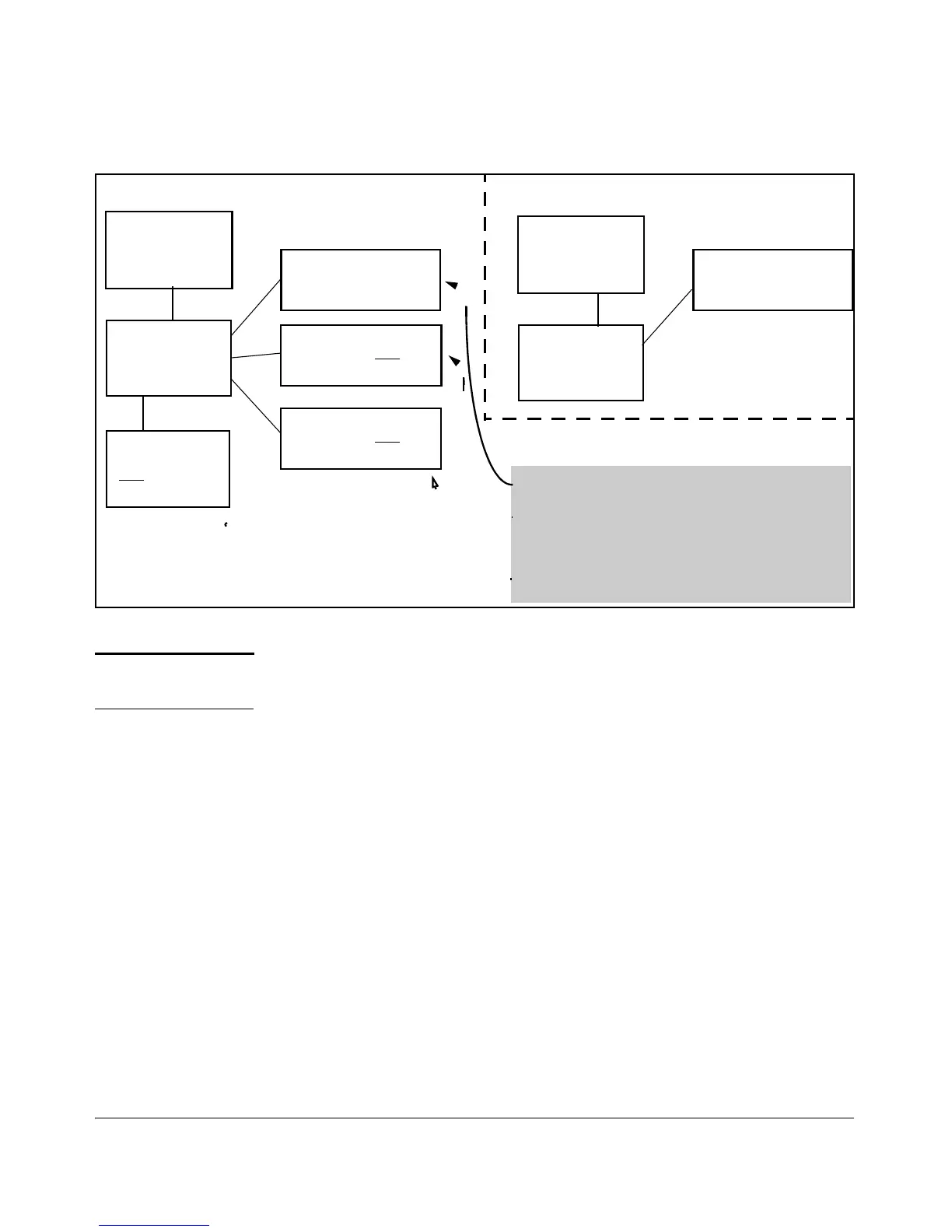

Figure 13-2. Example of How Port Security Controls Access
Note Broadcast and Multicast traffic is always allowed, and can be read by intruders
connected to a port on which you have configured port security.
Trunk Group Exclusion
Port security does not operate on either a static or dynamic trunk group. If
you configure port security on one or more ports that are later added to a trunk
group, the switch will reset the port security parameters for those ports to the
factory-default configuration. (Ports configured for either Active or Passive
LACP, and which are not members of a trunk, can be configured for port
security.)
