Configuring Username and Password Security

Front-Panel Security

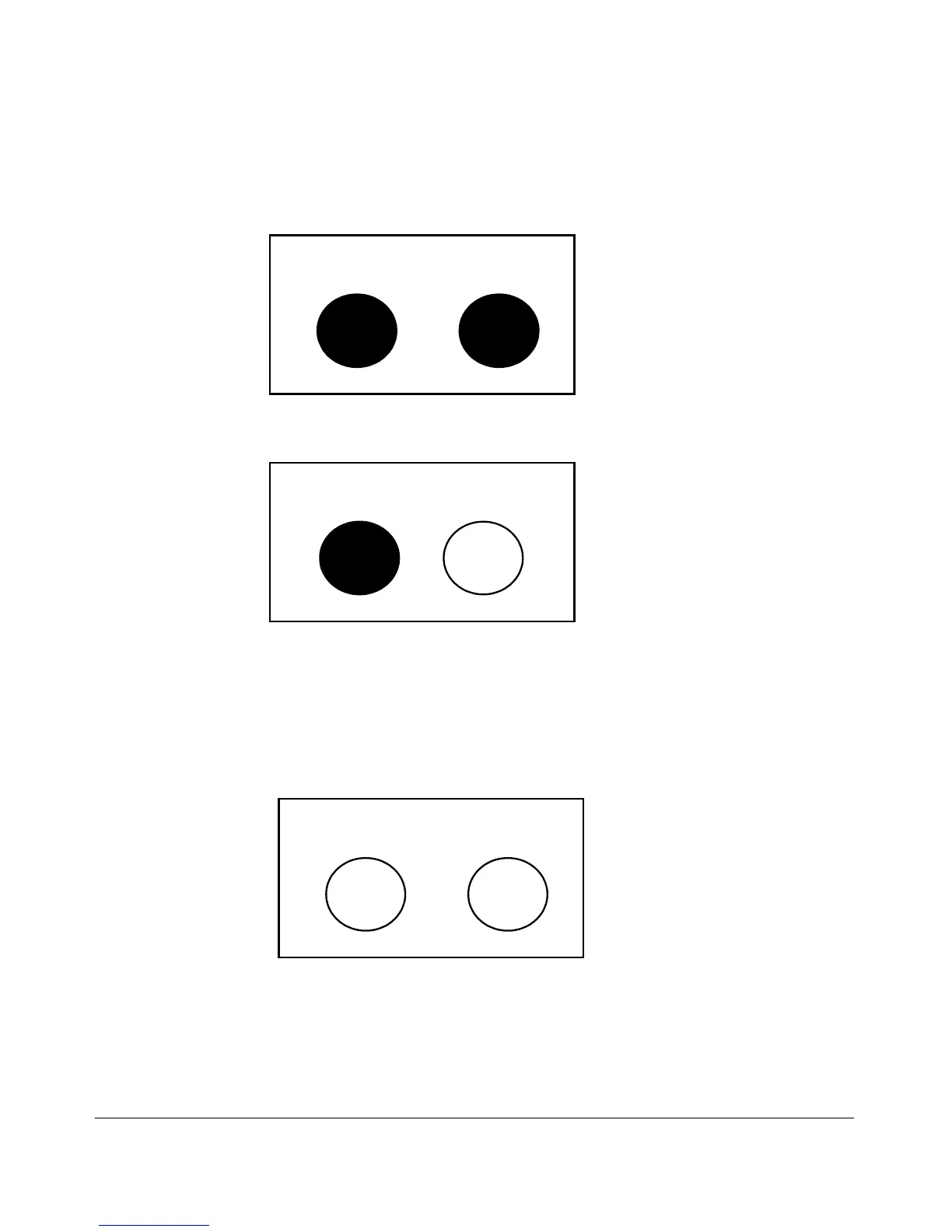

2. While holding the Reset button, press and hold the Clear button for five

seconds.

Clear Reset

3. Release the Reset button.

Clear Reset

4. If the Clear button is held for greater then 2.5 seconds, configuration will

be cleared, and the switch will reboot. It can take approximately 20-25

seconds for the switch to reboot. This process restores the switch config-

uration to the factory default settings.

Clear Reset
