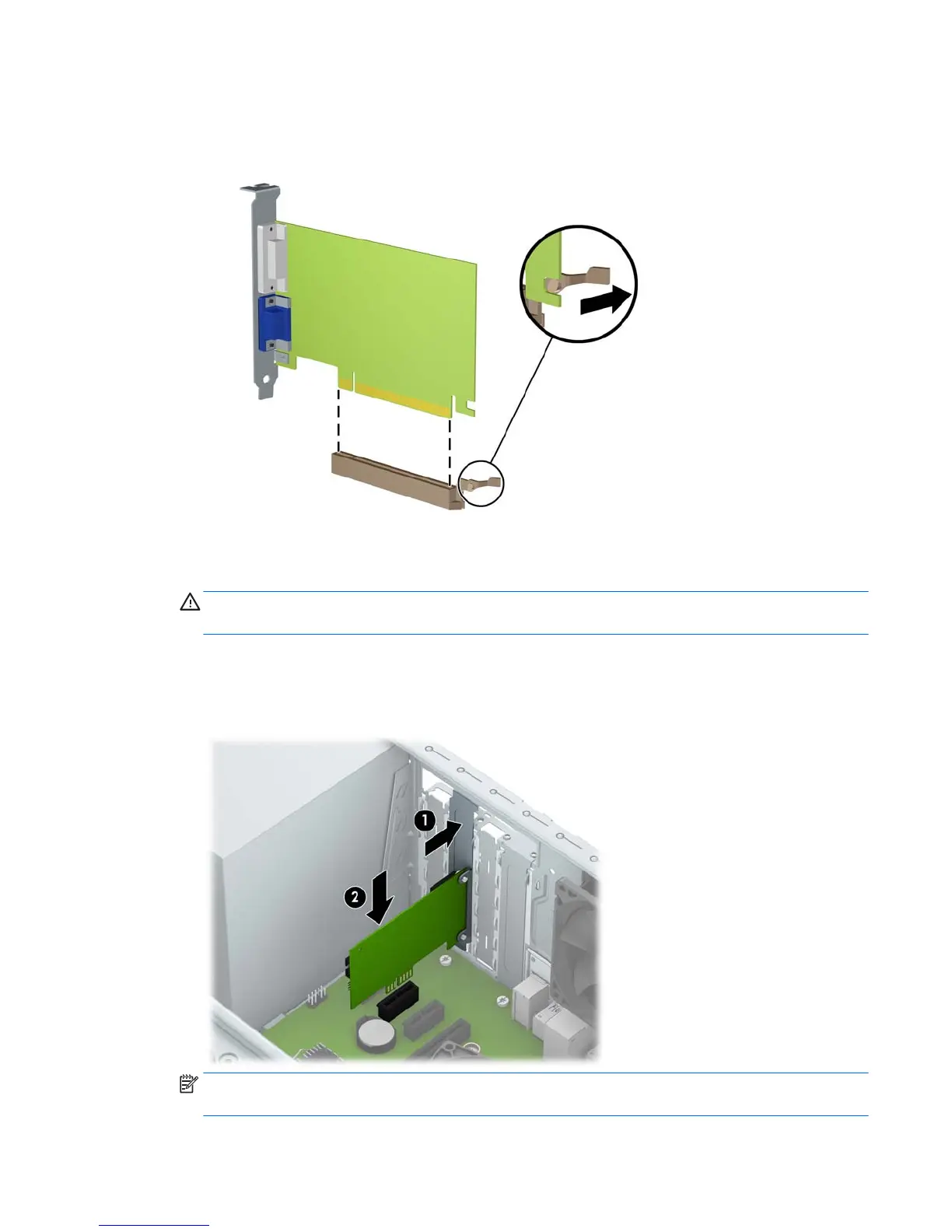

c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion

socket away from the card and carefully rock the card back and forth until the connectors pull free

from the socket. Lift the card straight up then away from the inside of the chassis to remove it. Be

sure not to scrape the card against other components.

6. Store the removed card in anti-static packaging.

7. If you are not installing a new expansion card, install an expansion slot cover to close the open slot.

CAUTION: After removing an expansion card, you must replace it with a new card or expansion slot

cover for proper cooling of internal components during operation.

8. To install a new expansion card, hold the card just above the expansion socket on the system board then

move the card toward the rear of the chassis (1) so that the bottom of the bracket on the card slides into

the small slot on the chassis. Press the card straight down into the expansion socket on the system

board (2).

NOTE: When installing an expansion card, press rmly on the card so that the whole connector seats

properly in the expansion card socket.

Expansion cards 33
