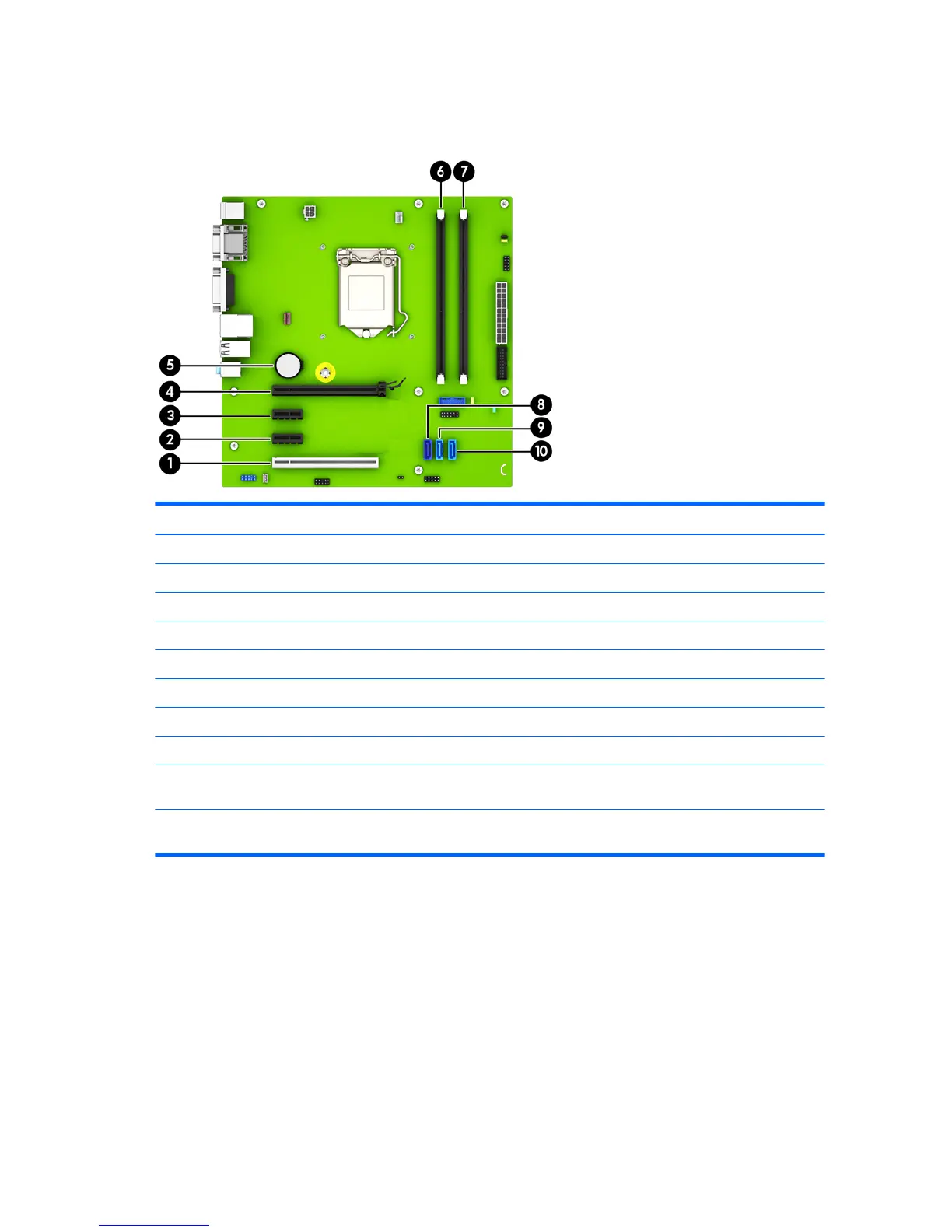

System board connections (ProDesk 480)
Refer to the following illustration and table to identify the system board connectors for your model.
No. System Board Connector System Board Label Color Component
1 PCI PCI1 white Expansion Card
2 PCI Express x1 X1PCIEXP2 black Expansion Card
3 PCI Express x1 X1PCIEXP1 black Expansion Card
4 PCI Express x16 X16PCIEXP black Expansion Card
5 Battery BAT black Battery
6 DIMM3 (Channel A) DIMM3 black Memory Module
7 DIMM1 (Channel B) DIMM1 black Memory Module
8 SATA 3.0 SATA0 dark blue Primary Hard Drive
9 SATA 3.0 SATA1 light blue Any SATA Device other than the Primary
Hard Drive
10 SATA 3.0 SATA2 light blue Any SATA Device other than the Primary
Hard Drive
38 Chapter 4 Removal and replacement procedures: Microtower
