Installing a 2.5-inch hard drive

1. Prepare the computer for disassembly (Preparation for disassembly on page 23)

2. Remove the access panel (Access panel on page 24)

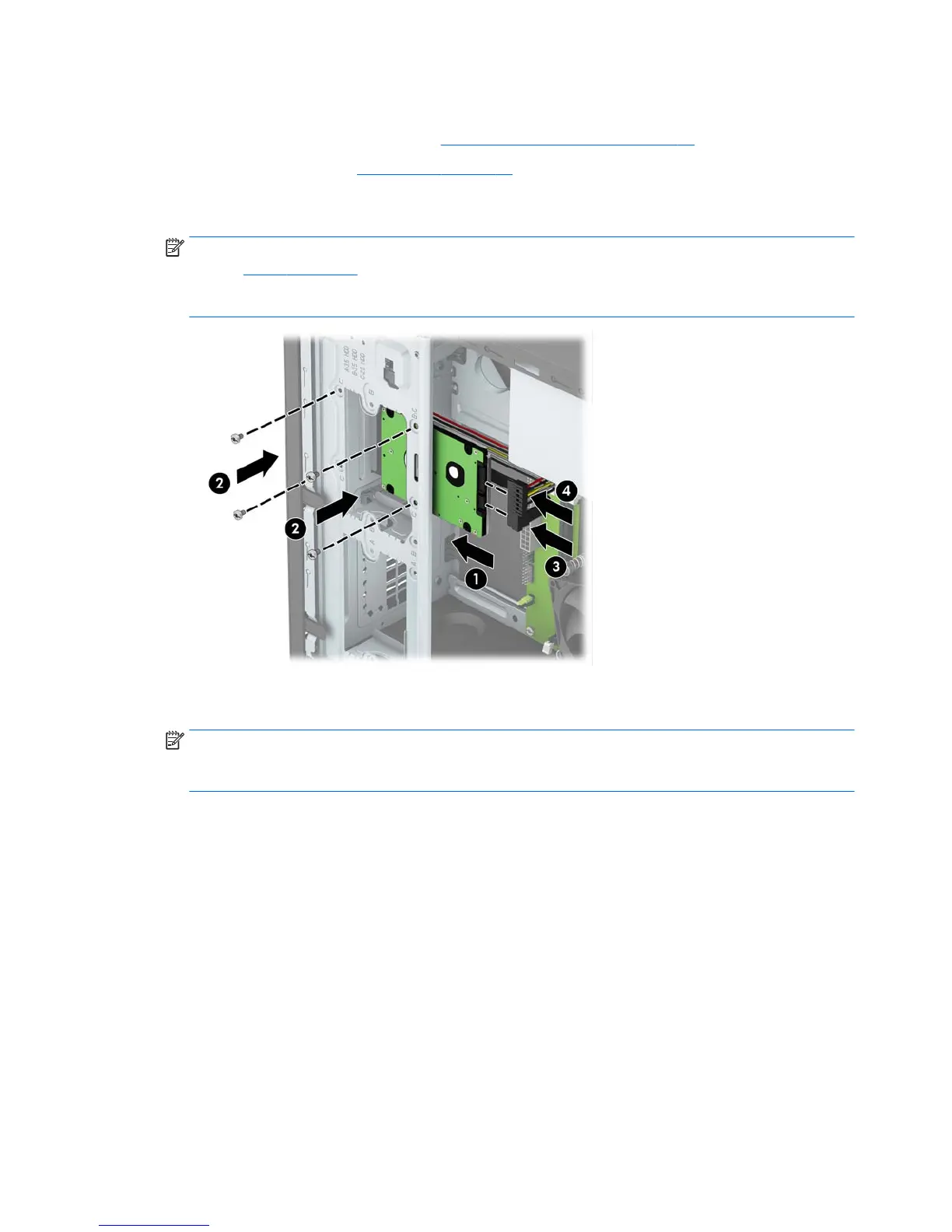

3. Slide the drive into the drive bay (1) and install the four 6-32 mounting screws (2) to secure the drive in

place. Connect the data cable (3) and power cable (4) to the rear of the hard drive.

NOTE: HP has supplied four extra 6-32 mounting screws on the front of the chassis behind the bezel.

Refer to Drives on page 34 for an illustration of the location of the extra mounting screws. When

replacing a hard drive, use the four 6-32 mounting screws that were removed from the old drive to

install the new one.

4. If installing a new drive, connect the opposite end of the data cable to the appropriate system board

connector.

NOTE: You must connect the primary hard drive data cable to the dark blue connector labeled SATA0 to

avoid any hard drive performance problems. If you are adding a second hard drive, connect the data

cable to one of the light blue SATA connectors.

5. Replace the computer access panel.

6. Reconnect the power cord and any external devices, then turn on the computer.

7. Lock any security devices that were disengaged when the access panel was removed.

46 Chapter 4 Removal and replacement procedures: Microtower
