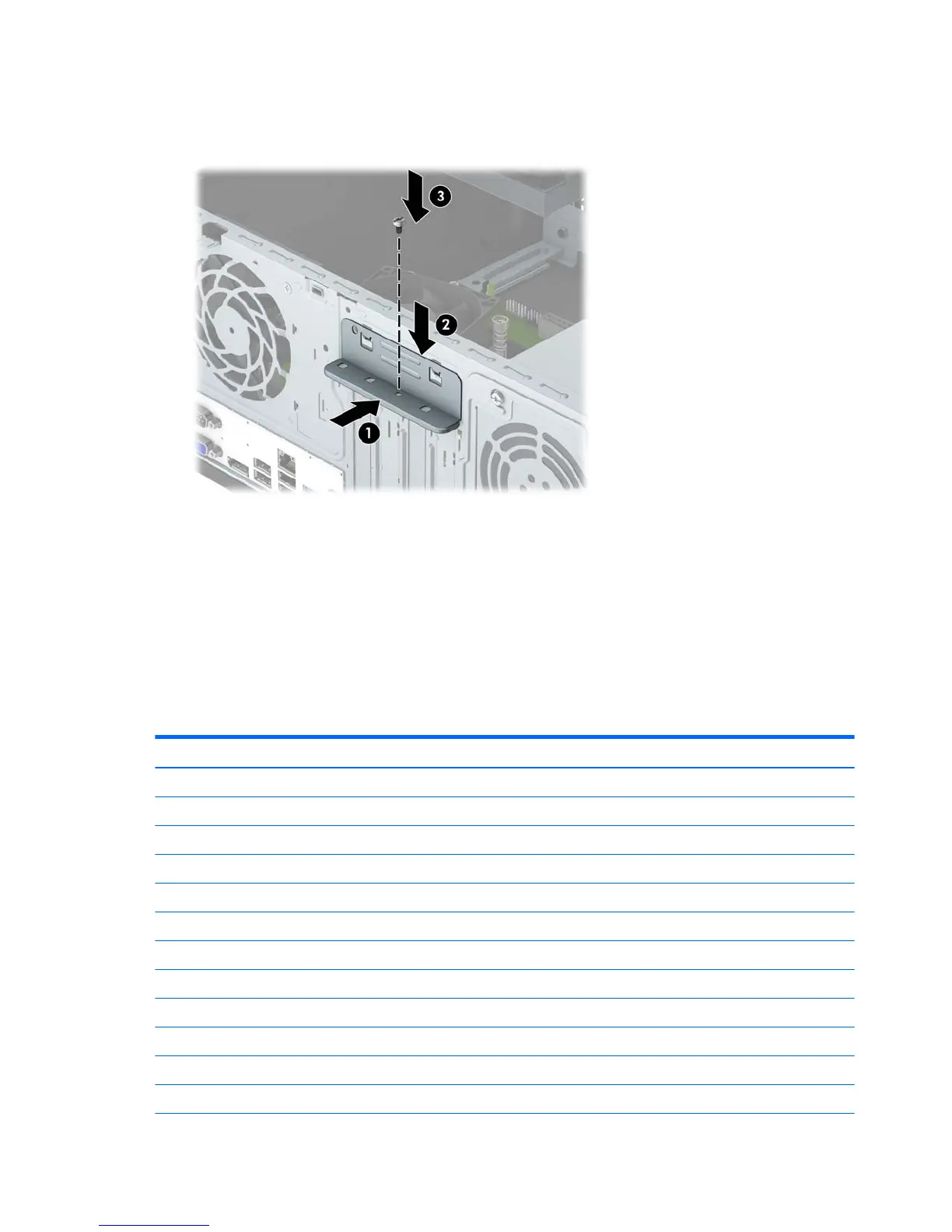

9. Press the expansion card retention latch against the back of the chassis (1) and slide it down (2) so that
the tabs on the back of the latch slide into the notches on the chassis and then replace the screw that
secures the latch (3).
10. Connect external cables to the installed card, if needed. Connect internal cables to the system board, if
needed.
11. Replace the computer access panel.
12. Reconnect the power cord and turn on the computer.
13. Lock any security devices that were disengaged when the computer access panel was removed.
14. Recongure the computer, if necessary.
Drives
Description
Hard drives
2 TB, 7200 rpm, 3.5 inch
1 TB, hybrid SSD, 2.5-inch
1 TB, 7200 rpm, 3.5 inch
500 GB, 7200 rpm, 2.5 inch, self-encrypting (SED)
500 GB, hybrid SSD, 2.5 inch
500 GB, 7200 rpm, 3.5 inch
500 GB, 5400 rpm, FIPS140-2, 2.5 inch
Solid-state drives (SSDs)
512 GB Solid-state Drive (SSD), 2280 PCIe, NVMe
512 GB Solid-state Drive (SSD), 3D NAND
256 GB Solid-state Drive (SSD), self-encrypting (SED)
34 Chapter 4 Removal and replacement procedures: Microtower
