WLAN module

WLAN modules can be installed using a PCI expansion card adapter. First install the WLAN module into the

expansion card adapter, and then install the expansion card into the computer.

Description

Broadcom BCM943228Z 802.11n Bluetooth

Broadcom 802.11n, M.2 Bluetooth, Indonesia

Intel 7265 802.11AC Bluetooth

Intel 3165 802.11AC M.2 Bluetooth

To remove the WLAN module:

1. Prepare the computer for disassembly (Preparation for disassembly on page 23)

2. Remove the access panel (Access panel on page 24)

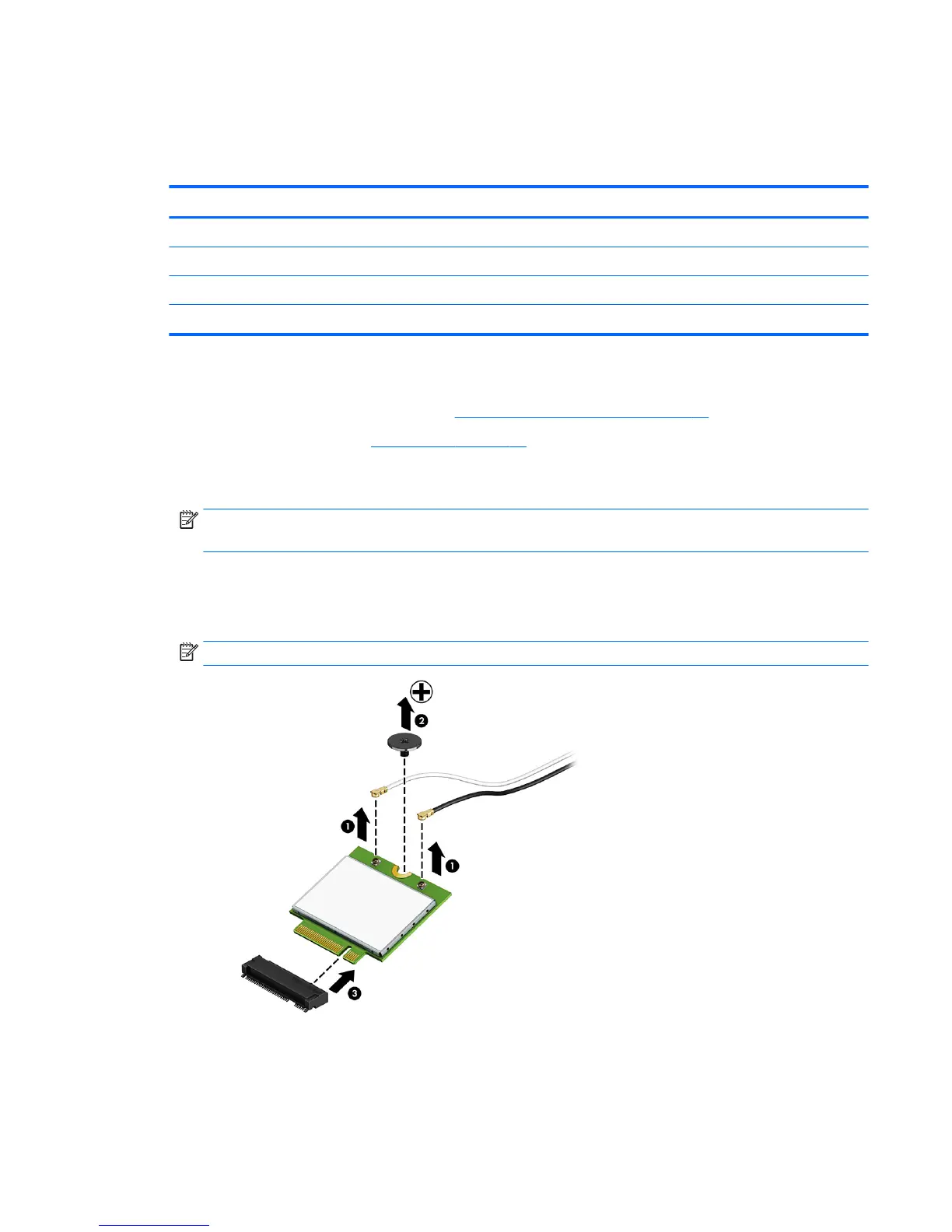

3. On the expansion card adapter, disconnect the WLAN antenna cables (1) from the terminals on the

WLAN module.

NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled “1”.

The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”.

4. Remove the Phillips PM2.0×4.0 screw (2) that secures the WLAN module to the computer. (The edge of

the module opposite the slot rises away from the computer.)

5. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.

Reverse this procedure to install the WLAN module.

WLAN module 47
