HP ProDesk 490 G3 MT User Manual

System board connections (ProDesk 490)

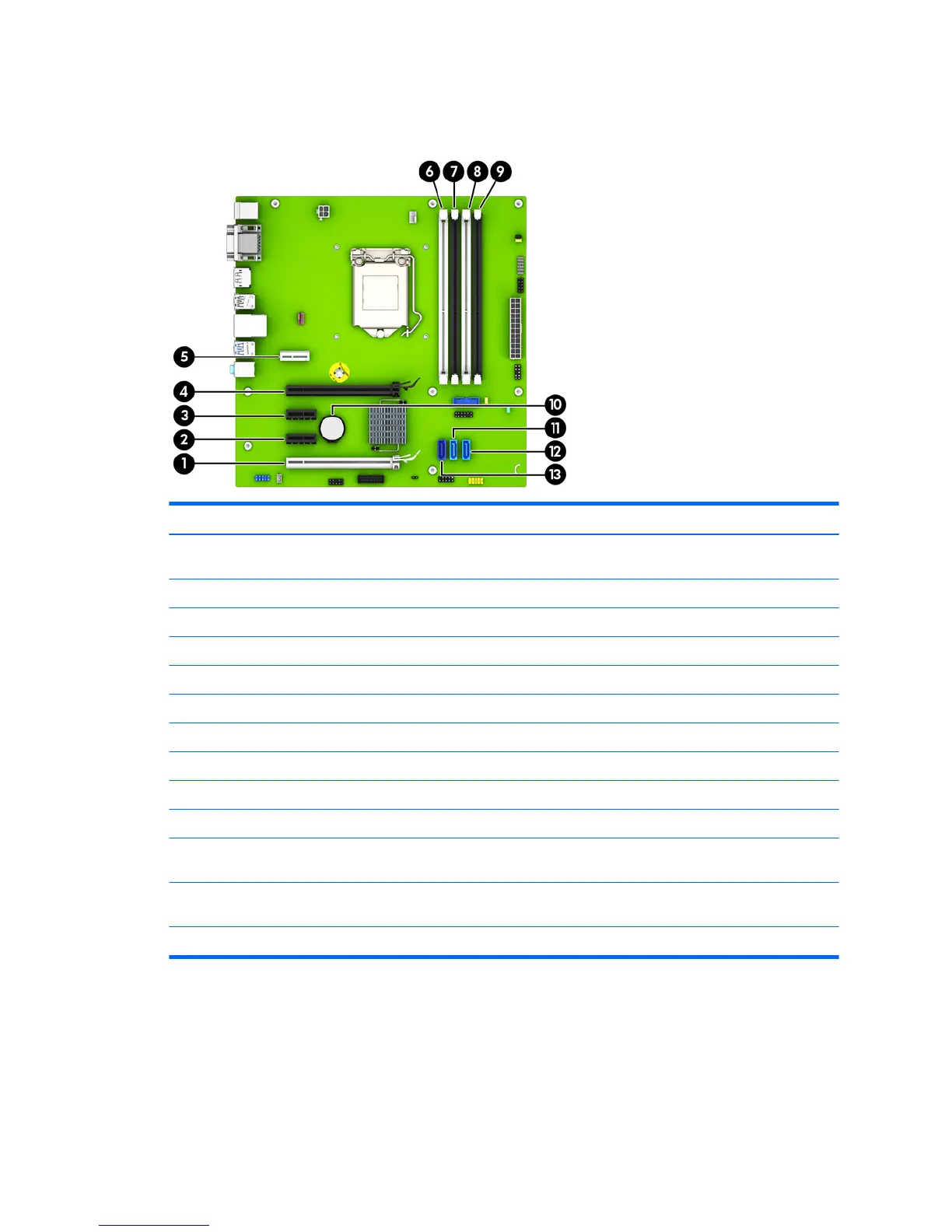

Refer to the following illustration and table to identify the system board connectors for your model.
No. System Board Connector System Board Label Color Component
1 PCI Express x16 downshifted to
a x4
X4PCIEXP white Expansion Card
2 PCI Express x1 X1PCIEXP2 black Expansion Card
3 PCI Express x1 X1PCIEXP1 black Expansion Card
4 PCI Express x16 X16PCIEXP black Expansion Card
5 DisplayPort DISPLAY white DisplayPort Expansion Card
6 DIMM4 (Channel A) DIMM4 white Memory Module
7 DIMM3 (Channel A) DIMM3 black Memory Module
8 DIMM2 (Channel B) DIMM2 white Memory Module
9 DIMM1 (Channel B) DIMM1 black Memory Module
10 Battery BAT black Battery
11 SATA 3.0 SATA1 light blue Any SATA Device other than the Primary
Hard Drive
12 SATA 3.0 SATA2 light blue Any SATA Device other than the Primary
Hard Drive
13 SATA 3.0 SATA0 dark blue Primary Hard Drive
Drives 39

HP ProDesk 490 G3 MT Specifications

General

Operating System	Windows 10 Pro
Form Factor	Microtower
Memory Slots	2 DIMM
Memory Type	DDR4-2133
Maximum Memory	32 GB
Weight	7.05 kg
Processor	Intel Core i5, i3
RAM	Up to 32GB DDR4
Storage	500 GB HDD
Graphics	Intel HD Graphics 530
Chipset	Intel H110 Chipset
Internal Drive Bays	1 x 3.5"
External Drive Bays	1 x 5.25"
Expansion Slots	1 PCIe x16
Ports (Front)	2 USB 3.0
Ports (Rear)	1 VGA
Audio	Realtek ALC221
Optical Drive	DVD-Writer
