HP ProDesk 490 G3 MT User Manual

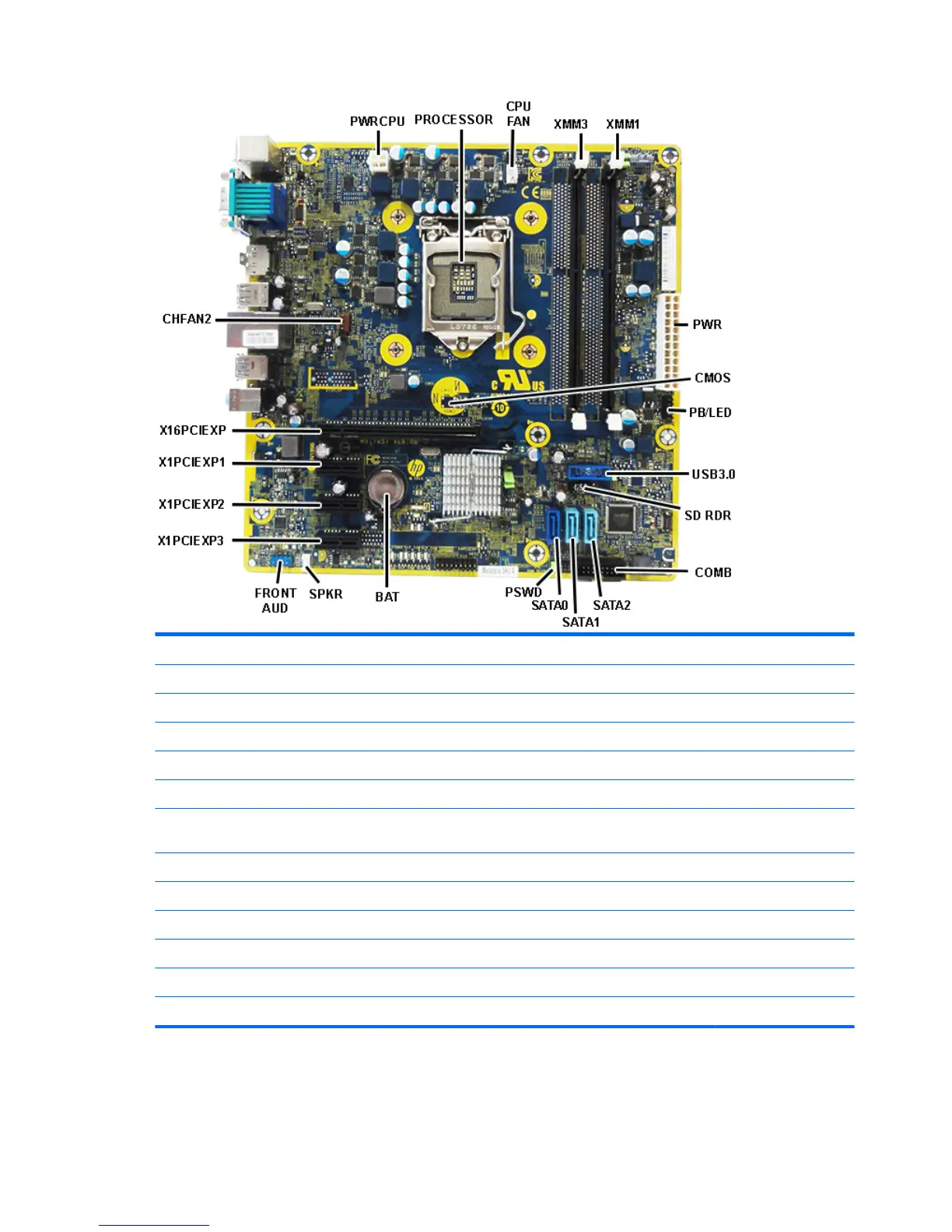

Sys Bd Label Color Component Sys Bd Label Color Component
PWRCPU White Processor power SATA1 Light blue Optical Drive
PROCESSOR Silver Processor SATA0 Dark blue Hard drive
CPUFAN White Processor fan PSWD Green Clear system passwords
XMM3 Black Memory module BAT Black RTC battery
XMM1 Black Memory module SPKR White Speaker
PWR White 24-pin main power
connector
FRONT_AUD Blue Front I/O
CMOS Yellow Reset CMOS X1PCIEXP3 Black Expansion card
PB/LED Black Power switch X1PCIEXP2 Black Expansion card
USB3.0 Blue Front I/O X1PCIEXP1 Black Expansion card
SD RDR Black SD card reader X16PCIEXP White Expansion card
COMB Black Optional serial port CHFAN2 Red Chassis fan
SATA2 Light blue Optional SATA drive
64 Chapter 4 Removal and replacement procedures: Microtower

HP ProDesk 490 G3 MT Specifications

General

Operating System	Windows 10 Pro
Form Factor	Microtower
Memory Slots	2 DIMM
Memory Type	DDR4-2133
Maximum Memory	32 GB
Weight	7.05 kg
Processor	Intel Core i5, i3
RAM	Up to 32GB DDR4
Storage	500 GB HDD
Graphics	Intel HD Graphics 530
Chipset	Intel H110 Chipset
Internal Drive Bays	1 x 3.5"
External Drive Bays	1 x 5.25"
Expansion Slots	1 PCIe x16
Ports (Front)	2 USB 3.0
Ports (Rear)	1 VGA
Audio	Realtek ALC221
Optical Drive	DVD-Writer
