To replace the component, reverse the removal procedure.
When adding hard drives to the server, observe the following general guidelines:
• The system automatically sets all drive numbers.
• If only one hard drive is used, install it in the bay with the lowest drive number.
• Drives must be the same capacity to provide the greatest storage space efficiency when drives are
grouped together into the same drive array.
Optional storage controllers provide support for hot-plug capability and drive LEDs. Controller options
are:
• The embedded controller supports non-hot-plug SATA hard drives. Drive LEDs are not supported.
• Optional SATA controllers support hot-plug SATA hard drives and drive LEDs.
• Optional SAS controllers support hot-plug SAS or SATA hard drives and drive LEDs.
NOTE: ACU does not support mixing SAS and SATA drives in the same logical volume.
DIMMs
To remove the component:
1. Power down the server (on page 27).
2. Remove the server from the rack (on page 28).
3. Remove the primary access panel ("Primary access panel" on page 29).

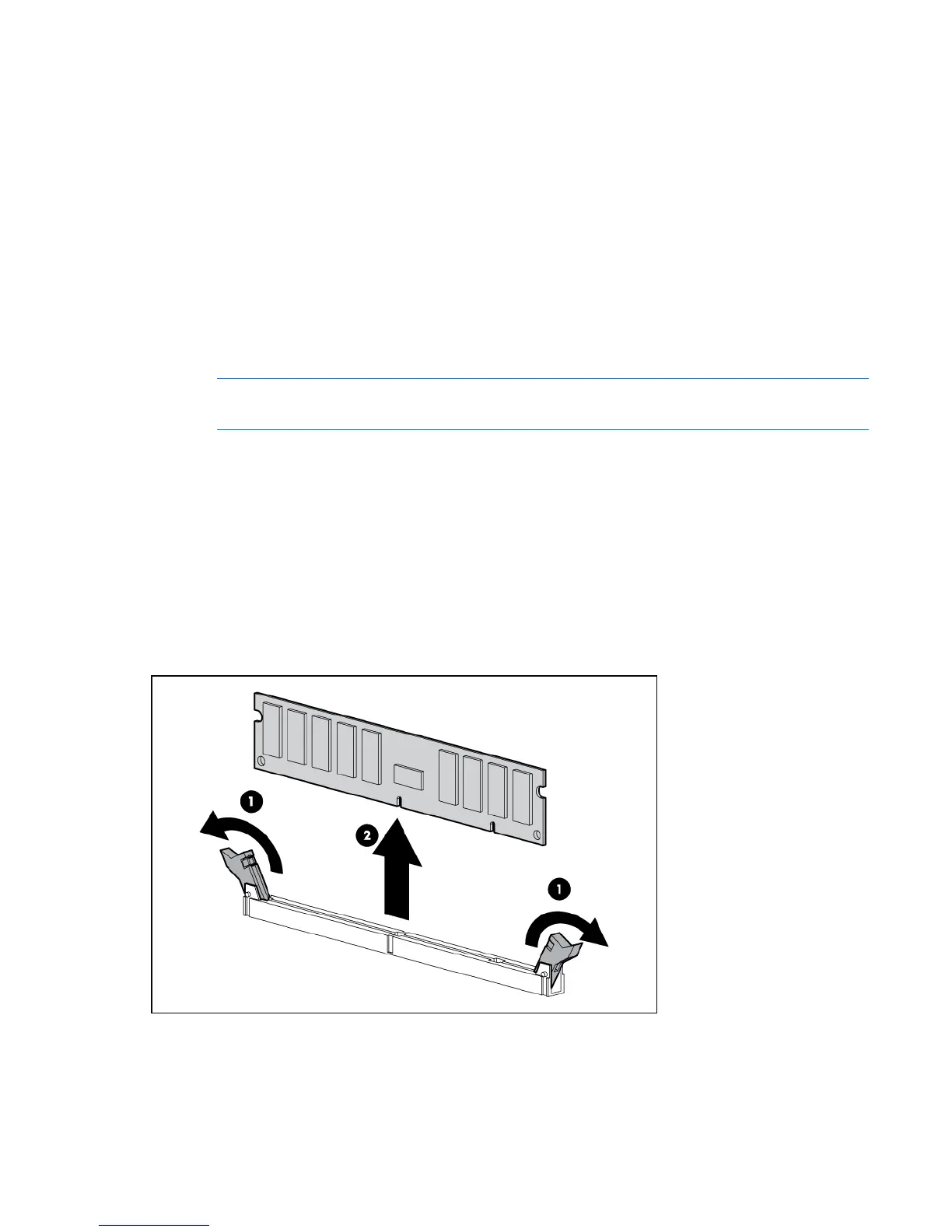

4. Open the DIMM slot latches.
5. Remove the DIMM.
To replace the component, reverse the removal procedure.

HP ProLiant DL320 Generation 5p Specifications

General

Processor Sockets	1
Memory Slots	4
Storage	SATA or SAS
Form Factor	1U rackmount
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000, 3200 series
Memory	Up to 8GB DDR2
Drive Bays	2 x 3.5" Non-hot plug SATA or SAS
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x4
