HP ProLiant DL320 Generation 5p Maintenance And Service Guide

Removal and replacement procedures 50
6.

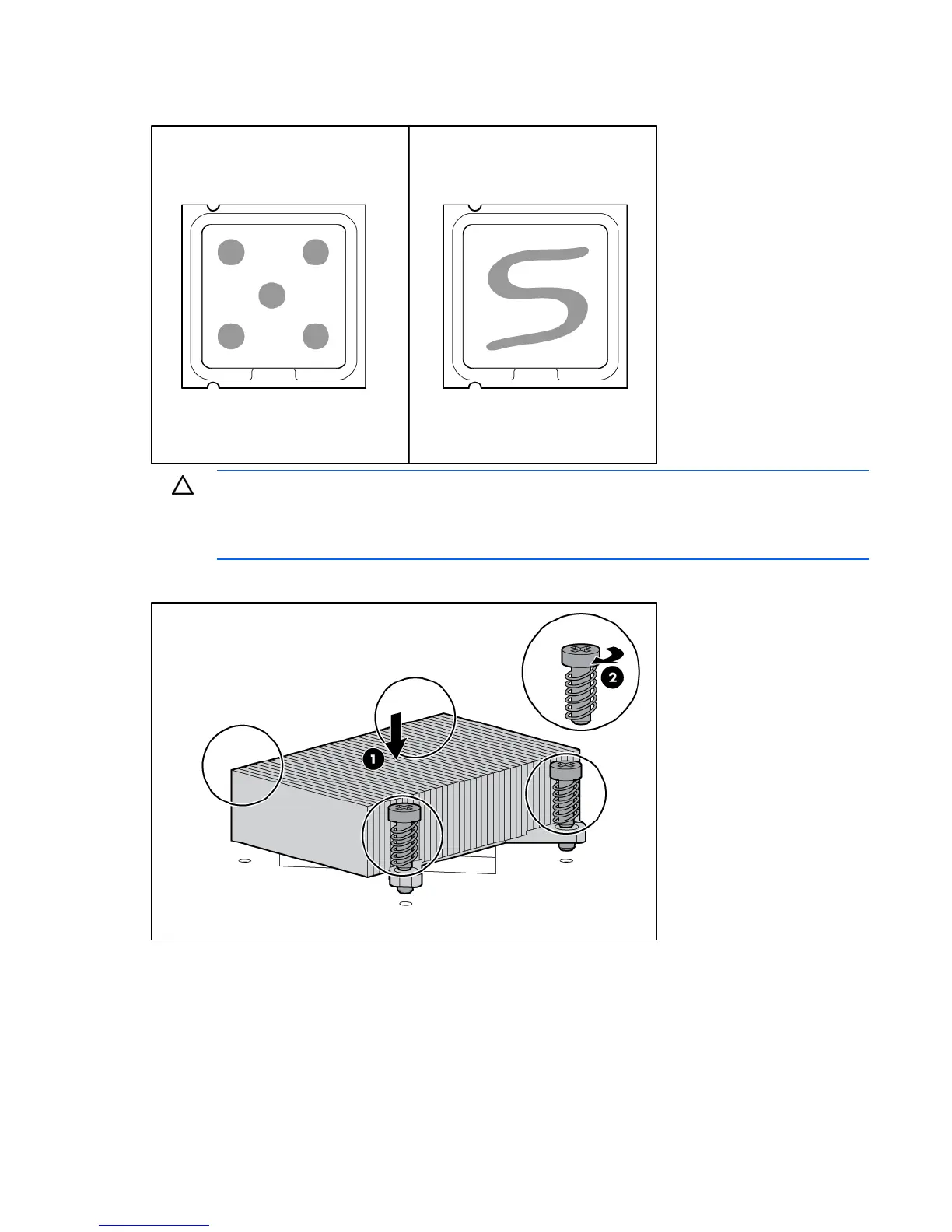

Apply all the grease to the top of the processor in one of the following patterns to ensure even
distribution:
CAUTION: Heatsink retaining screws should be tightened or loosened in diagonally opposite
pairs (in an "X" pattern). Do not overtighten the screws as this can damage the board,
connectors, or screws. Use the wrench supplied with the system to reduce the possibility of
overtightening the screws.
7. Install the heatsink.
8. Install the air baffle ("Processor air baffle" on page 32).
9. Install the access panel ("Primary access panel" on page 29).
Dedicated iLO connector module
1. Power down the server (on page 27).
2. Remove the server from the rack (on page 28).

HP ProLiant DL320 Generation 5p Specifications

General

Processor Sockets	1
Memory Slots	4
Storage	SATA or SAS
Form Factor	1U rackmount
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000, 3200 series
Memory	Up to 8GB DDR2
Drive Bays	2 x 3.5" Non-hot plug SATA or SAS
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x4
