HP ProLiant DL320 Generation 5p Maintenance And Service Guide

Component identification 73
System LED and
Color
Internal Health
LED Color
Status
Amber
• DIMM in slot X has reached single-bit correctable error
threshold.
• DIMM in slot X is in a pre-failure condition.
• DIMM in slot X is an unsupported type, but valid
memory exists in another bank.
DIMM failure, all slots
in one bank (amber)
Red No valid or usable memory is installed in the system.
Overtemperature
(amber)
Amber The Health Driver has detected a cautionary temperature
level.
Red The server has detected a hardware critical temperature
level.
Fan module (red) Red The minimum fan requirements are not being met in one or
more of the fan modules. One or more fans have failed or
are missing.
Power supply signal
interlock (amber)
Red The power supply signal cable is not connected to the
system board.
Internal USB connector

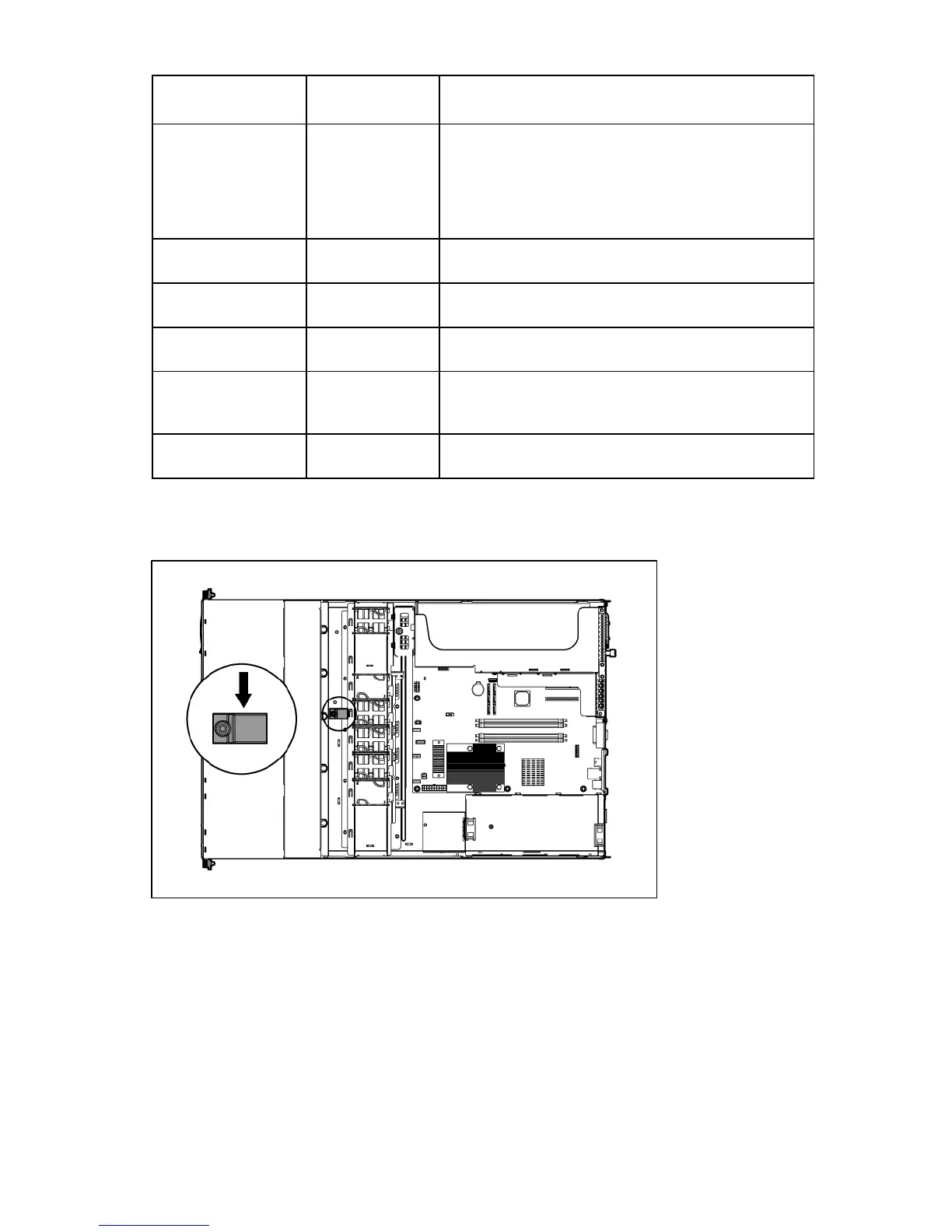

For more information, see "Internal USB functionality (on page 60)."

HP ProLiant DL320 Generation 5p Specifications

General

Processor Sockets	1
Memory Slots	4
Storage	SATA or SAS
Form Factor	1U rackmount
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000, 3200 series
Memory	Up to 8GB DDR2
Drive Bays	2 x 3.5" Non-hot plug SATA or SAS
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x4
