Component identification 69

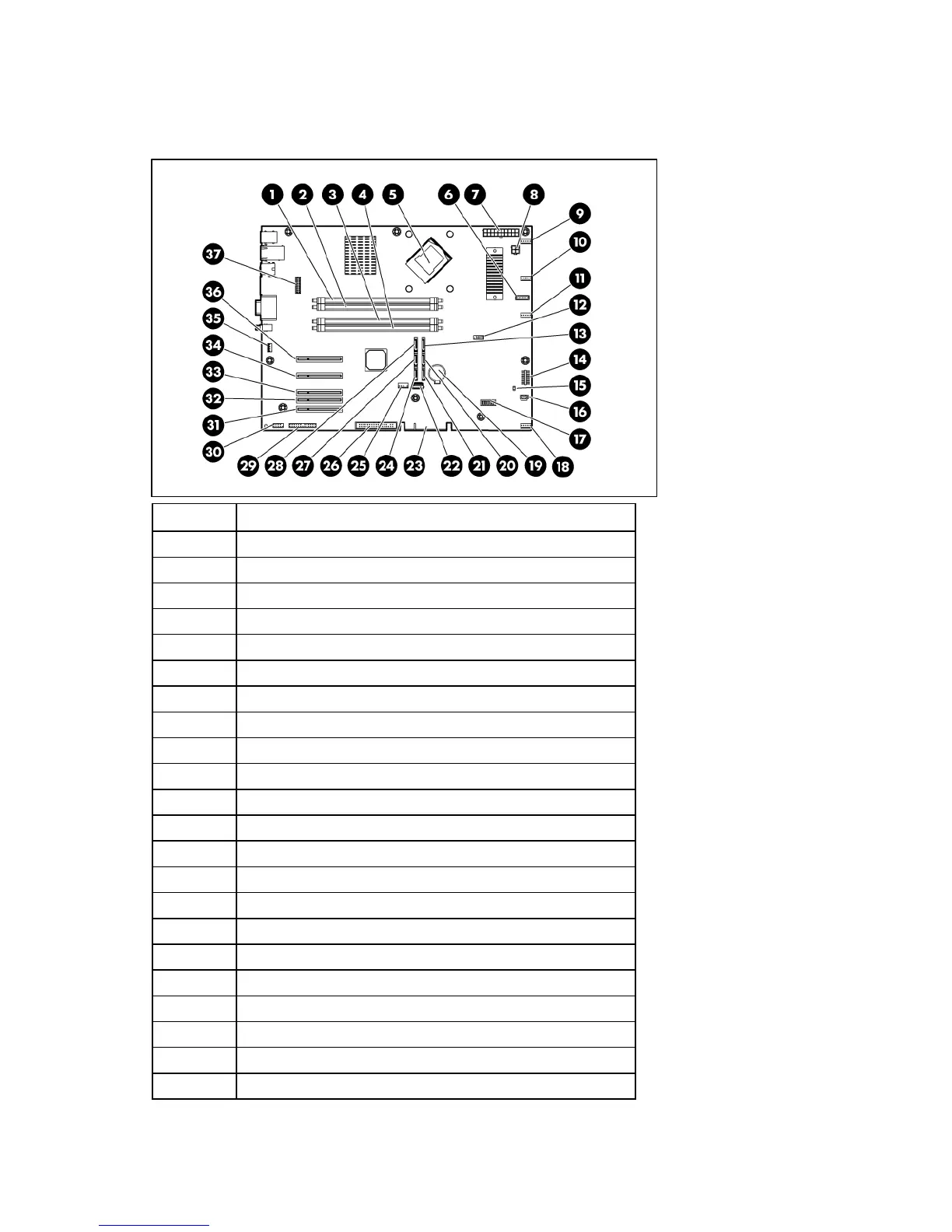

System board components

For this server, some system board slots and connectors are reserved.

Item Description

1 DIMM slot 1 (bank A)

2 DIMM slot 2 (bank B)

3 DIMM slot 3 (bank A)

4 DIMM slot 4 (bank B)

5 Processor socket

6 Reserved

7 System power connector

8 Processor power connector

9 Fan 1 connector

10 Fan 2 connector

11 Fan 3 connector

12 Front USB cable connector

13 SATA connector 2 (hard drive)

14 Front panel LED connector

15 NMI jumper

16 Reserved

17 System maintenance switch

18 Fan 4 connector

19 System battery

20 SATA connector 4 (hard drive)

21 SATA connector 6 (optical drive)*

22 Reserved
