Removal and replacement procedures 38

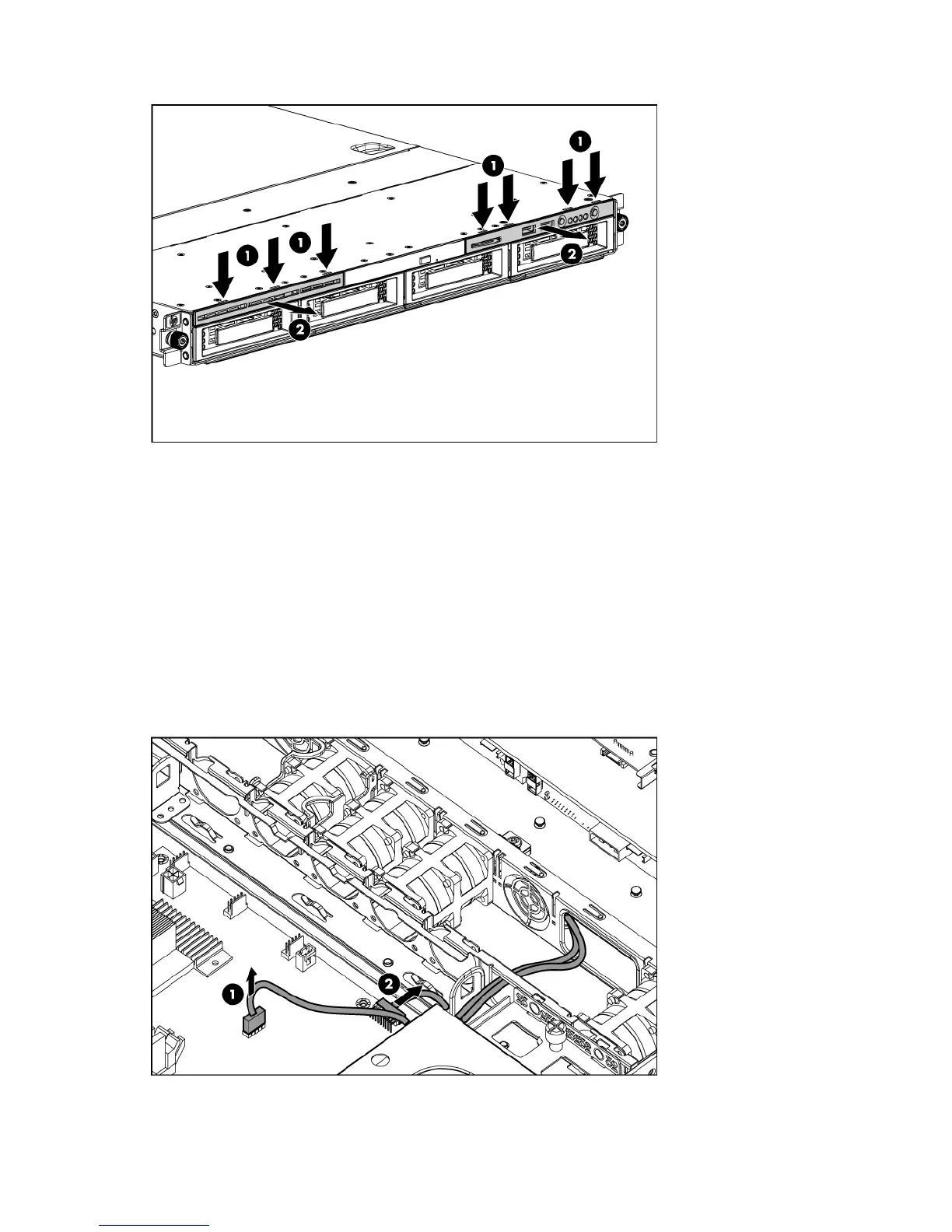

Four-bay models

To replace the component, reverse the removal procedure.

Front I/O assembly

To remove the component:

1. Power down the server (on page 27).

2. Remove the server from the rack (on page 28).

3. Remove the primary access panel ("Primary access panel" on page 29).

4. Remove the secondary access panel (on page 28).

5. Remove the bezel ("Bezel" on page 36).

6. Disconnect the front I/O assembly cable.
