Removal and replacement procedures 36
3.
Remove the primary access panel ("Primary access panel" on page 29).
4. Remove the secondary access panel (on page 28).
5. Disconnect cables from the hard drive cage ("Cabling overview" on page 75).

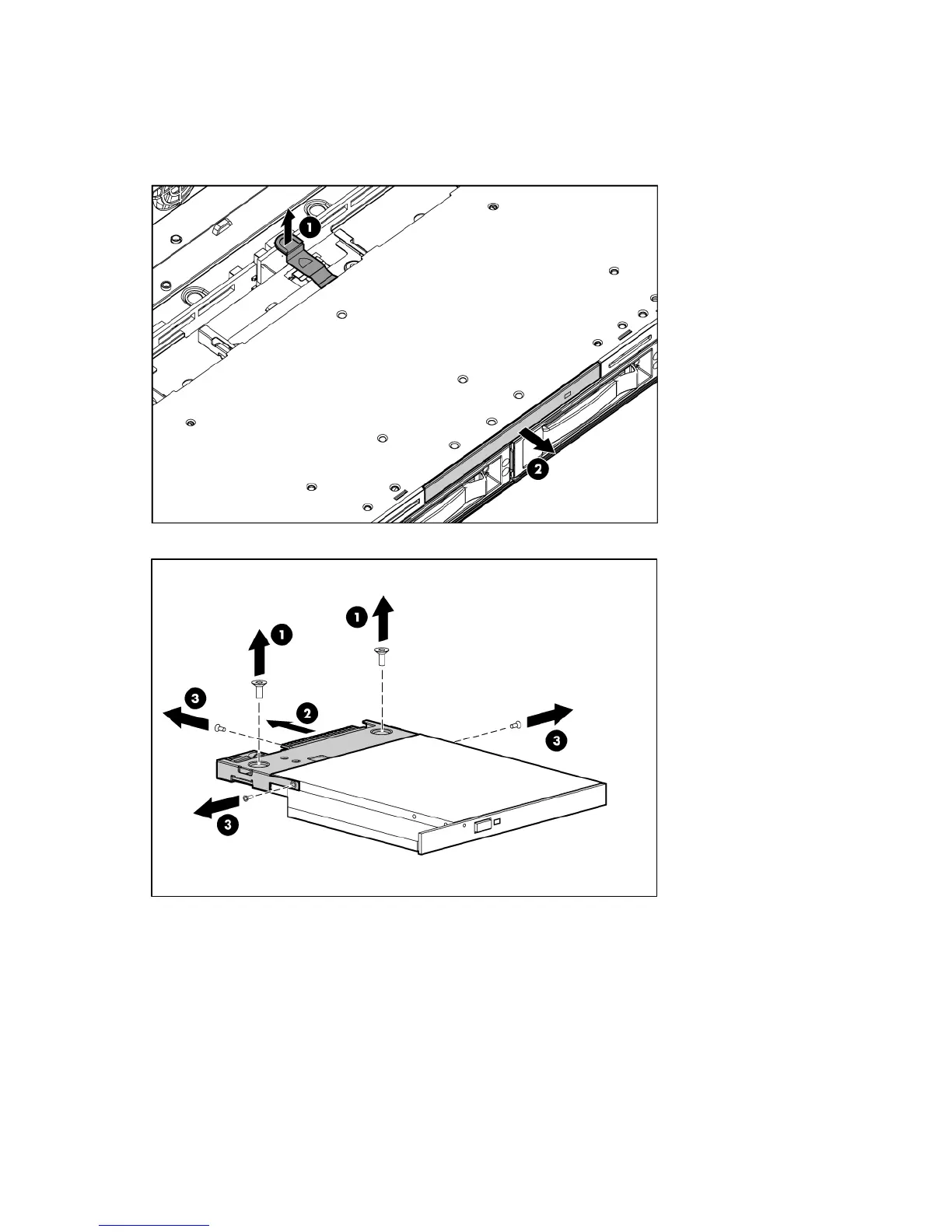

6. Remove the 9.5-mm optical drive assembly.
7. Remove the interposer board and bracket.
To replace the component, reverse the removal procedure.
Bezel
1. Power down the server (on page 27).
2. Remove the server from the rack (on page 28).
3. Remove all hard drive blanks ("Hard drive blank" on page 29).
4. Remove all hard drives ("Hard drive" on page 30).
