Removal and replacement procedures 40
o

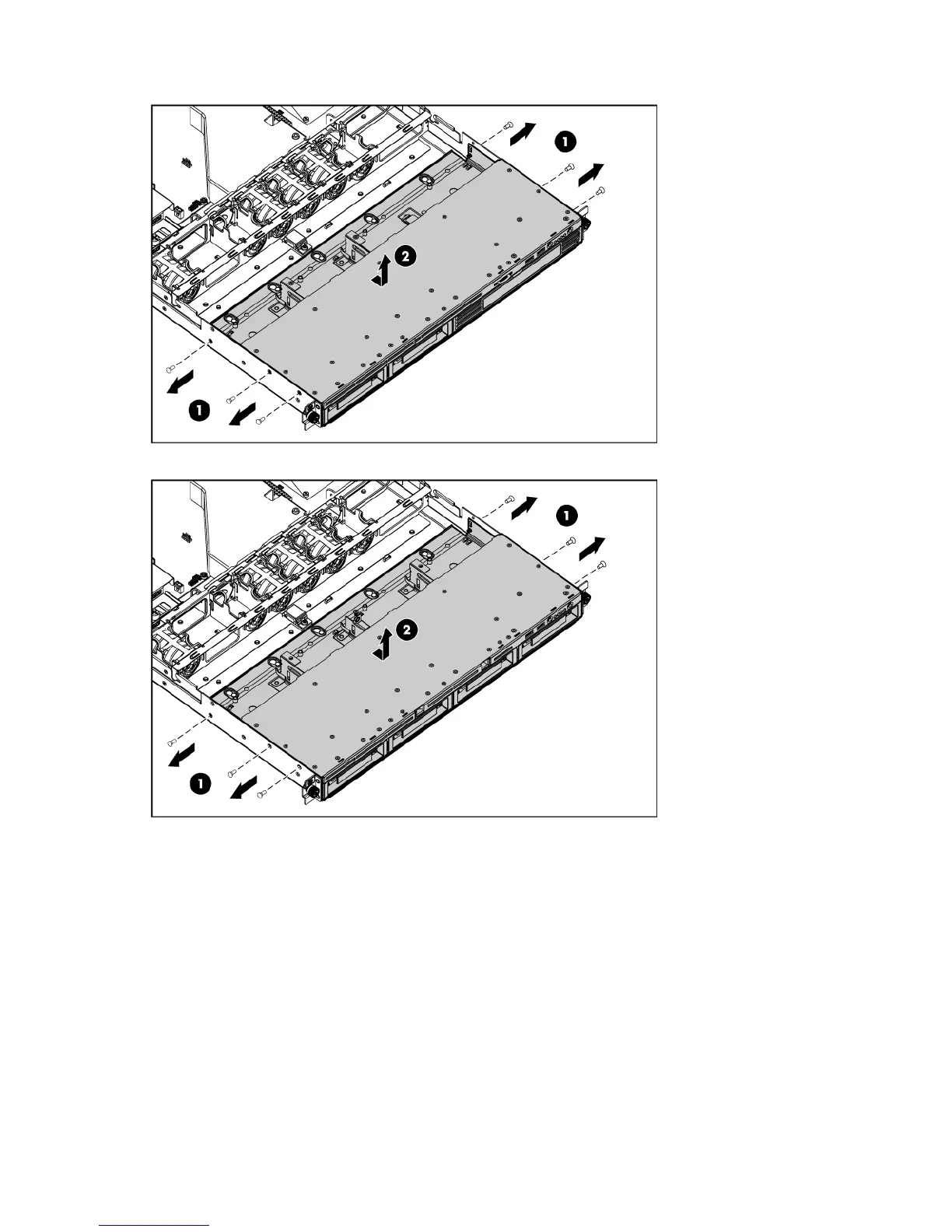

Two-bay models
o Four-bay models
13. Remove the SAS/SATA backplane ("SAS/SATA backplane" on page 40).
To replace the component, reverse the removal procedure.
SAS/SATA backplane
To remove the component:
1. Power down the server (on page 27).
2. Remove the server from the rack (on page 28).
3. Remove the primary access panel ("Primary access panel" on page 29).
4. Remove the secondary access panel (on page 28).
5. Disconnect the hard drive cables from the system board.
