HP ProLiant DL320 Generation 5p Maintenance And Service Guide

Component identification 68
Item Description
8 UID button/LED
9 Video connector
10 Dedicated iLO 2 management port (optional)
11 10/100/1000 NIC 1/shared iLO 2 management port
12 Keyboard connector
PCI expansion slot definitions
For this server model, PCI expansion slots 1-3 and 6-7 are reserved.
Slot Type Length Connector Interconnect
4 PCI Express Full x8 x8
4 Optional PCI-X Full 133 MHz/3.3. V 64 bit
5 PCI Express* Half x8 x1
*x8 PCI Express cards are supported, but will run at x1 speeds.

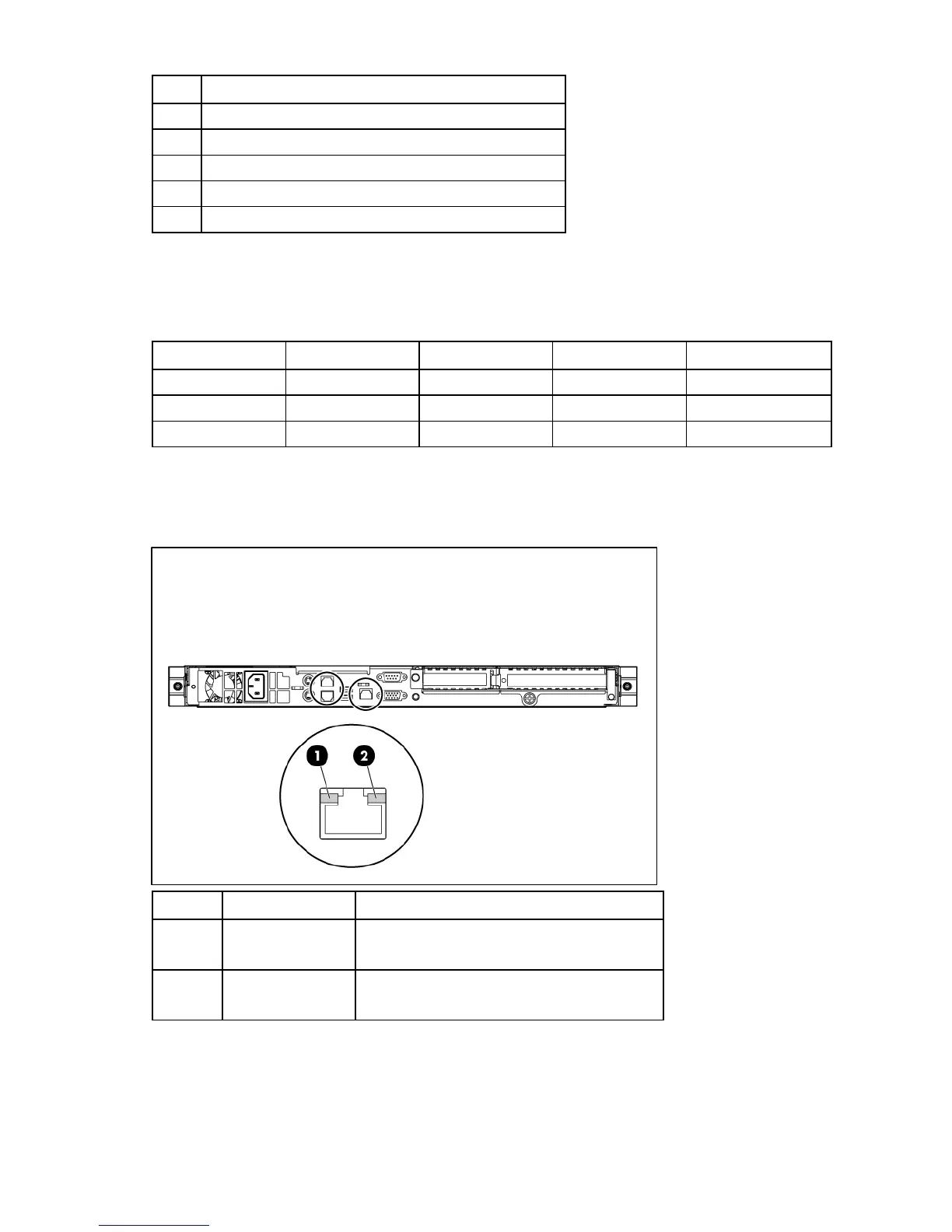

Rear panel LEDs
Item Description Status
1 NIC/iLO 2 activity Green or flashing green = Activity exists.
Off = No activity exists.
2 NIC/iLO 2 link Green = Link exists.
Off = No link exists.

HP ProLiant DL320 Generation 5p Specifications

General

Processor Sockets	1
Memory Slots	4
Storage	SATA or SAS
Form Factor	1U rackmount
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000, 3200 series
Memory	Up to 8GB DDR2
Drive Bays	2 x 3.5" Non-hot plug SATA or SAS
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x4
