Component identification 66
Item Description Status
4 NIC 2 link/activity LED Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No network link exists.
If power is off, the front panel LED is not active. View the LEDs on
the RJ-45 connector. See "Rear panel LEDs (on page 68)."
5 Drive activity LED Green = Drive activity is normal.
Amber = Drive failure has occurred.
Off = No drive activity exists.
6 Power On/Standby button
and system power LED
Green = System is on.
Amber = System is shut down, but power is still applied.
Off = Power cord is not attached or power supply failure has
occurred.

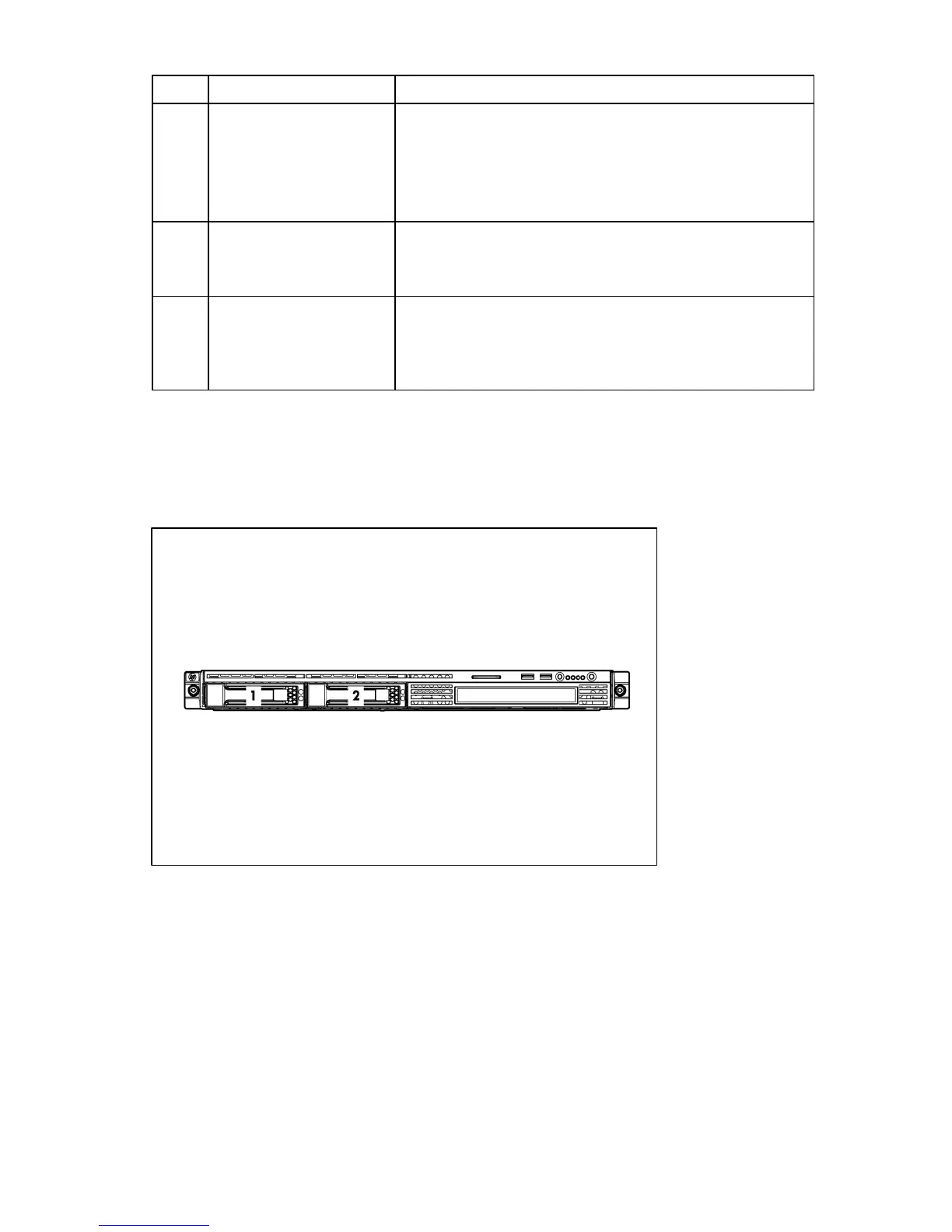

SATA device numbers
SATA device numbers (standard configuration)
