Cabling 77

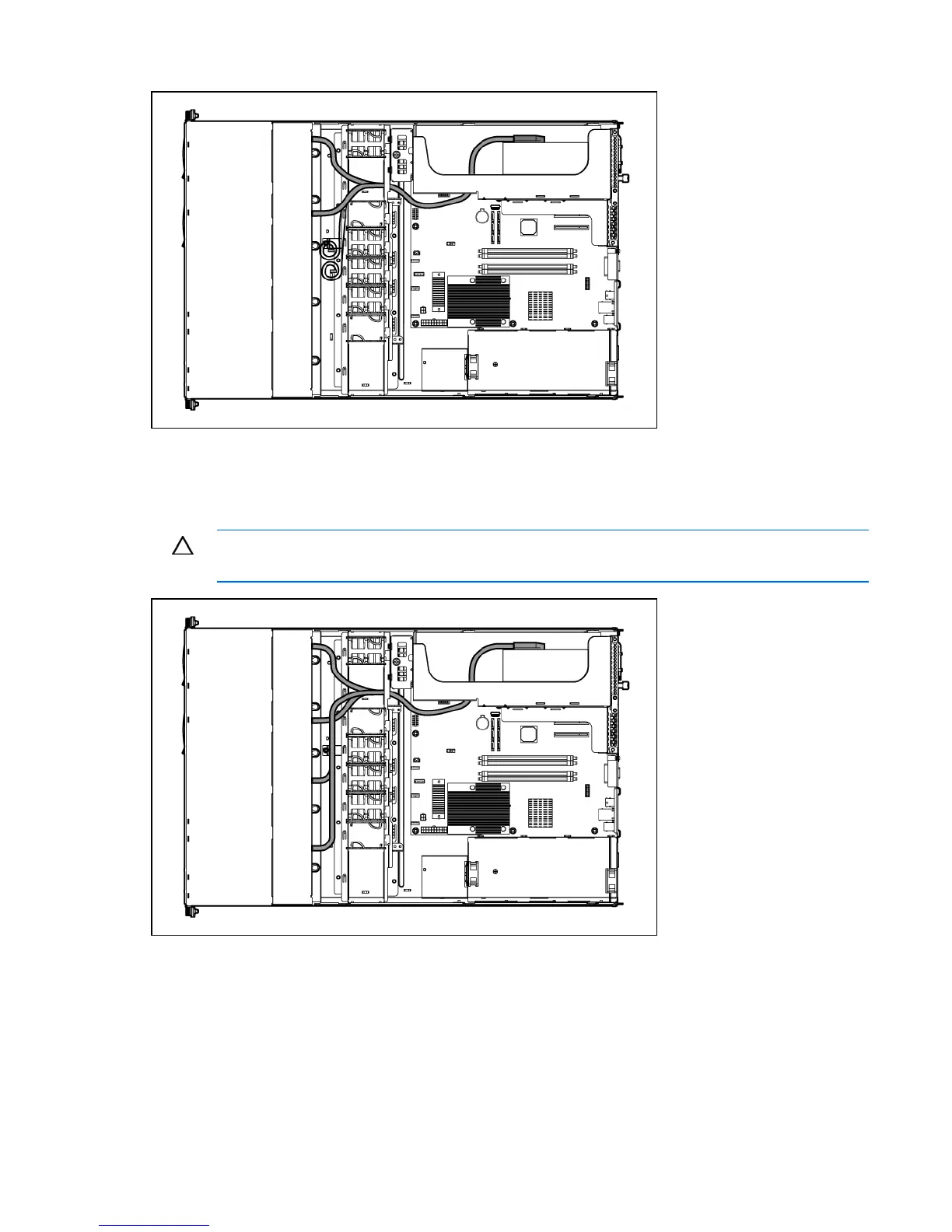

Optional SAS controller cabling (optional hard drive cage
configuration)
CAUTION: When routing cables, always be sure that the cables are not in a position where
they can be pinched or air flow can be blocked.
