HP ProLiant DL360 Gen9 - Rear Panel Components

Component identification 12
Systems Insight
Display LED and
color
Health LED
System power
LED
Status
that power supply is in standby.
•
Power supply fault
•
System board fault
Power supply (amber)
Amber
Green
One or more of the following conditions may
exist:
•
Redundant power supply is installed
and only one power supply is functional.
•
AC power cord is not plugged into
redundant power supply.
•
Redundant power supply fault
•
Power supply mismatch at POST or
power supply mismatch through
hot-plug addition
Power cap (off)
—
Amber
Standby
Power cap (green)
—
Flashing green
Waiting for power
Power cap (green)
—
Green
Power is available.
Power cap (flashing
amber)
—
Amber
Power is not available.
IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is
required. Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by
replacing each DIMM in a bank with a known working DIMM.

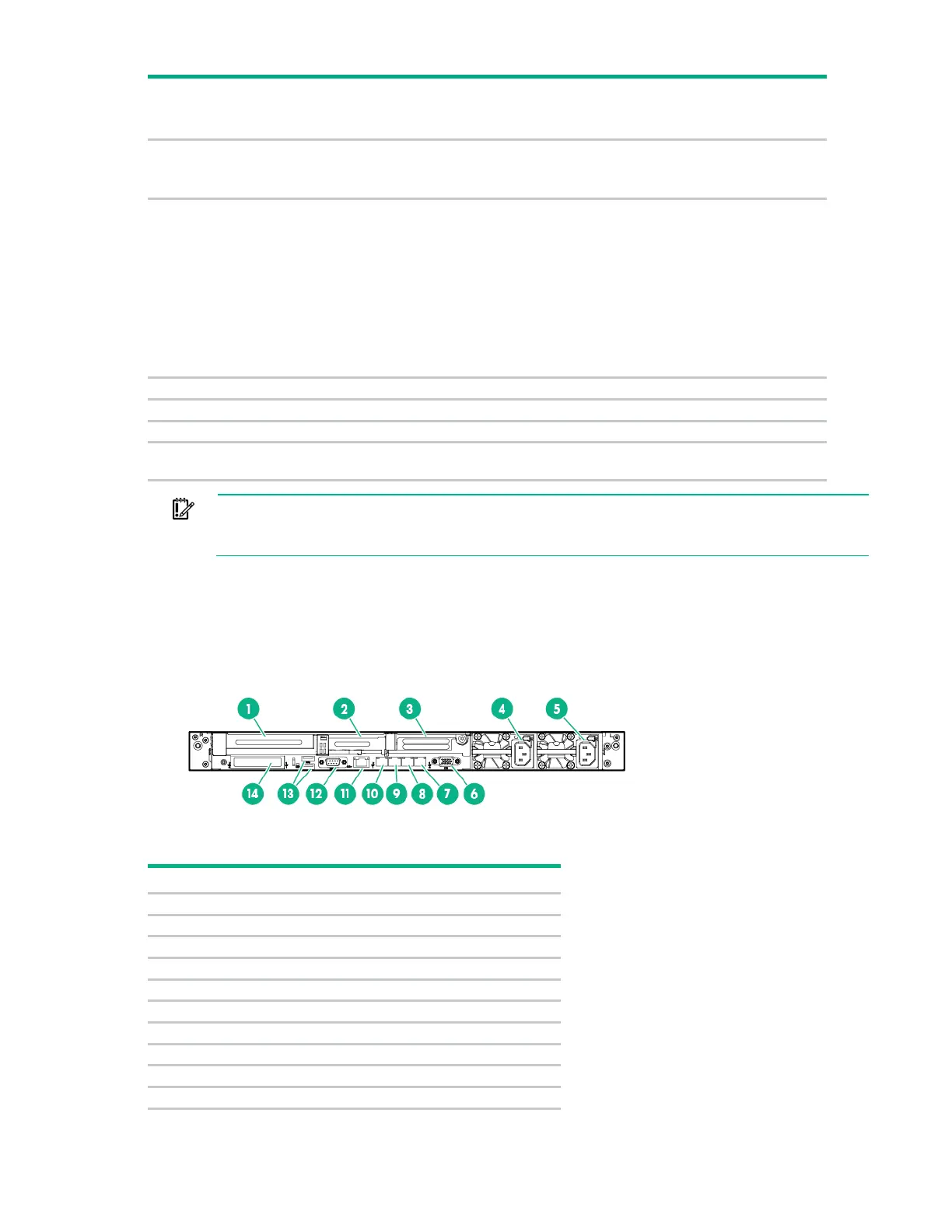

Rear panel components
Item
Description
1
Slot 1 PCIe3 x16 (16, 8, 4, 1)
2
Slot 2 PCIe 3 x8 ( 8, 4, 1)
3
Slot 3 PCIe 3 x16 ( 16, 8, 4, 1)*
4
Power supply 2
5
Power supply 1
6
Video connector
7
NIC connector 4
8
NIC connector 3
9
NIC connector 2
10
NIC connector 1
