Component identification 13
Item
Description
11
iLO 4 connector
12
Serial connector (optional)
13
USB 3.0 connectors
14
FlexibleLOM bay
*The slot 3 PCIe 3 riser is optional and requires a second processor before installation.

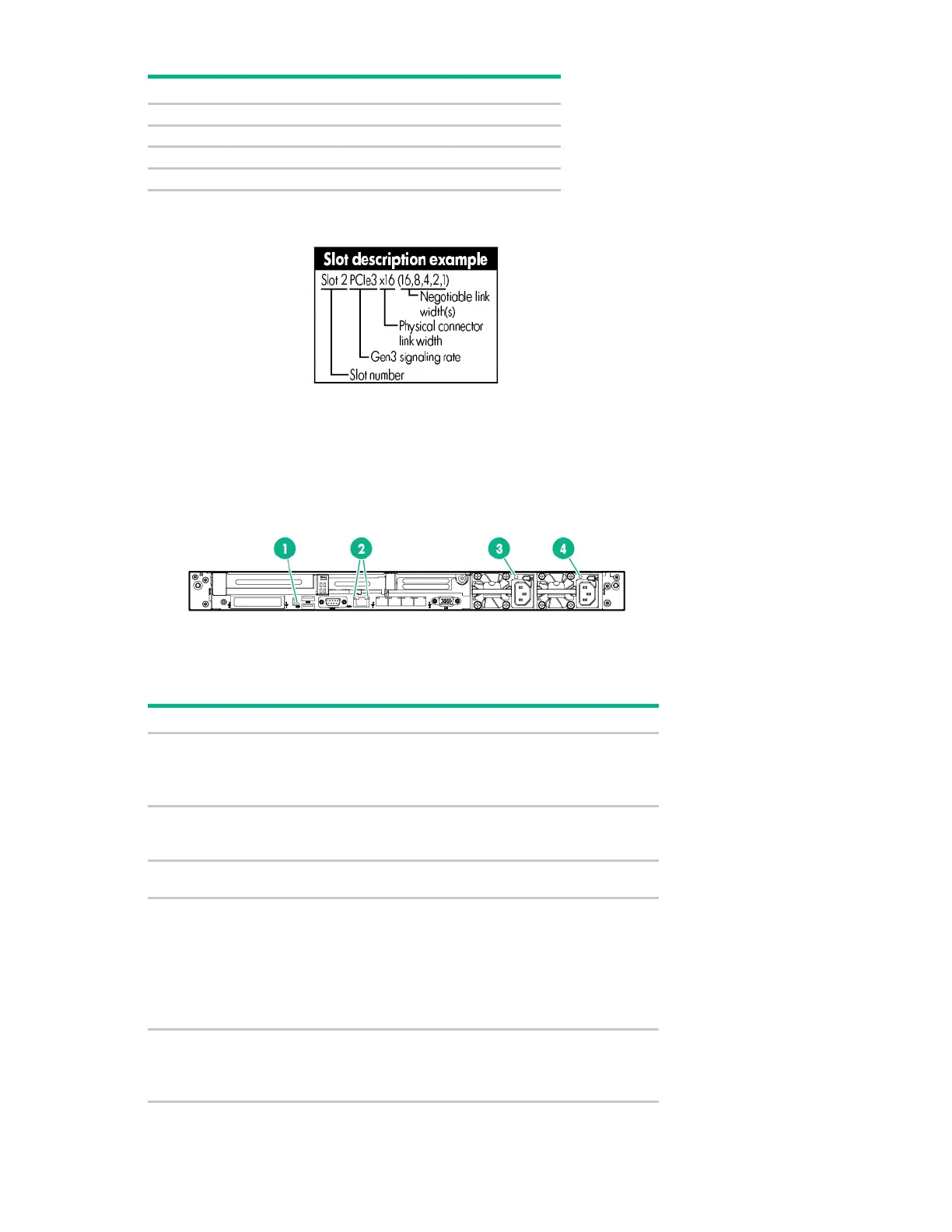

Rear panel LEDs and buttons
Item
Description
Status
1
UID LED
Solid blue = Identification is activated.
Flashing blue = System is being managed
remotely.
Off = Identification is deactivated.
2L
iLO 4/standard NIC
activity LED
Solid green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
2R
iLO 4/standard NIC
link LED
Solid green = Link exists.
Off = No link exists.
3
Power supply 2
LED
Solid green = Normal
Off = One or more of the following conditions
exists:
•
AC power unavailable
•
Power supply failed
•
Power supply in standby mode
•
Power supply exceeded current limit
4
Power supply 1
LED
Solid green = Normal
Off = One or more of the following conditions
exists:
• AC power unavailable
