HP ProLiant DL360 Gen9 - System Board Components

Component identification 14
Item
Description
Status
•
Power supply failed
•
Power supply in standby mode
•
Power supply exceeded current limit

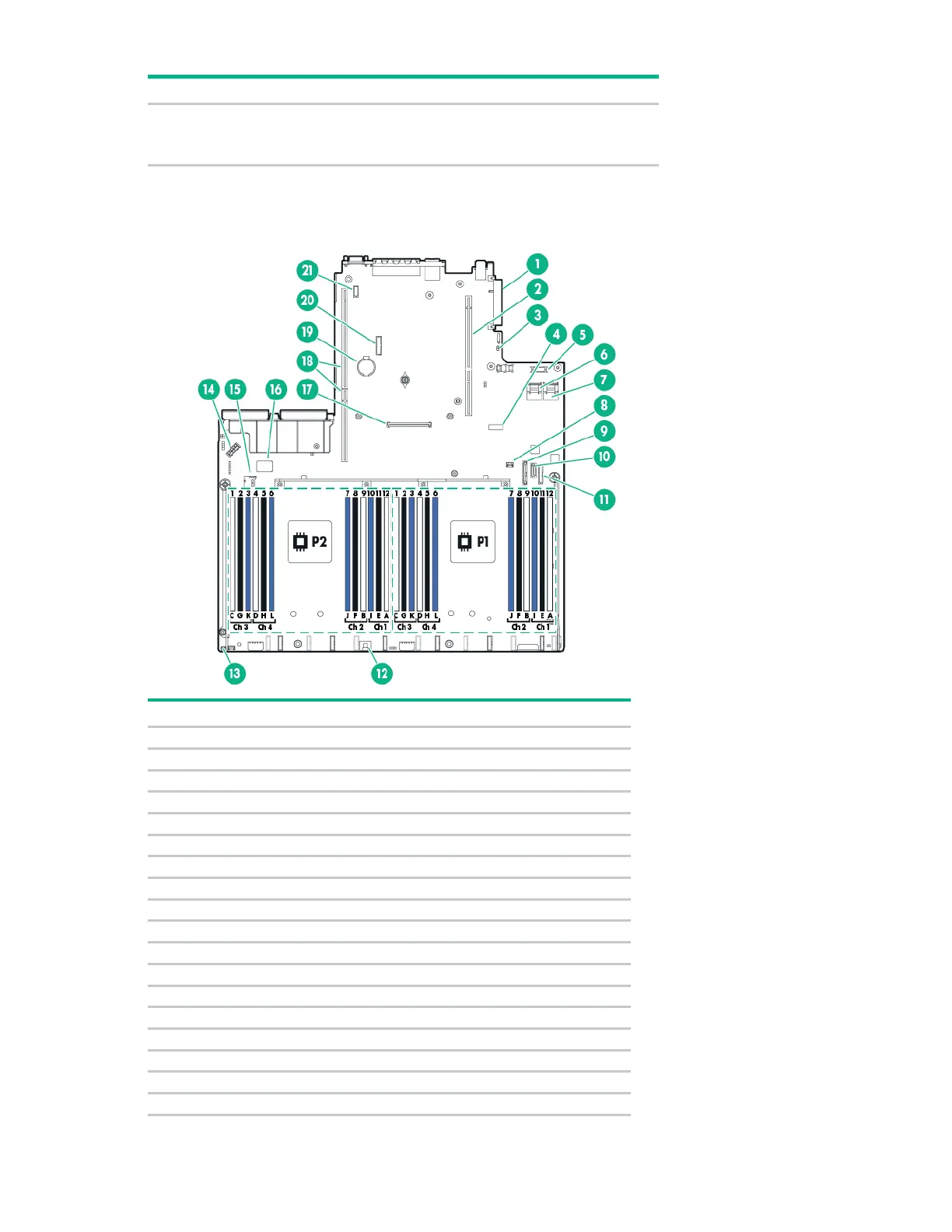

System board components
Item
Description
1
FlexibleLOM connector
2
Primary (processor 1) PCI riser connector
3
NMI jumper
4
System maintenance switch
5
Front VGA/USB 2.0 connector
6
x4 SATA port 1
7
x4 SATA port 2
8
Backplane presence detect connector
9
Optical/SATA port 5
10
SATA port 4
11
Front power/USB 3.0 connector
12
HPE Smart Storage Battery connector
13
Optional Location Discovery Services connector
14
Drive backplane power connector
15
microSD card slot
16
Dual internal USB 3.0 connector
17
Smart Array/HBA connector
18
Secondary (processor 2) PCI riser connector
