Component identification 18

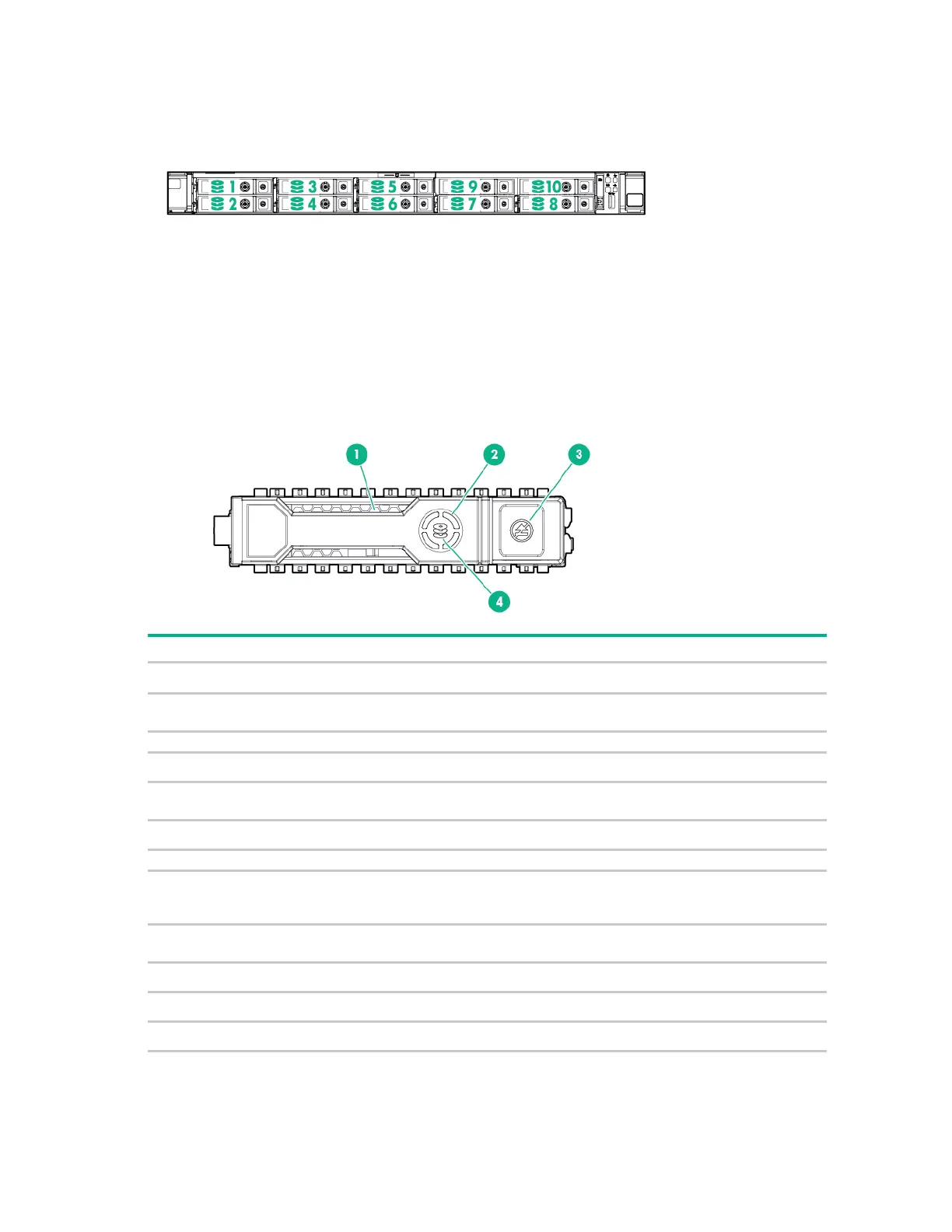

• 10SFF configurations
With the 10SFF (6 NVMe + 4 SAS/SATA) Express Bay Enablement Option, the server supports
SAS, SATA, and PCIe-based NVMe drives in the following locations:
o Bays 1 through 4 support SFF SAS and SATA drives only
o Bays 5 through 10 support SFF PCIe-based NVMe drives only
Hot-plug SATA/SAS drive LED definitions
Item LED Status Definition
1
Locate
Solid blue
The drive is being identified by a host application.
Flashing blue
The drive carrier firmware is being updated or requires an
update.
2
Activity ring
Rotating green
Drive activity
Off
No drive activity
3
Do not remove*
Solid white
Do not remove the drive. Removing the drive causes one or
more of the logical drives to fail.
Off
Removing the drive does not cause a logical drive to fail.
4
Drive status
Solid green
The drive is a member of one or more logical drives.
Flashing green
The drive is rebuilding or performing a RAID migration, strip size
migration, capacity expansion, or logical drive extension, or is
erasing.
Flashing
amber/green
The drive is a member of one or more logical drives and predicts
the drive will fail.
Flashing amber
The drive is not configured and predicts the drive will fail.
Solid amber
The drive has failed.
Off
The drive is not configured by a RAID controller.
