Hardware options installation 91
6.

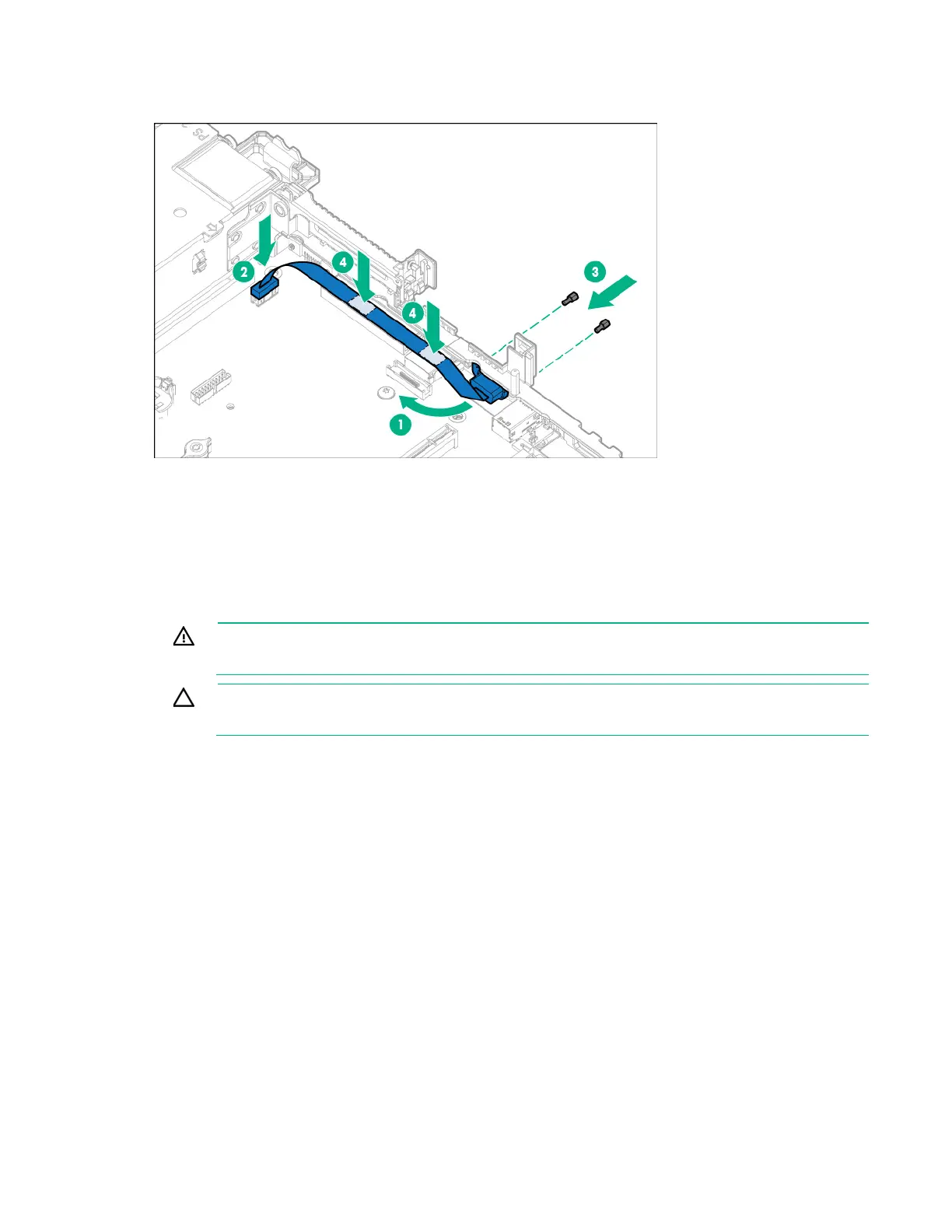

Connect the serial cable option. Then, remove the backing from the double-sided tape and press
down where indicated.
Expansion board options
The server supports PCI Express expansion boards. The server ships with PCIe riser boards and
expansion slots. PCIe expansion boards are supported with optional riser boards.
Removing the expansion slot blanks
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent damage to electrical components, properly ground the server before
beginning any installation procedure. Improper grounding can cause ESD.
1. Back up all server data.
2. Power down the server (on page 21).
3. Do one of the following:
o Extend the server from the rack (on page 21).
o Remove the server from the rack (on page 22).
4. Remove the access panel (on page 22).
5. Disconnect any external cables that are connected to the expansion board.
6. Disconnect any internal cables that are connected to the expansion board.
7. Remove the primary PCI riser cage ("Remove the PCI riser cage" on page 23).
8. Remove the expansion slot blank:
