Hardware options installation 60
To install the component:
1. Back up all server data.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 21).
o Remove the server from the rack (on page 22).
4. Remove the access panel (on page 22).
5. Remove all drives ("Removing a hot-plug SAS or SATA drive" on page 55) and drive blanks
("Removing the hard drive blank" on page 54).
6. Disconnect and remove all cables connected to the drive backplane.

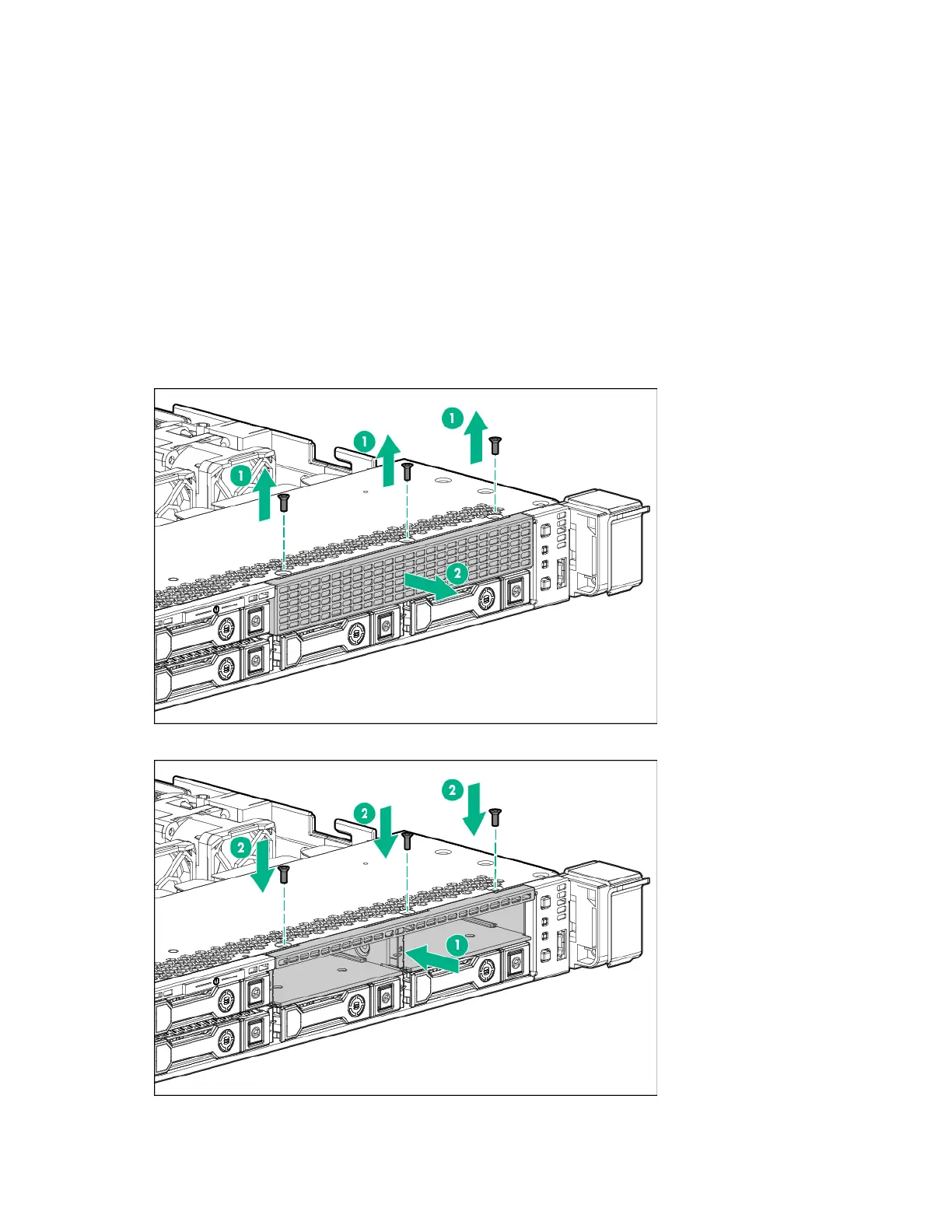

7. Remove the universal media bay blank.
8. Install the drive cage assembly, then tighten the three screws.
9. Remove the primary PCI riser cage ("Remove the PCI riser cage" on page 23).
