Hardware options installation 67
o

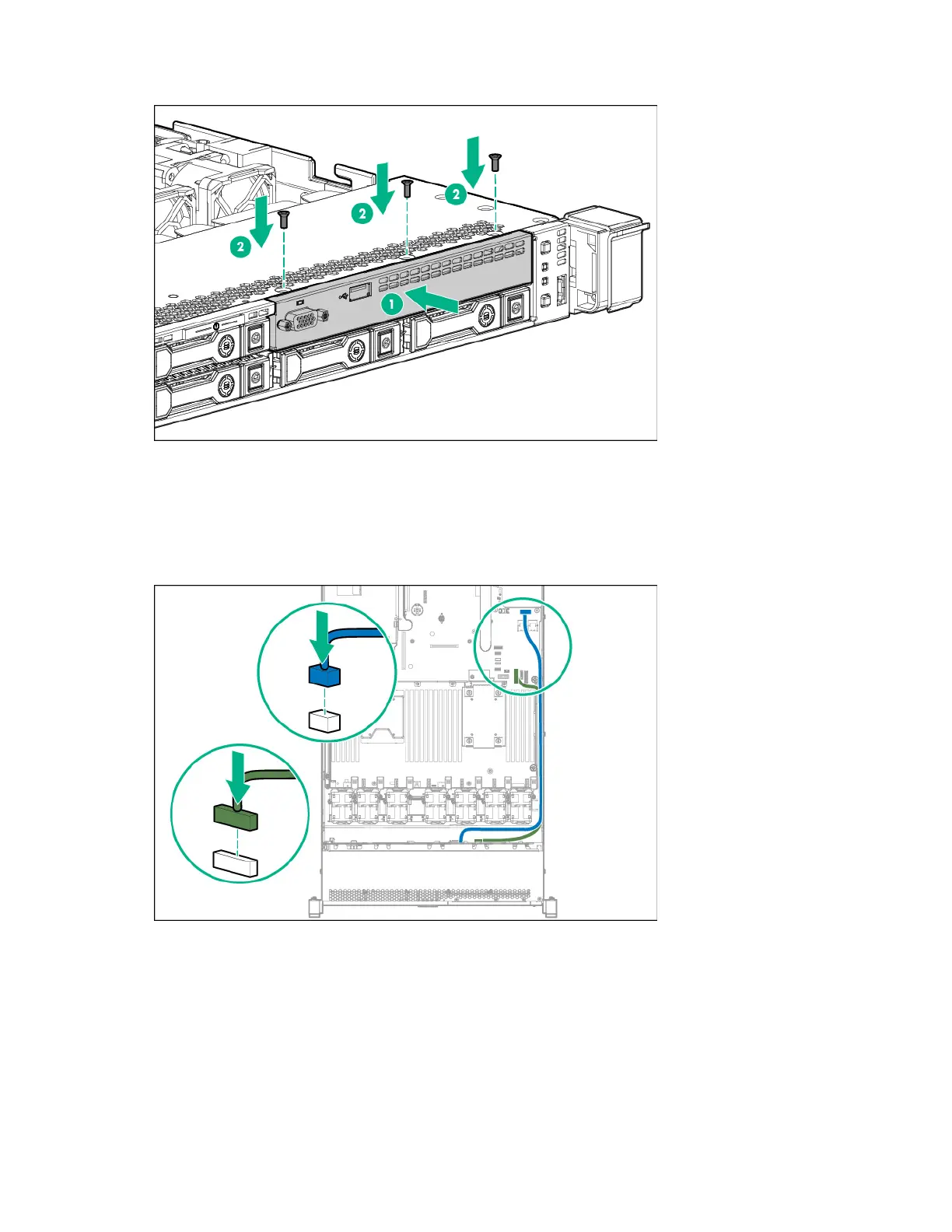

8SFF VGA/USB
7. Route the cables along the edge of the system board, and then connect the cables to the system
board.
o 8SFF DVD-RW/VGA/USB connections
Connect the VGA/USB cable to the Front VGA/USB connector toward the rear of the system
board.
Connect the SATA optical cable to the SATA optical/storage drive connector.
o 8SFF VGA/USB connections
