Hardware options installation 89
4.

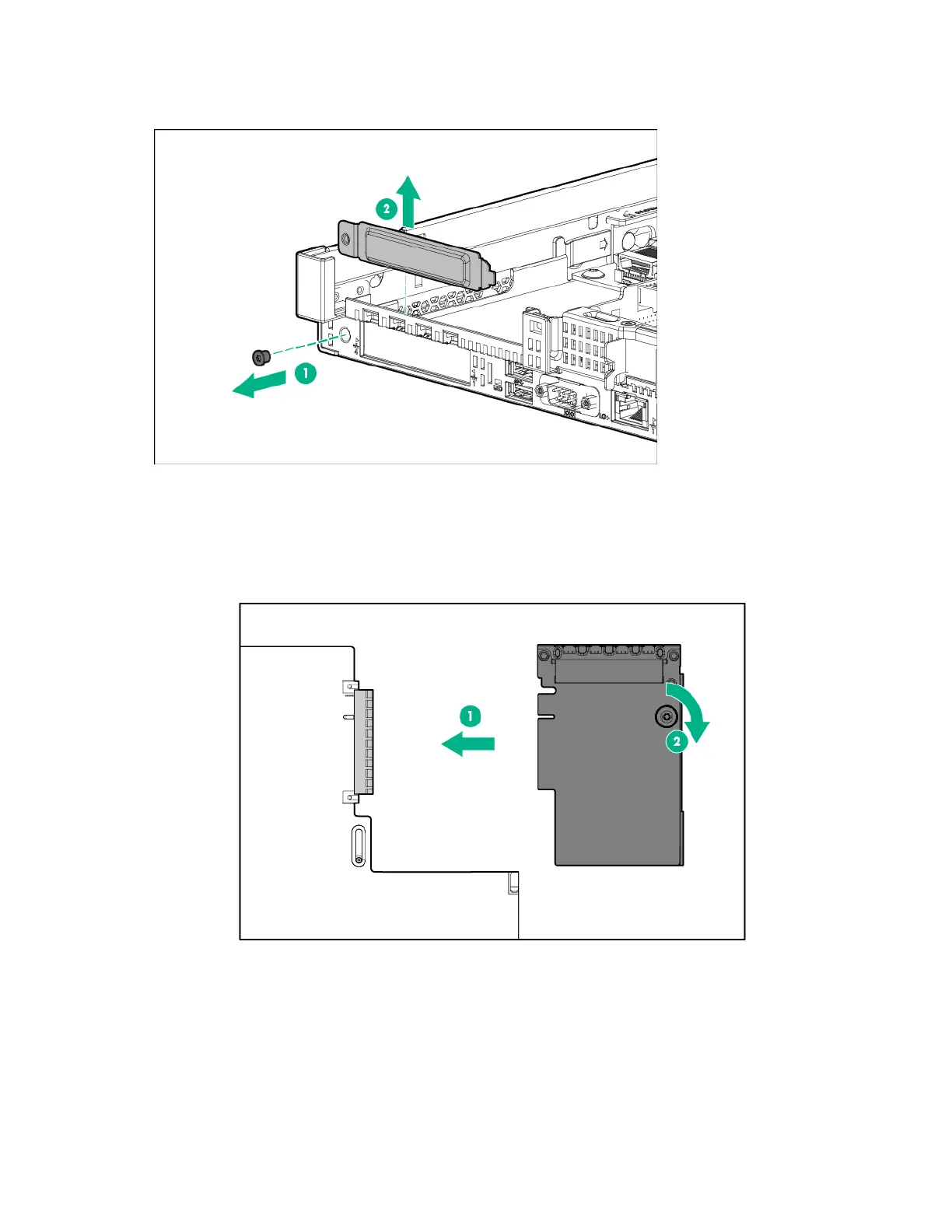

Remove the access panel (on page 22).
5. Remove the FlexibleLOM PCIe blank.
6. Install the component:
a. Firmly seat the FlexibleLOM in the slot.
b. Tighten the thumbscrew.
7. Install the access panel (on page 22).
8. Slide the server into the rack.
9. Connect the LAN segment cables.
10. Connect each power cord to the server.
11. Connect each power cord to the power source.
