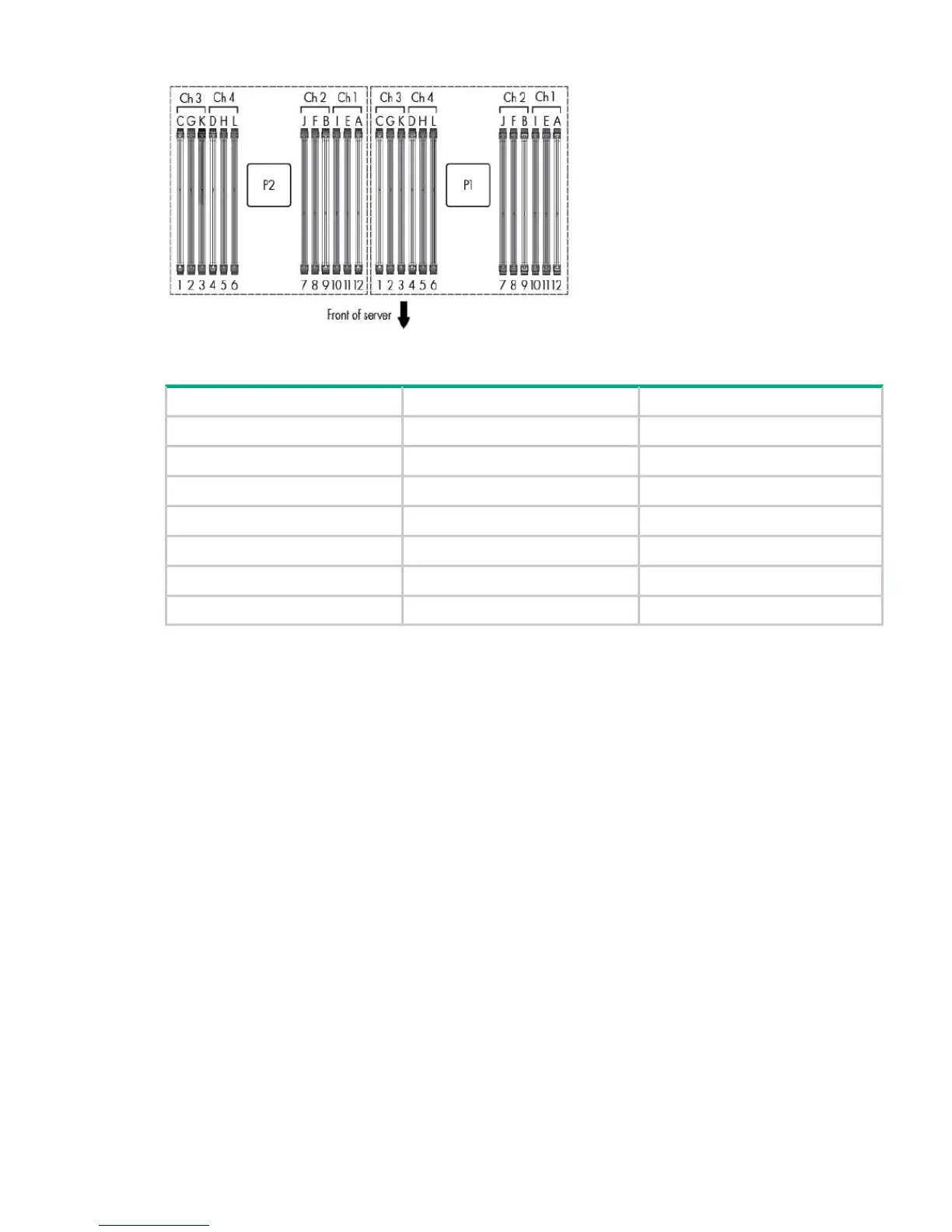

Figure 1 DIMM locations
Table 7 DIMM slot locations
SlotsProcessorModel
12,9,1,4,11,8,2,51HPE StoreOnce 4700 Backup
12,9,1,4,11,8,2,52
12,9,1,4,111HPE StoreOnce 4500 Backup
12,9,1,42
12,9,11HPE StoreOnce 2900 Backup
12,9,12
12,9,11HPE StoreOnce 2700 Backup
The locations of DIMM slots are also shown on the StoreOnce hood label inside the server.
Identifying the Activation Key for the iLO4 license
All products are shipped with paper copies of the iLO4 licenses. If you no longer have these
licenses and the board is still working for the iLO4 GUI connection via its management Ethernet
port, make a note of the license before you remove the motherboard. (If it is not working, contact
HPE Support.)
Before replacing the motherboard, to identify the Activation key:
1. Log on to the iLO4 GUI.
2. Select the Administration Tab.
3. Select Licensing and make a note of the Activation Key.
iLO and BIOS configuration after replacing the motherboard
Configure the RBSU (ROM-Based Setup Utility) settings BEFORE connecting the FC, network,
and SAS cables to the server and BEFORE the system boots into the StoreOnce software, that
is, during the server POST sequence.
Configuring iLO and RBSU settings
After replacing the motherboard, for all products you must:
1. Boot the system. During the POST phase, when prompted, press F8 to perform iLO
configuration, as described in iLO4 settings (page 23). Save the changes and exit.
2. To enter the RBSU (ROM-based Setup Utility) or BIOS Setup to change settings: when the
press F9 prompt appears during the system BIOS boot process, press the F9 key.
Identifying the Activation Key for the iLO4 license 21
